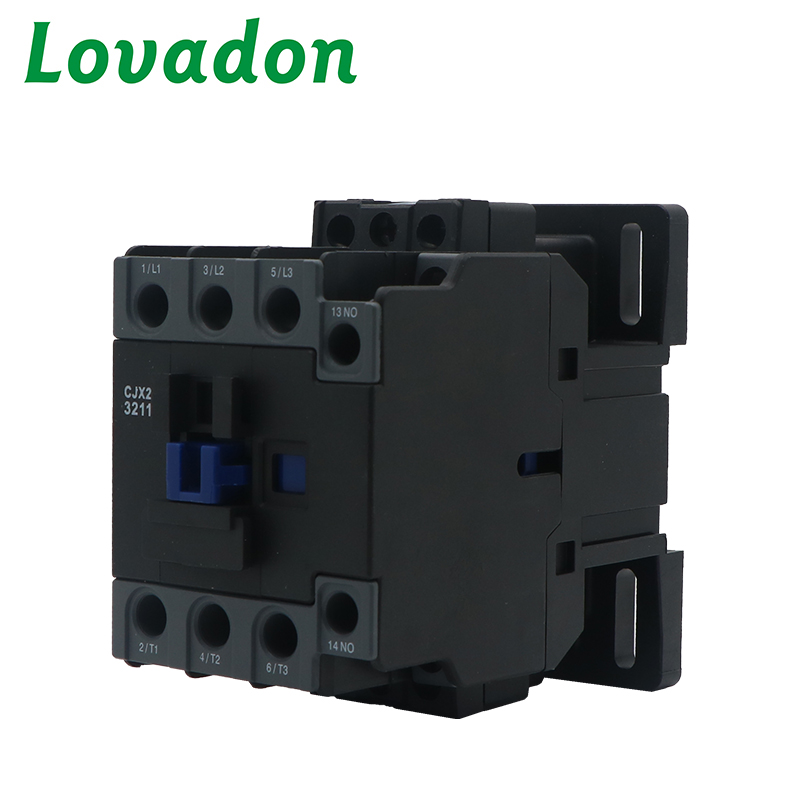

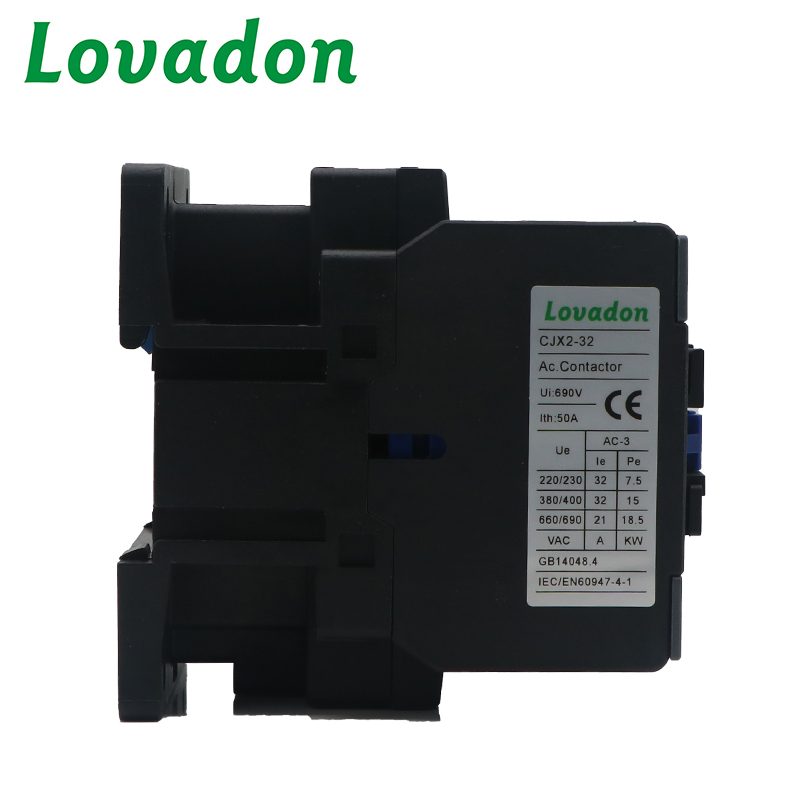

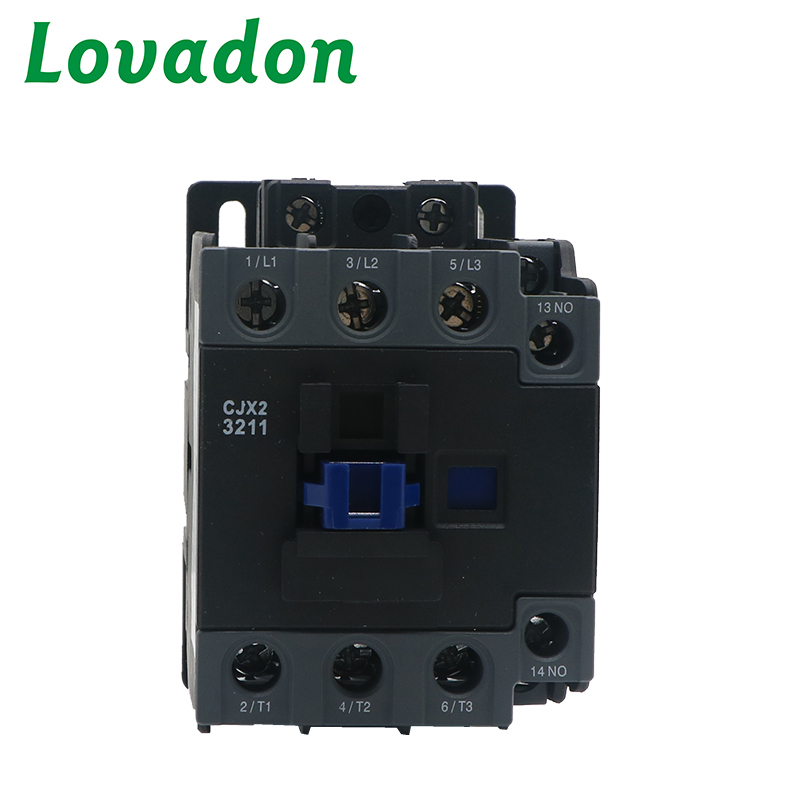

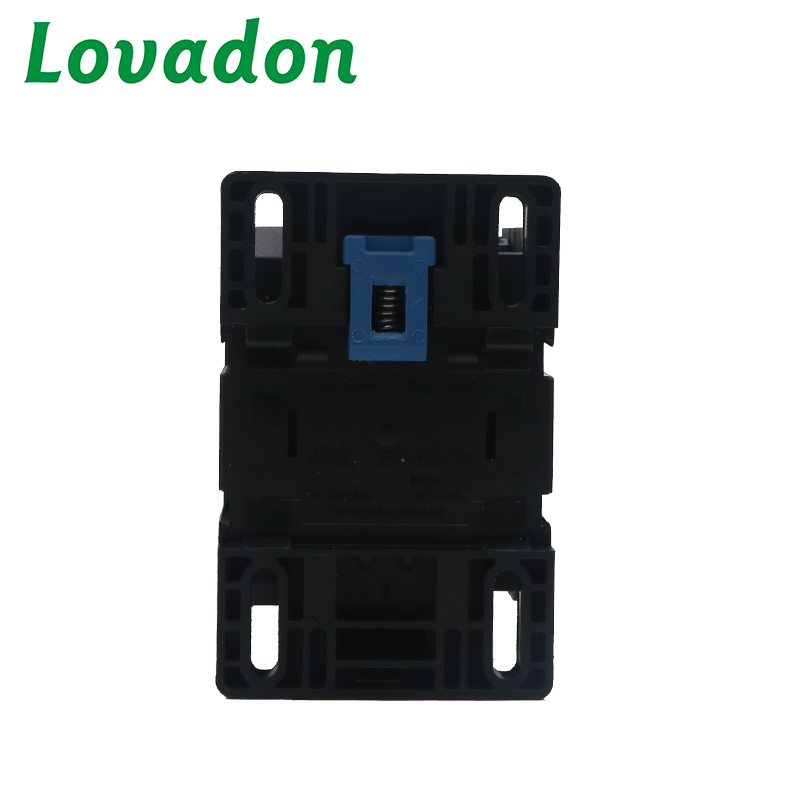

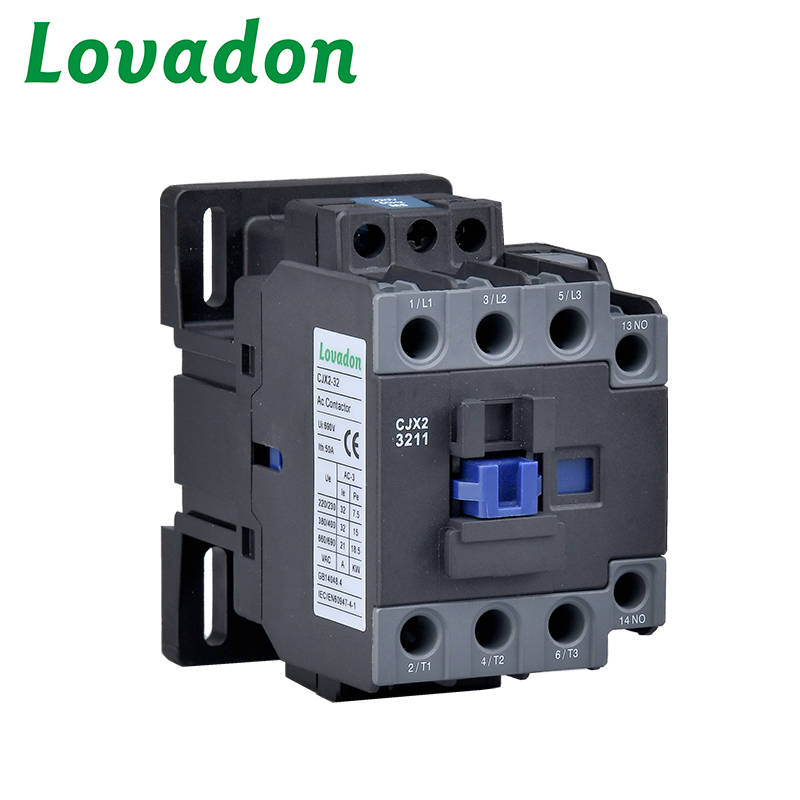

| Model Number |
| CJX2-0911 | CJX2-1211 | CJX2-1811 | CJX2-2511 | CJX2-3211 | CJX2-4011 | CJX2-5011 | CJX2-6511 | CJX2-8011 | CJX2-9511 |
| Main circuit characteristics |
|
|
|
|
|
|
|
|
|
|
|
| Pole number | 3Pole |
| Rated insulation voltage (Ui) | V | 690 |
Conventional thermal current (th)
AC-1 rated working current |
| 20 | 20 | 32 | 40 | 50 | 50 | 60 | 80 | 125 | 125 |
Rated working
current (Ie) | AC-3,380/400V | A | 9 | 12 | 18 | 25 | 32 | 40 | 50 | 65 | 80 | 95 |
| AC-3,660/690V | A | 6.6 | 8.9 | 12 | 18 | 22 | 34 | 39 | 42 | 49 | 49 |
| AC-4,380/400V | A | 3.5 | 5 | 7.7 | 8.5 | 12 | 18.5 | 24 | 28 | 37 | 44 |
| AC-4,660/690V | A | 1.5 | 2 | 3.8 | 4.4 | 7.5 | 9 | 12 | 14 | 17.3 | 21.3 |
| AC-3,220/240V | KW | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 |
Rated working
power(Pe) | AC-3,380/400V | KW | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 |
| AC-3,415/440V | KW | 4 | 5.5 | 9 | 11 | 15 | 22 | 25/30 | 37 | 45 | 45 |
| AC-3,500V | KW | 5.5 | 7.5 | 10 | 15 | 18.5 | 22 | 30 | 37 | 55 | 55 |
| AC-3,660/690V | KW | 5.5 | 7.5 | 10 | 15 | 18.5 | 30 | 33 | 37 | 45 | 45 |
| AC-4,380/400V | KW | 1.5 | 2.2 | 3.3 | 4 | 5.4 | 7.5 | 11 | 15 | 18.5 | 22 |
| AC-4,660/690V | KW | 1.1 | 1.5 | 3 | 3.7 | 5.5 | 7.5 | 10 | 11 | 15 | 18.5 |
| Mechanical lif | 10000
times | 1200 | 1000 | 900 | 650 |
| Electrical life | AC-3 | 10000
times | 110 | 90 | 65 |
| AC-4 | 10000
times | 22 | 22 | 17 | 11 |
Operating

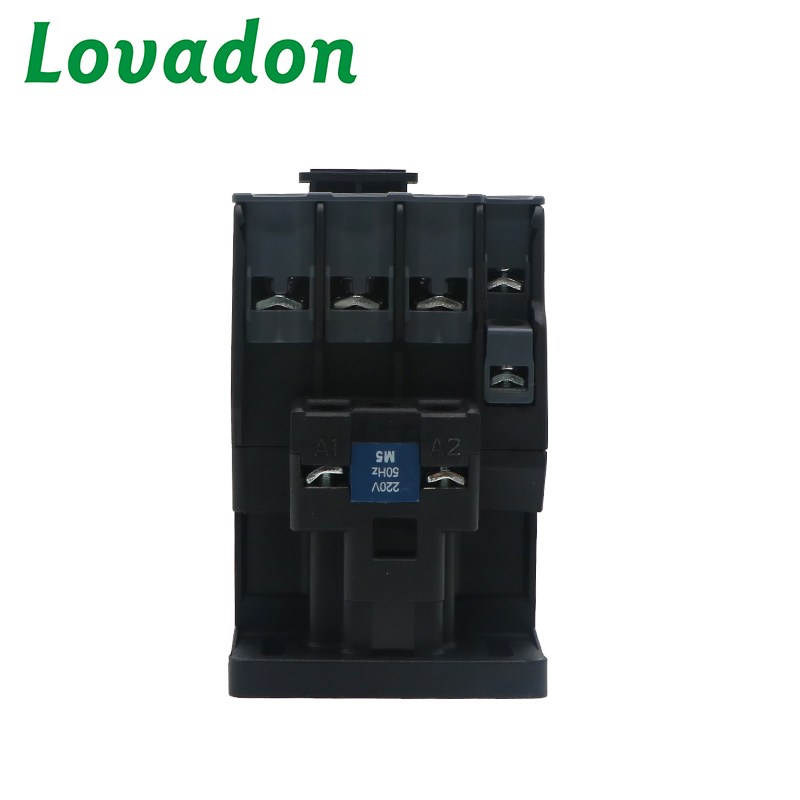

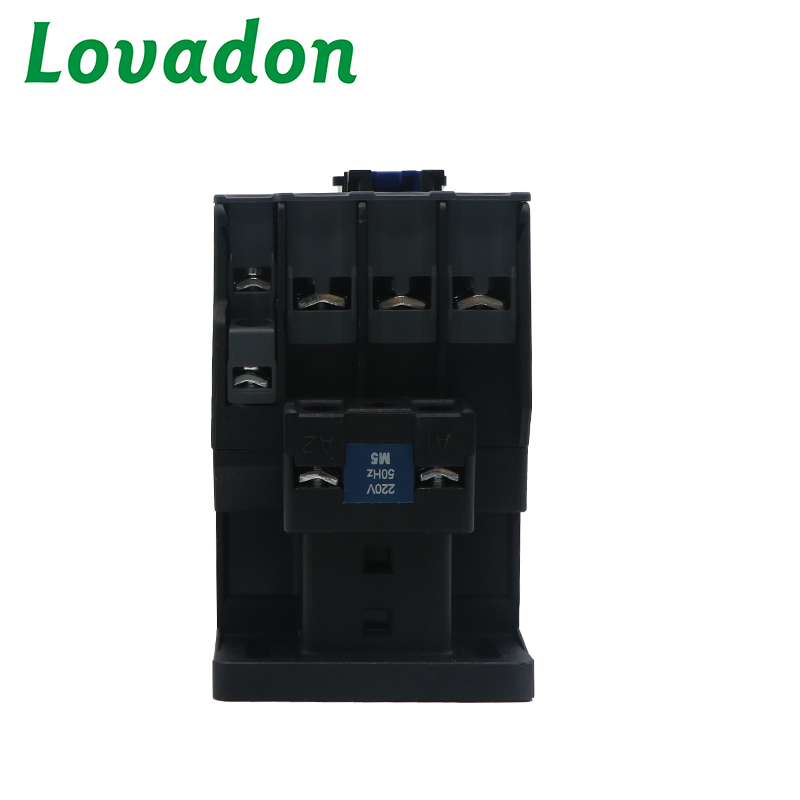

frequency | AC-3 | Times/
hour | 1200 | 600 |
| AC-4 | Times/
hour | 300 | 300 |
| Without terminal blocks | 2 wire | mm² | 1...4 | 1.5... | 2.5...10 | 4...25 |
| Tightening torque | N-m |
| 1.2 | 1.8 | 5 | 9 |
| Coil |
|
| 50/60Hz | V | 24、36、48、110、127、220/230、240、380/400、415、440 |
Allow control
circuit voltage(Us) | Working | V | The installation tilt angle is ±22.5° :85%~110%Us； The installation tilt angle is±5°： 70%~120% |
| Release | V | The installation tilt angle is ±22.5° ,20%~75%US；The installation tilt angle is±5°： 20%~65% |
Coil power
consumption | Actuation | VA | 60 | 70 | 200 | 200 |
| Maintain | VA | 6-9.5 | 6-9.5 | 15-20 | 15-20 |
| Consumption | W | 1-3 | 1-3 | 6-10 | 6-10 |
| Auxiliary contact |
|
| Contact specifications |
| A | 11 |
Conventional thermal
current(th) |
| A | 10 |
Rated operational
voltage(Ue) | AC | V | 380 |
| DC | V | 220 |
| Rated control capacity | AC-15 | VA | 360 |
| DC-13 | W | 33 |
| CERTIFICATE | CE |
