General
LC1-D series AC contactors are suitable for frequency 50/60Hz,rated insulation voltage up to 660V,rated operation current 9~95A under AC-3 duty.It is mainly used for making and breaking electric circuits at a long distance & for frequent starting, stopping & controlling AC Motors.It is used in combination with thermal relay to compose a magnetic motor starter. The products comply with IEC60947-4.

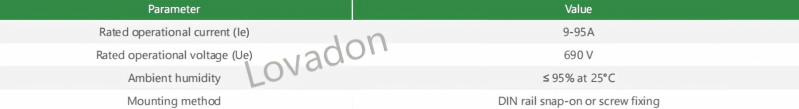

Technical Parameters

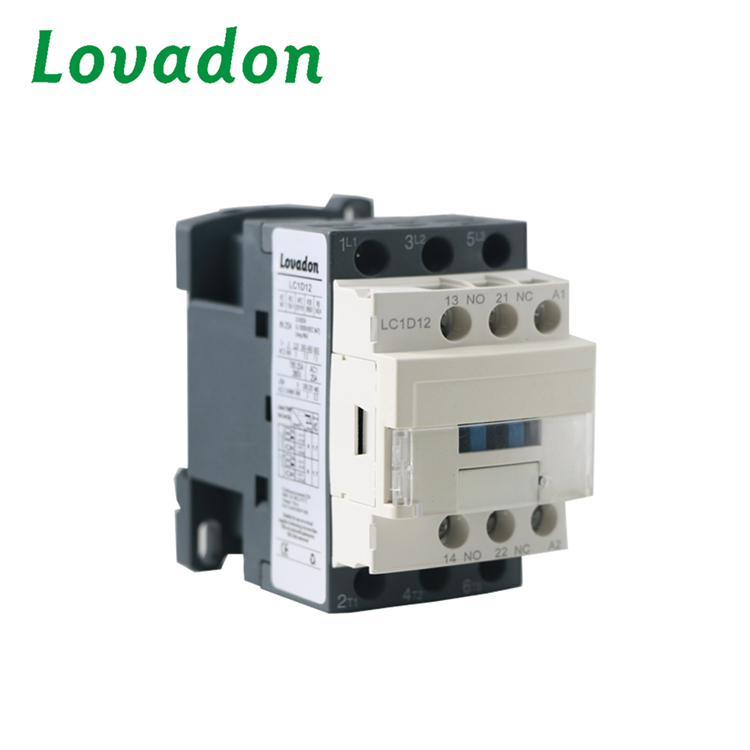

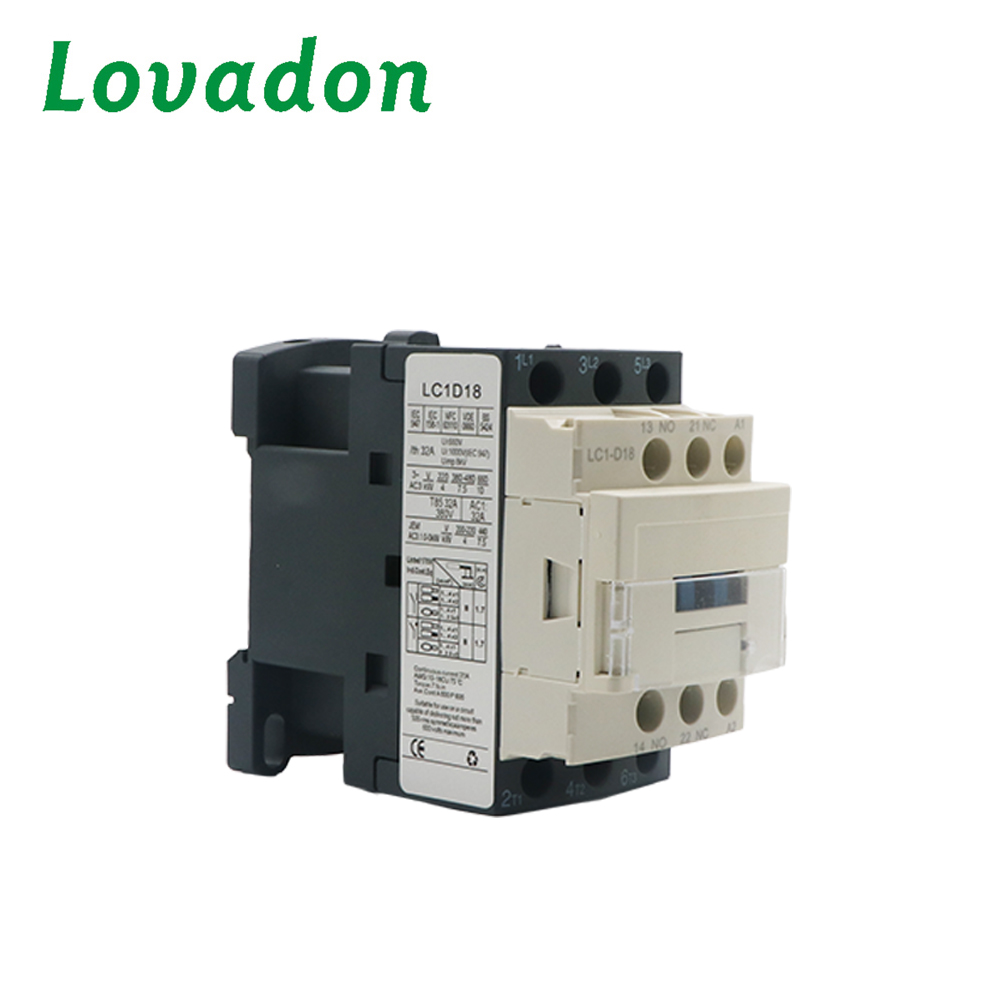

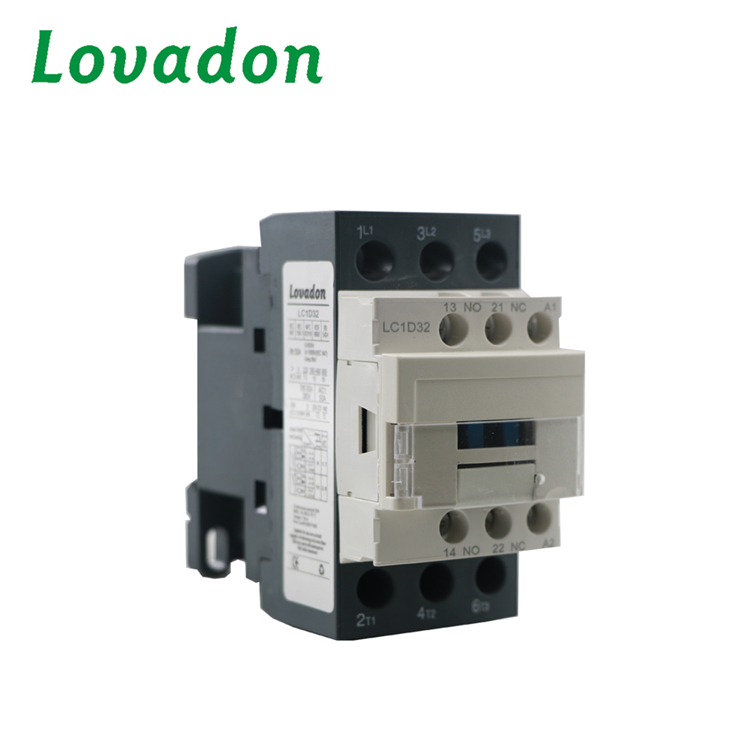

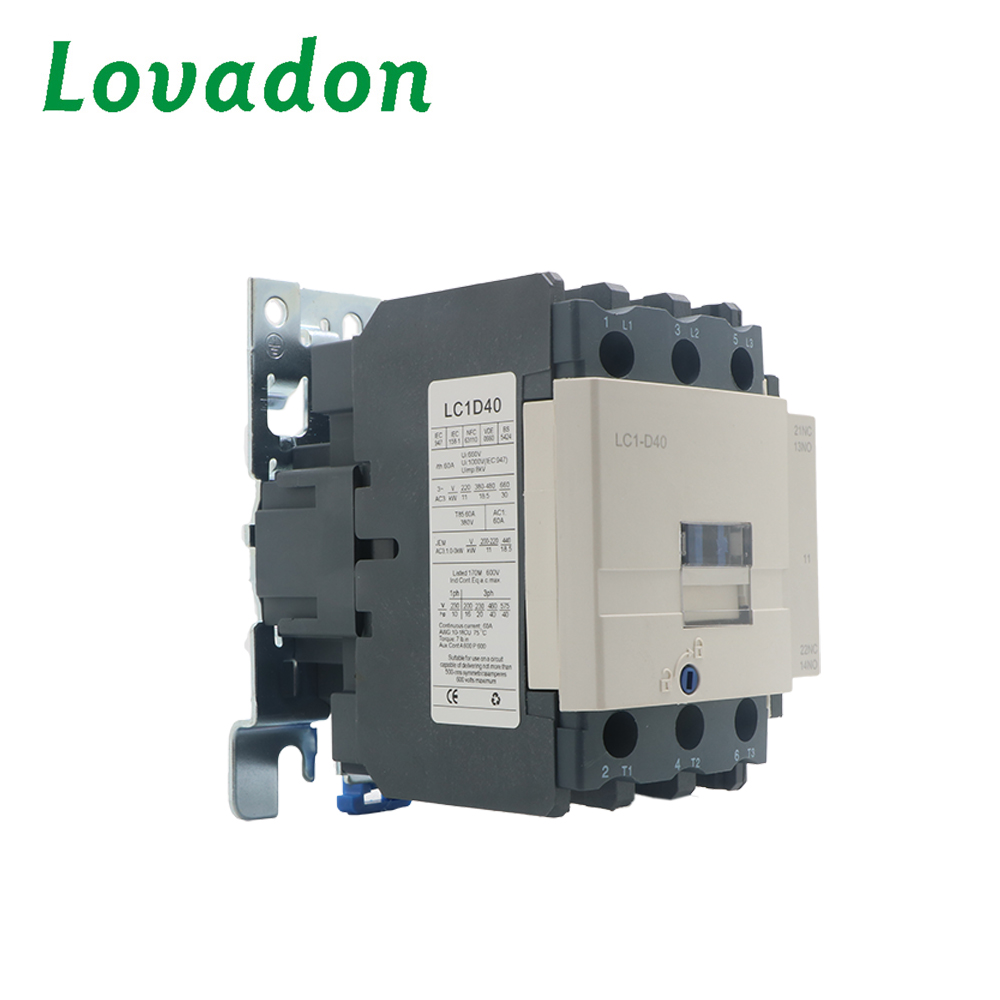

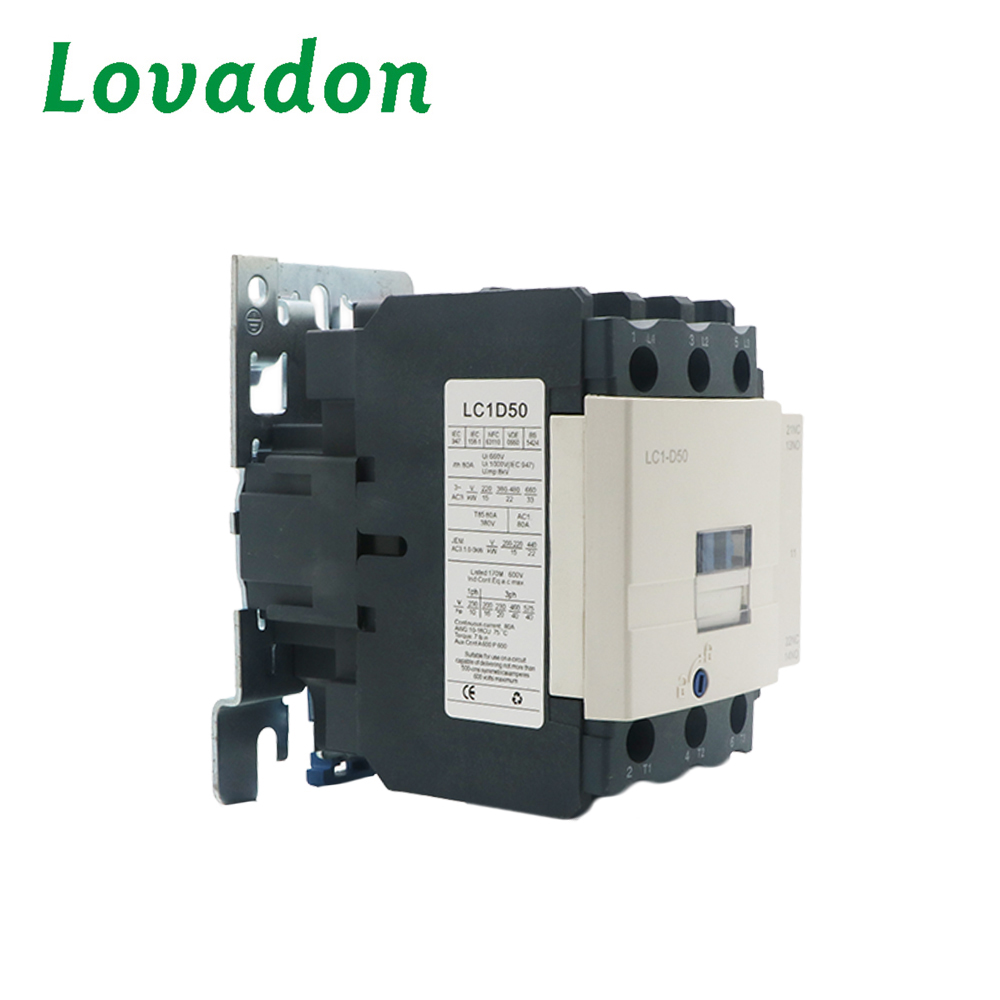

| Type | Thermal Rated Current (A) | Rated Current AC-3 380V(A) | Control Power AC-3(KW) | Rated Insulation Voltage(V) | Aux.Contact |
| 220V | 380V | 415V | 660V |
| LC1-D09 | 20 | 9 | 2.2 | 4 | 4 | 5.5 | 660 | 3P+1NO+1NC |
| LC1-D12 | 20 | 12 | 3 | 5.5 | 5.5 | 7.5 |
| LC1-D18 | 32 | 18 | 4 | 7.5 | 9 | 9 |
| LC1-D25 | 40 | 25 | 5.5 | 11 | 11 | 15 |
| LC1-D32 | 50 | 32 | 7.5 | 15 | 15 | 18.5 |
| LC1-D40 | 60 | 40 | 11 | 18.5 | 22 | 30 |
| LC1-D50 | 80 | 50 | 15 | 22 | 25 | 33 |
| LC1-D65 | 80 | 65 | 18.5 | 30 | 37 | 37 |
| LC1-D80 | 125 | 80 | 22 | 37 | 45 | 45 |
| LC1-D95 | 125 | 95 | 25 | 45 | 45 | 45 |
| LC1-D115 | 200 | 115 | 30 | 55 | 59 | 80 |
| LC1-D150 | 250 | 150 | 40 | 75 | 80 | 100 |
| LC1-D170 | 250 | 170 | 55 | 90 | 100 | 110 |

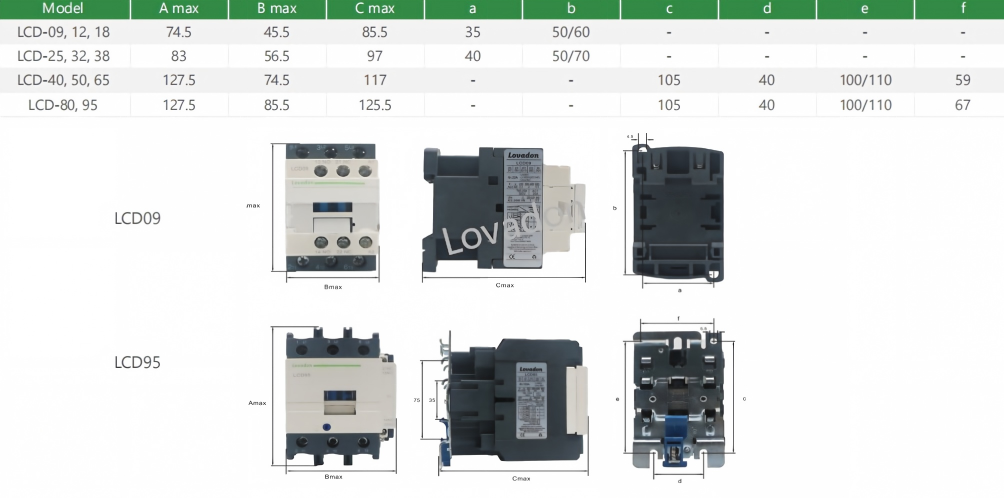

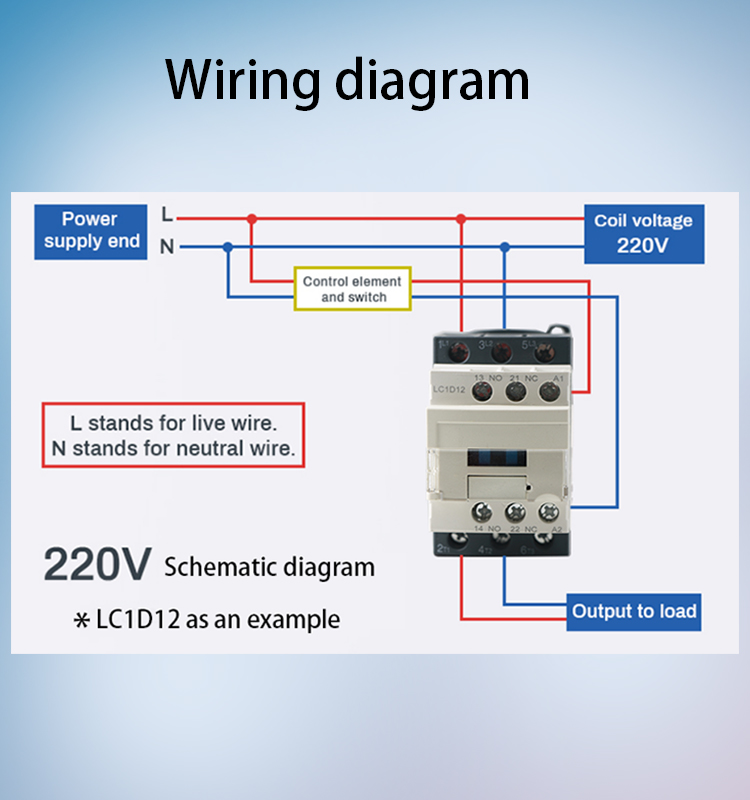

| Note | Install way(LC1D09-32A) The installation of the relays can use two screws and also use the 35mm installation rail | Install way(LC1D40-95A) the installation of the relays can use three screws and also use the 75mm or 35mm installation rail |
| 3P: Three pairs of main contacts |
| NO:one pair of NO auxiliary contacts |
| NC: one pair of NC auxiliary contacts |
