General

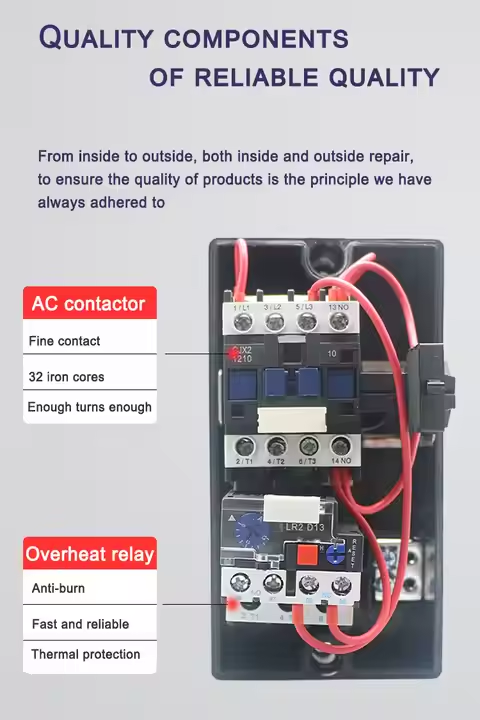

Magnetic starter is composed of steel, steel plate stamping shell, AC contactor, thermal relay and the corresponding wiring structure, should be used with start stop button switch, and the right hand control signal cable connection. When the start button is pressed, the coil of the AC contactor is arranged in the electric magnetic starter, armature drives the contact group closed, connected with electric appliances (usually a motor) power supply, also through the auxiliary
contact self-locking. Press the stop button, the internal AC contactor coil power loss, off contact, cut off electric power and unlock.
According to different control need, magnetic starter can be flexible connection, realize its move, change equals function.The thermal relay overload protection provided by the built-in control of the motor current setting heat relay should be consistent with the motor power needs.
Magnetic starter is starting total pressure directly, using the direct starting the full pressure of the case are allowed in the power grid capacity and load two. Manipulation of advantage is easy to control, simple maintenance, and economic comparison. Mainly used for small power motor starting, the motor should not be greater than 11kw with this method.

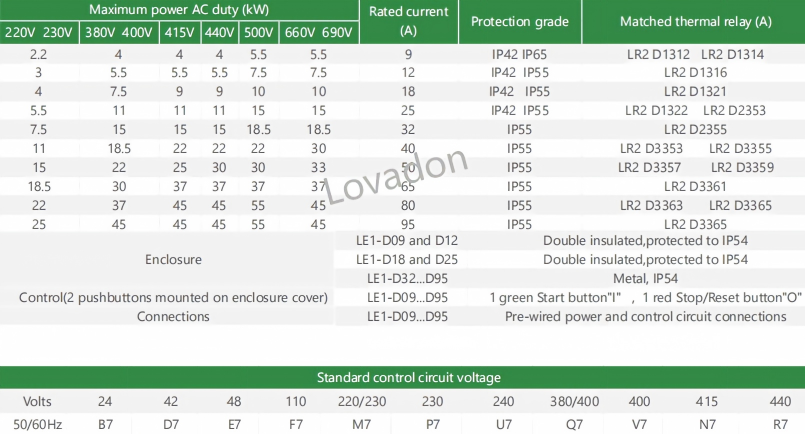

Technical Parameters
| Maximum power AC duty(kW) | Rated current
(A) | Protection grade | Matched thermal relay (A) |
| 220V 230V | 380V 400V | 415V | 440V | 500V | 660V 690V |
|
|
|
| 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | 9 | IP42 IP65 | LR2 D1312 LR2 D1314 |
| 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 12 | IP42 IP55 | LR2 D1316 |
| 4 | 7.5 | 9 | 9 | 10 | 10 | 18 | IP42 IP55 | LR2 D1321 |
| 5.5 | 11 | 11 | 11 | 15 | 15 | 25 | IP42 IP55 | LR2 D1322 LR2 D2353 |
| 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | 32 | IP55 | LR2 D2355 |
| 11 | 18.5 | 22 | 22 | 22 | 30 | 40 | IP55 | LR2 D3353 LR2 D3355 |
| 15 | 22 | 25 | 30 | 30 | 33 | 50 | IP55 | LR2 D3357 LR2 D3359 |
| 18.5 | 30 | 37 | 37 | 37 | 37 | 65 | IP55 | LR2 D3361 |
| 22 | 37 | 45 | 45 | 55 | 45 | 80 | IP55 | LR2 D3363 LR2 D3365 |
| 25 | 45 | 45 | 45 | 55 | 45 | 95 | IP55 | LR2 D3365 |

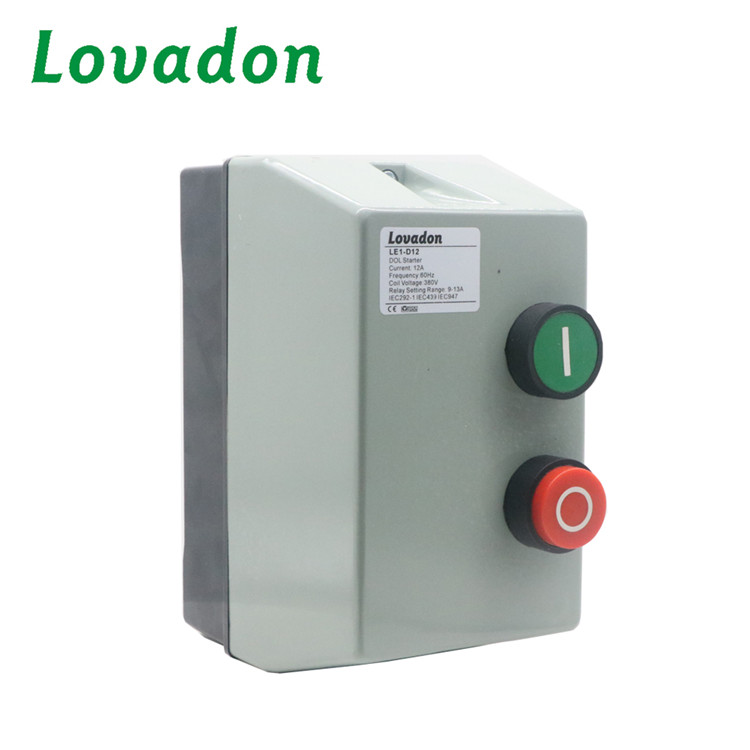

| Enclosure | LE1-D09 and D12 | Double insulated,protected to IP54 |
|
| LE1-D18 and D25 | Double insulated,protected to IP54 |
|

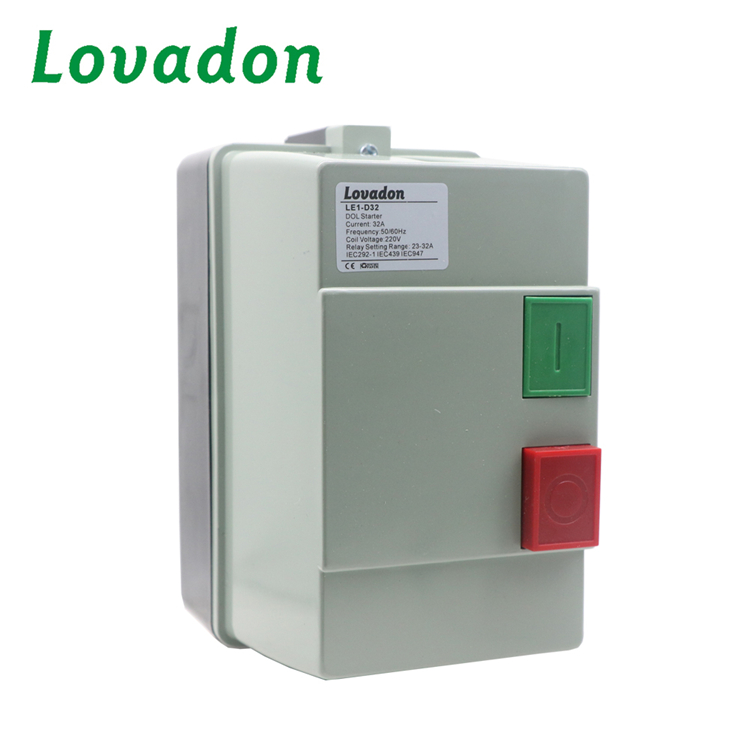

| LE1-D32...D95 | Metal, IP54 |
|

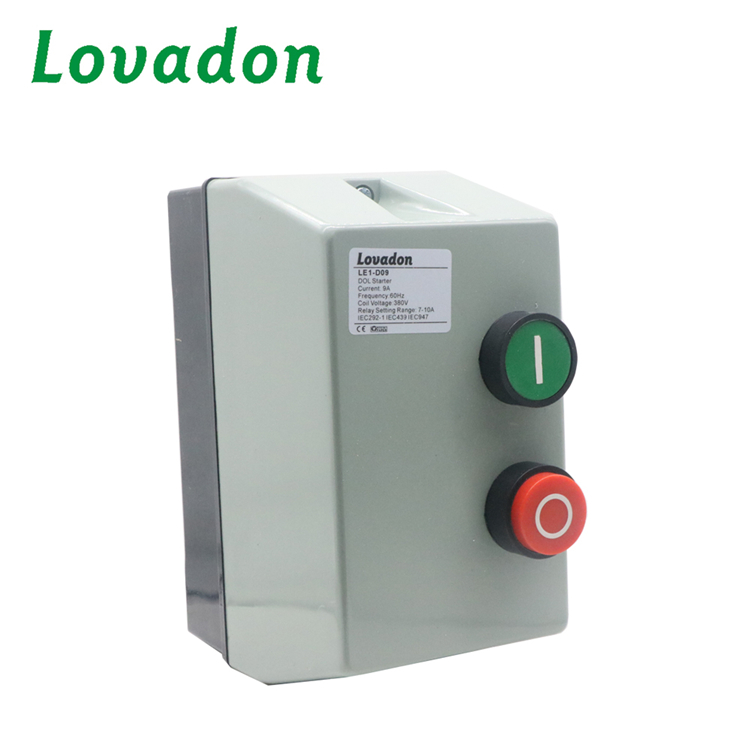

| Control(2 pushbuttons mounted on enclosure cover) | LE1-D09...D95 | 1 green Start button"I" ,
1 red Stop/Reset button"O" |
|
| Connections | LE1-D09...D95 | Pre-wired power and control circuit connections |
|
| Standard control circuit voltage |
| Volts | 24 | 42 | 48 | 110 | 220/230 | 230 | 240 | 380/400 | 400 | 415 | 440 |
| 50/60Hz | B7 | D7 | E7 | F7 | M7 | P7 | U7 | Q7 | V7 | N7 | R7 |
