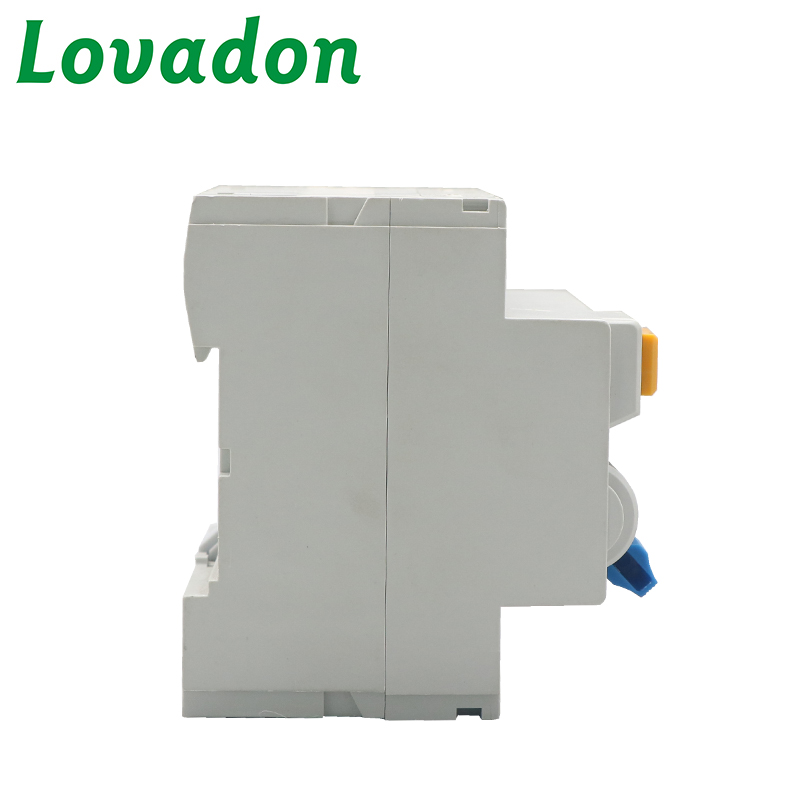

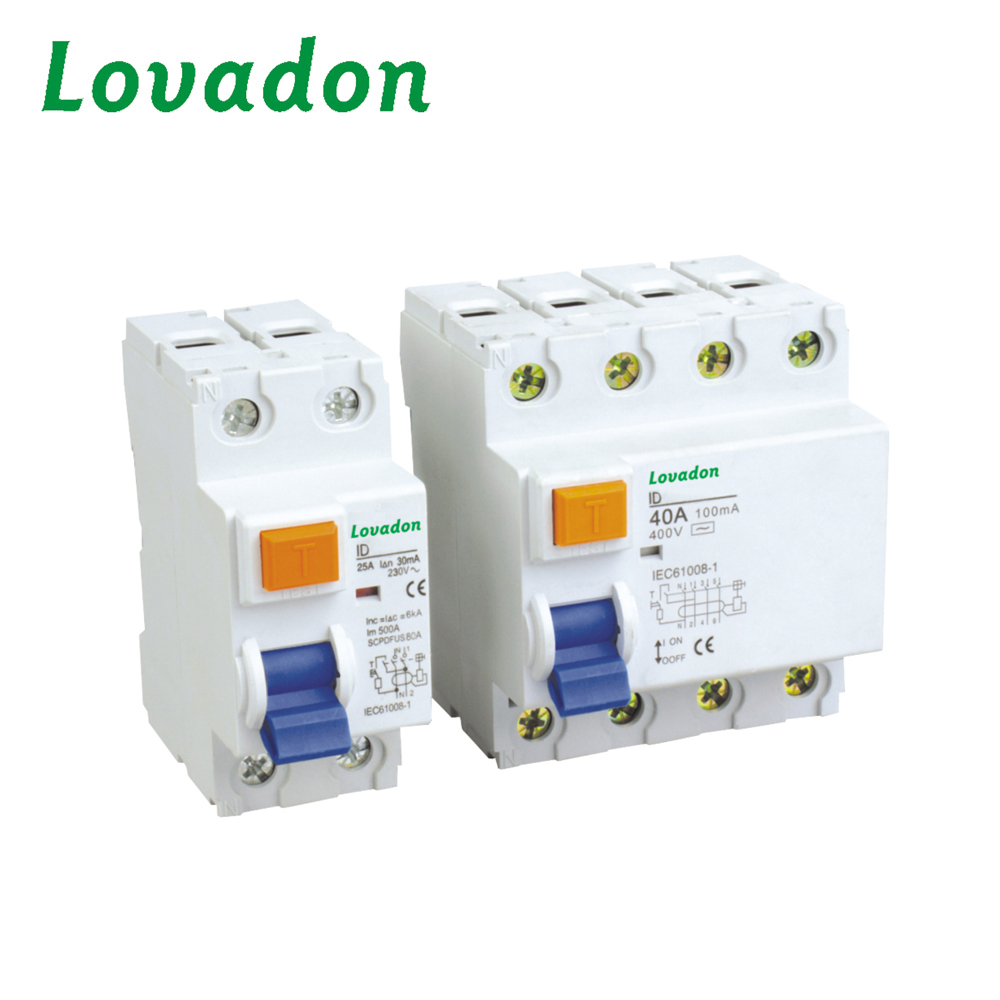

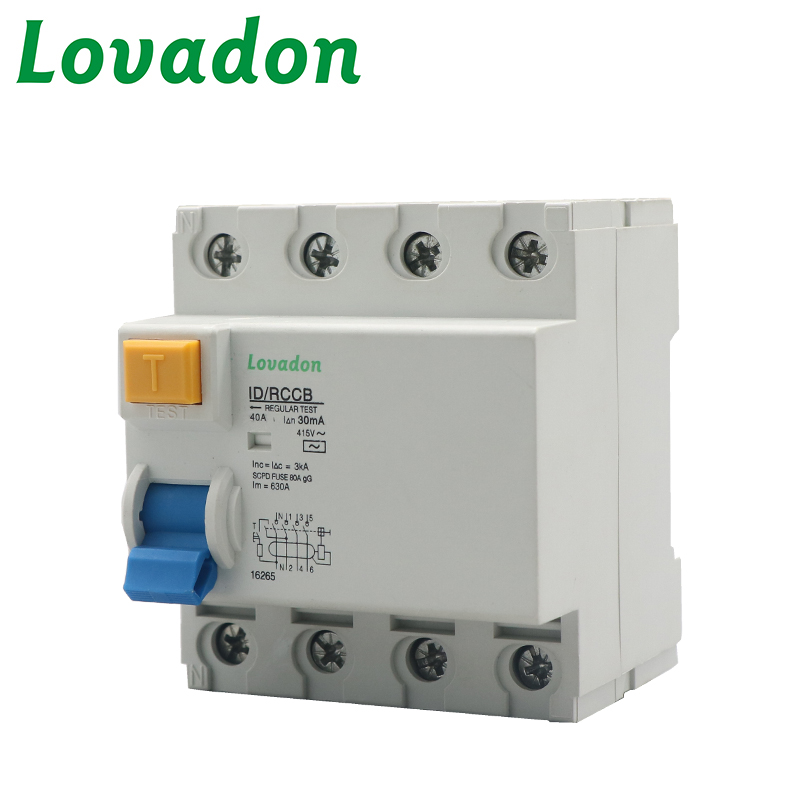

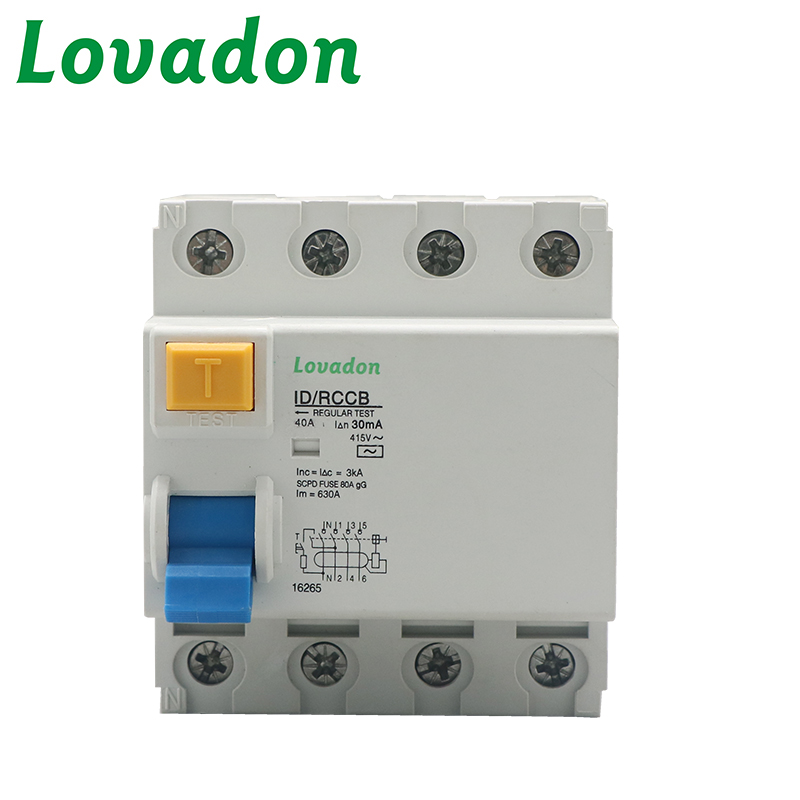

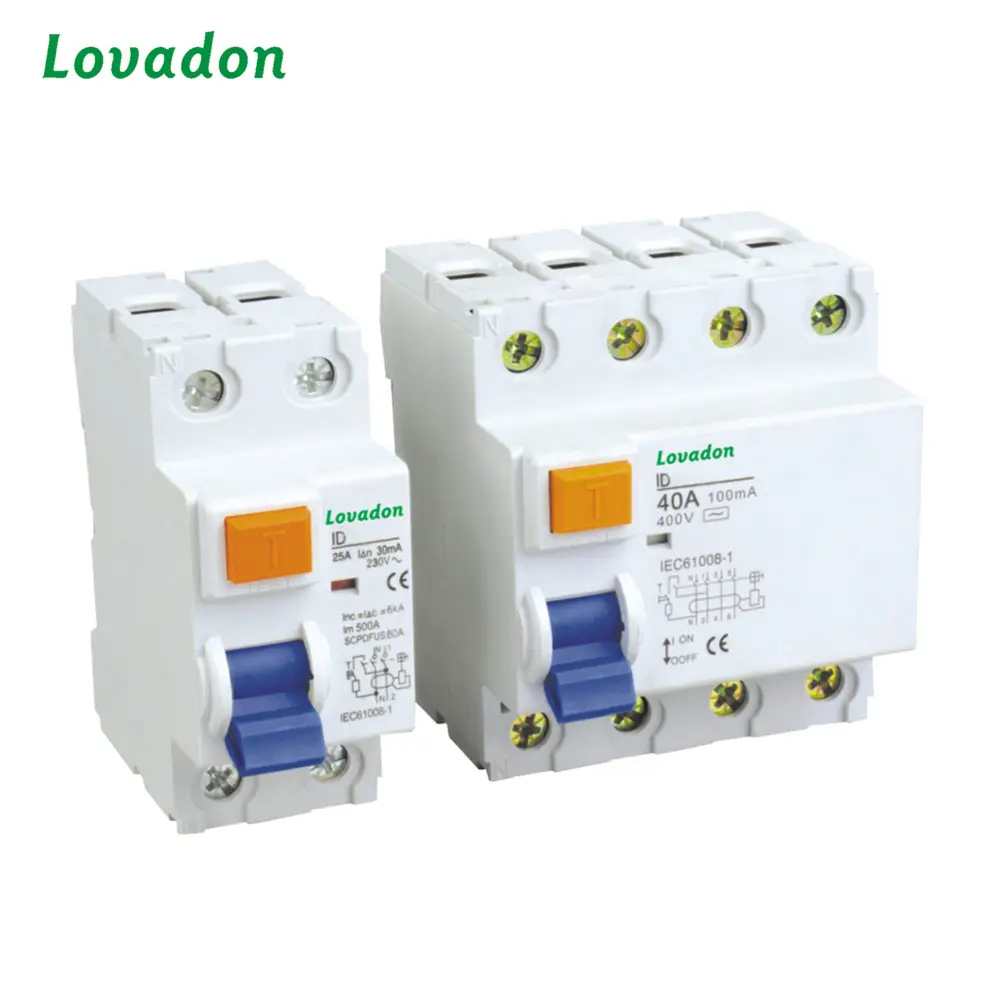

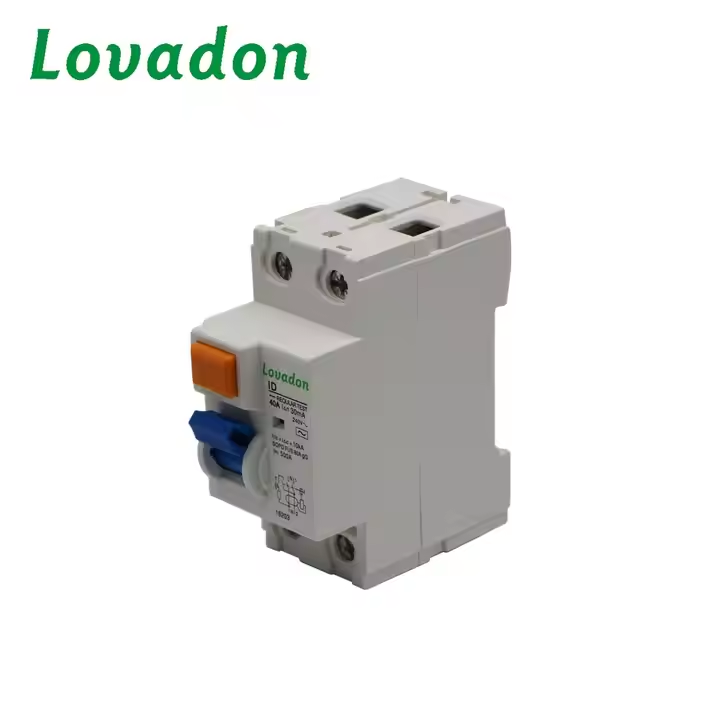

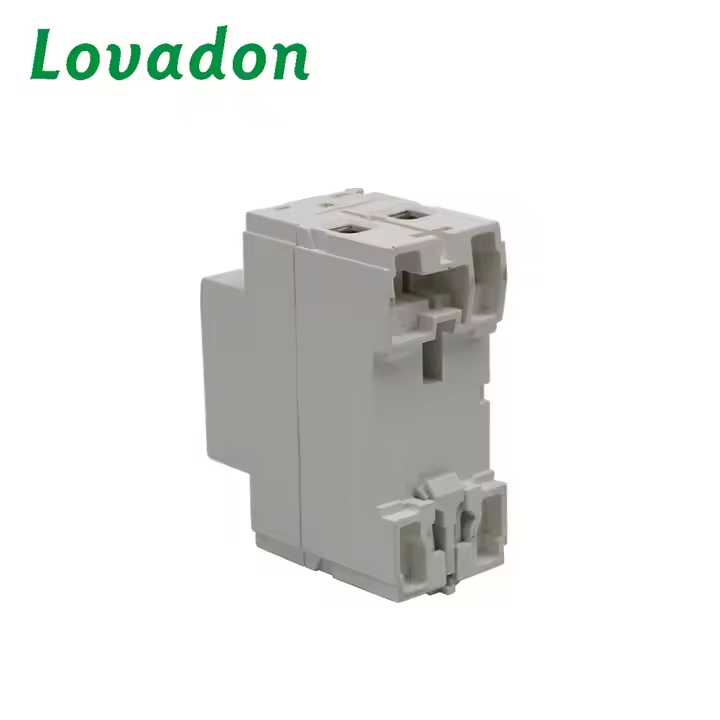

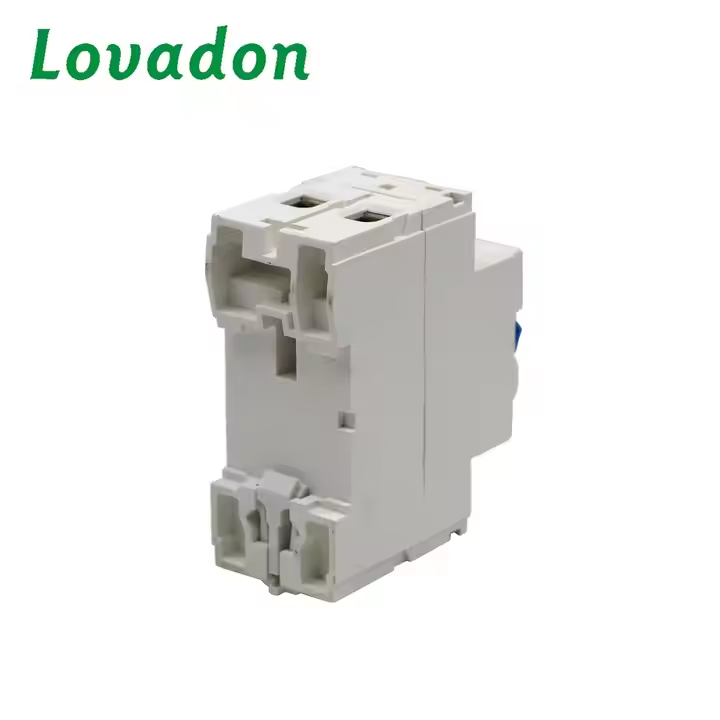

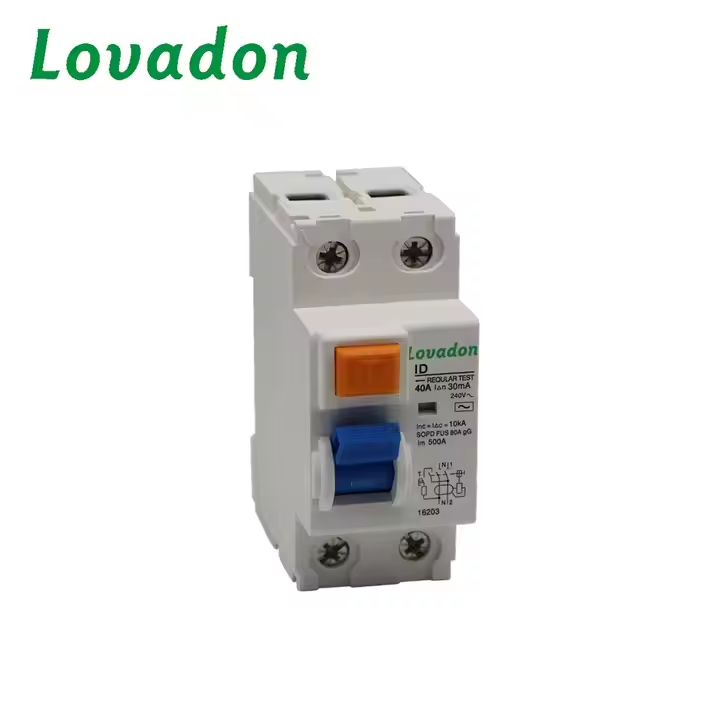

Residual current circuit breaker

ID RCCB

Technical Parameters

StandardIEC61008-1
Electrical fcaturesType(wave form of the earth leakage sensed)
AC,A
Mechanical featuresRated current InA25,40,63
PolesP2,4
Rated voltage UeV230/400
Rated sensitivity I△nA0.03,0.1,0.3,0.5
Insulation voltage UiV500
Rated residual making and

breaking capacity I△mA500(In=25A/40A)
630(In=63A)

Short-circuit current I△cA6000/10000
SCPD fuseA10000
Break time under I△ns≤0.1
Rated frequencyHz50/60
Rated impulse withstand voltage(1.2/50)UimpV6000
Dielectric test voltage at ind Freq for 1 minkV2.5
Pollution degree
2
Electrical lifet6000
MechanicaI Iifet20000
Fault current indicator
Yes
Protection degree
IP20
Ambient temperature

(with daily average≤ 35℃ )-5~+40
