General
GLD12 is the introduction of foreign advanced technology to develop the most secure and reliable performance, small size, load break switches are suitable for ventilation air conditioning systems and water pumps for industrial equipment switches and used as insulation, safe isolation distribution switch, the equivalent of foreign KG20 -KG100 type load breaker switch.
Main Features
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
Technical Parameters
| Model | Outside dimensions(mm) | Installation dimension(mm) |
| P | N | M | C | A1 | A2 |
| GLD12-16 | 100 | 80 | 65 | 35 | 60 | 90 |
| GLD12-20 | 125 | 100 | 85 | 35 | 60 | 115 |
| GLD12-25 | 125 | 100 | 85 | 35 | 60 | 115 |
| GLD12-32 | 175 | 114 | 100 | 35 | 60 | 165 |
| GLD12-40 | 175 | 114 | 100 | 35 | 60 | 165 |
| GLD12-63 | 240 | 160 | 120 | 45 | 142 | 193 |
| GLD12-100 | 240 | 160 | 120 | 45 | 142 | 193 |

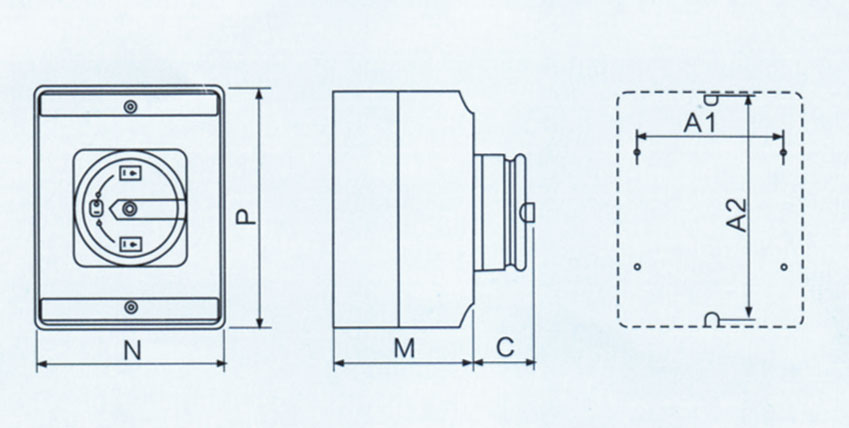

Dimensional drawing
