General
The meter is designed to measure single phase two wire AC active energy like residential,
utility and industrial application. It is a long life meter with the advantage of high stability, high over load capability, low power loss and small volume.
Basic Function
●LCD display 5+1
●Bi-directional total active energy measurement, reverse active energy measure in the total active energy
●Pulse LED indicates working of meter, Passive pulse output with optical coupling isolation
●Energy data can store in memory chip more than 15 years after power off
●LCD with backlight and keypad ,resettable interval energy can be reset to zero by keypad in anytime(optional function)
●35mm din rail installation

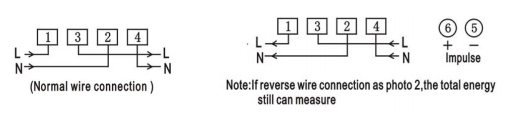

Wire connection

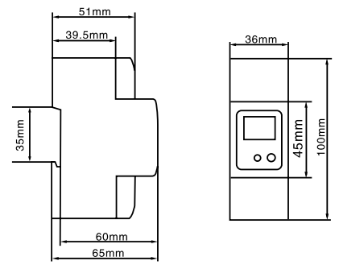

Outline dimension
