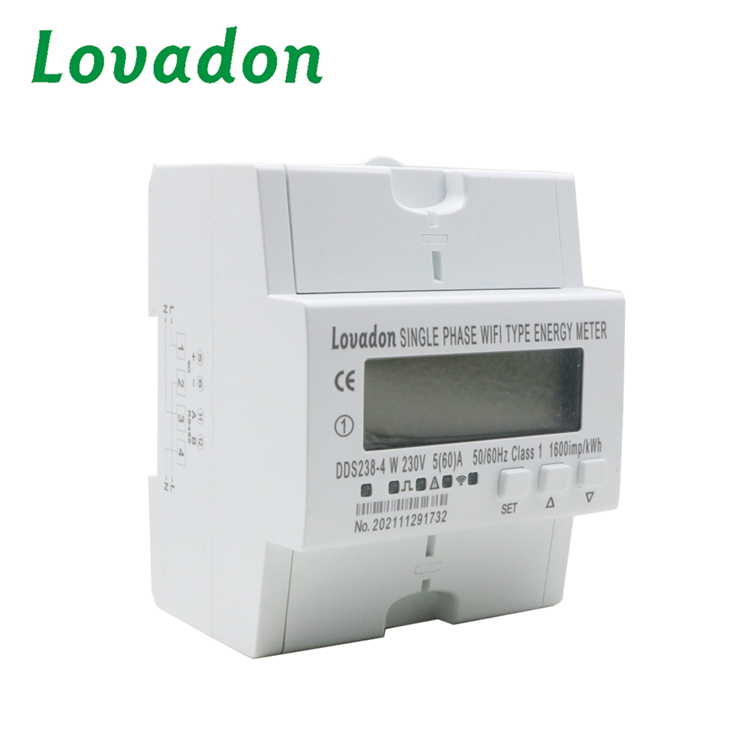

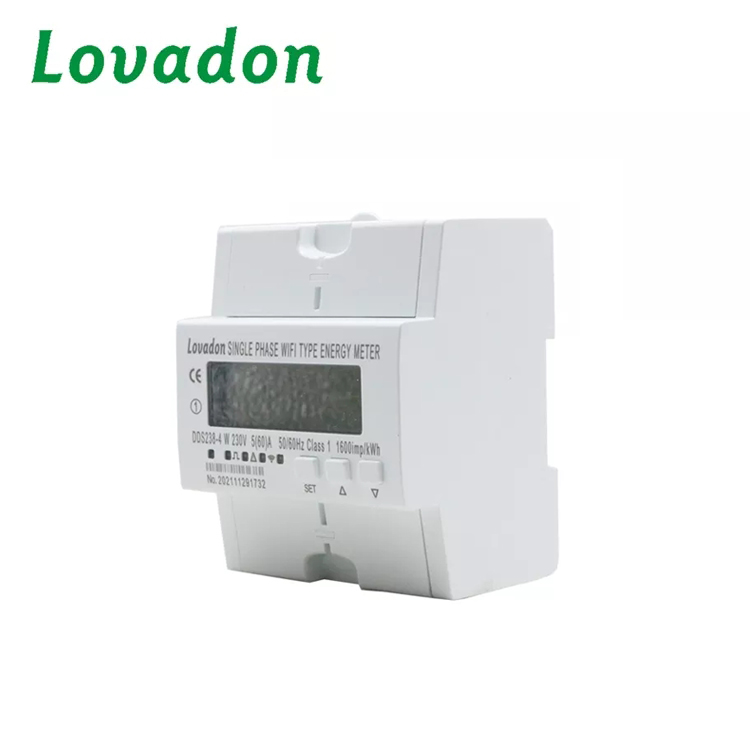

General
The meter is designed to measure single phase two wire AC active energy and variable parameter like residential, utility and industrial application. It has remote read communication port RS485 and WIFI. It is a long life meter with the advantage of high stability, high over load capability, low power loss and small volume.
Basic Function

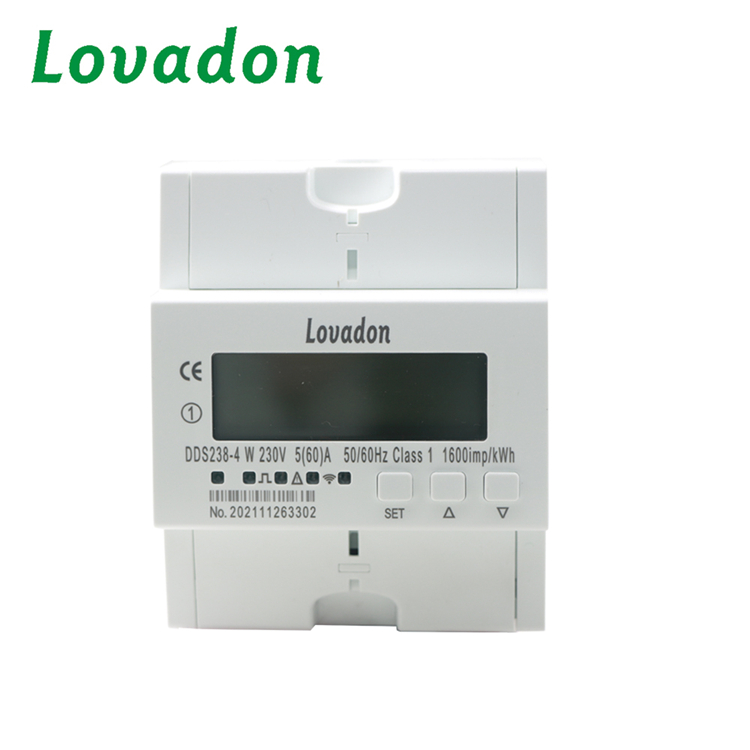

LCD display, touch button for LCD display step by step
Bi-directional total active energy, reverse active energy measure in the total active energy
The meter also display real voltage, current, active power, reactive power , power factor, frequency, import active energy, export active energy, resettable interval energy
Overvoltage protection, overload protection
Timing and delay control by APP
Prepayment function with APP which meter will cut off when balance is zero
RS485 communication port, MODBUS-RTU protocol
WIFI communication, can read and remote control by mobile phone APP
Pulse LED indicates working of meter, Pulse output with optical coupling isolation
Energy data can store in memory chip more than 15 years after power off
Select outer WIFI antenna (optional function)

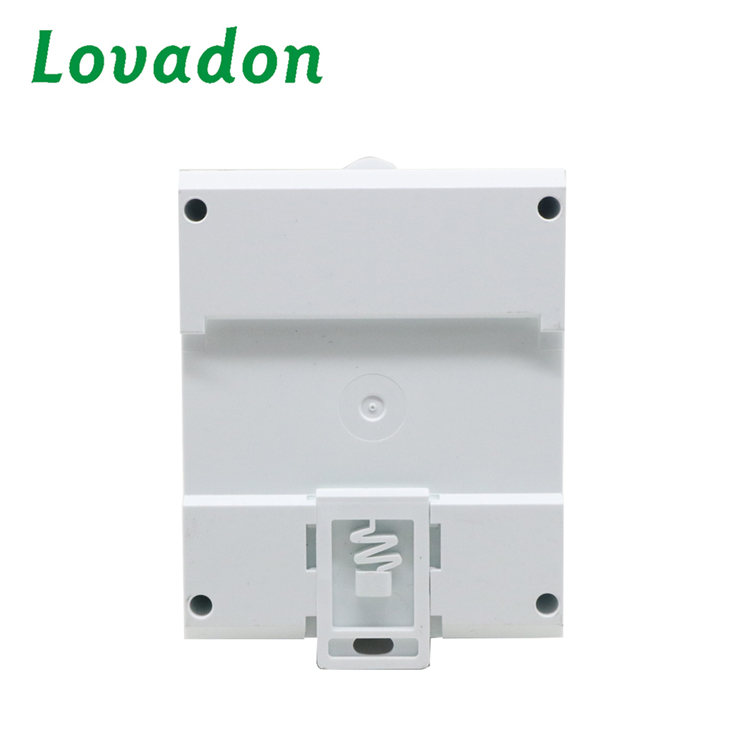

35mm din rail installation, bottom type wire connection
Technical Parameters
| DDS238-4 W(D1406) |
| Rate voltage AC | 110V,120V,220V,230,240V (0.8~1.2Un) |
| Rate Current /Frequency | 5(60)A, 10(100)A / 50Hz or 60Hz±10% |
| Communication port | RS485 port, baud rate 1200~9600 bps, default is 9600bps,address 1~247, None parity, stop bits 1, data bits 8. |
| Connection mode | Direct type | Accuracy class | 1% or 0.5% |
| Power consumption | <1W/10VA | Start current | 0.004Ib |
| AC voltage withstand | 4000V/25mA for 60s | Over current withstand | 30Imax for 0.01s |
| IP grade | IP20 | Executive standard | IEC62053-21 DIN 43880 |
| Work temperature | ‘-25℃ ~70℃ | Pulse output | Passive pulse, 80±5 ms |
| DDS238-4 W(D1407) |
| Rate voltage AC | 110V~270V (0.8~1.2Un) |
| Rate Current / Frequency | 5(60)A, 10(100)A / 50Hz or 60Hz±10% |
| WIFI | 802.11b/g/n |
| Communication port | RS485 port, baud rate 1200~9600 bps, default is 9600bps,address 1~247, None parity, stop bits 1, data bits 8. |
| Connection mode | <1W/10VA | Start current | 0.004Ib |
| AC voltage withstand | 4000V/25mA for 60s | Over current withstand | 30Imax for 0.01s |
| IP grade | IP20 | Executive standard | IEC62053-21 DIN 43880 |
| Work temperature | ‘-25℃ ~70℃ | Pulse output | Passive pulse, 80±5 ms |

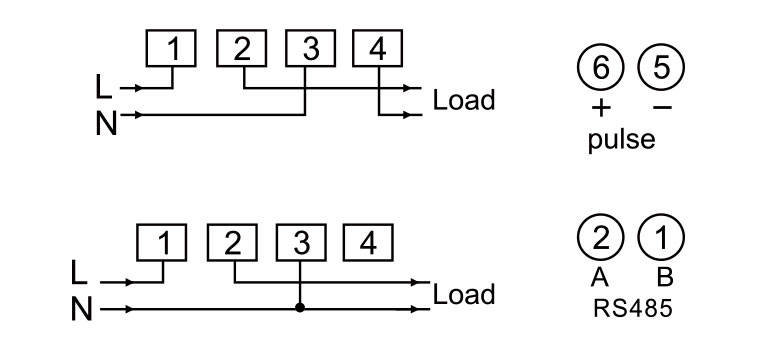

DDS238-4 W (D1406) electric current process

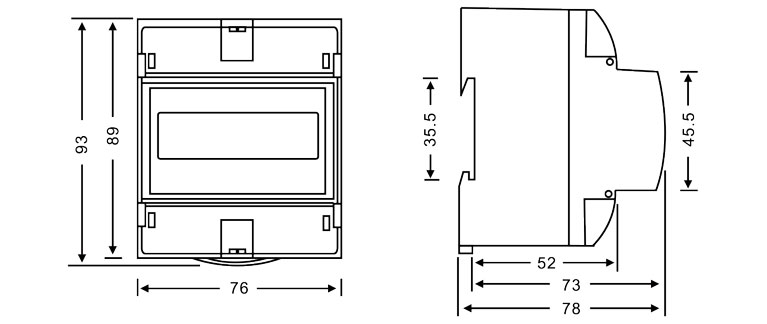

DDS238-4 W (D1406) drawing

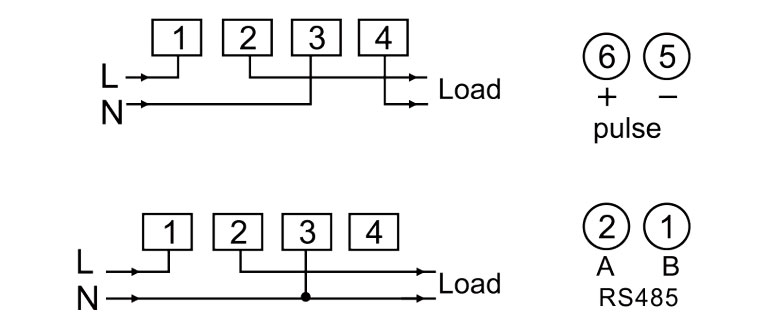

DDS238-4 W (D1407) electric current process

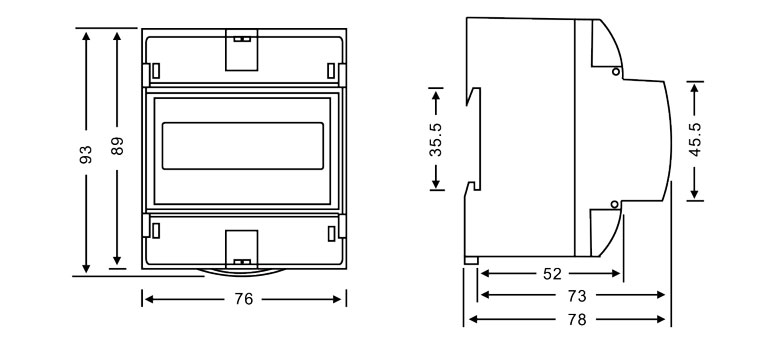

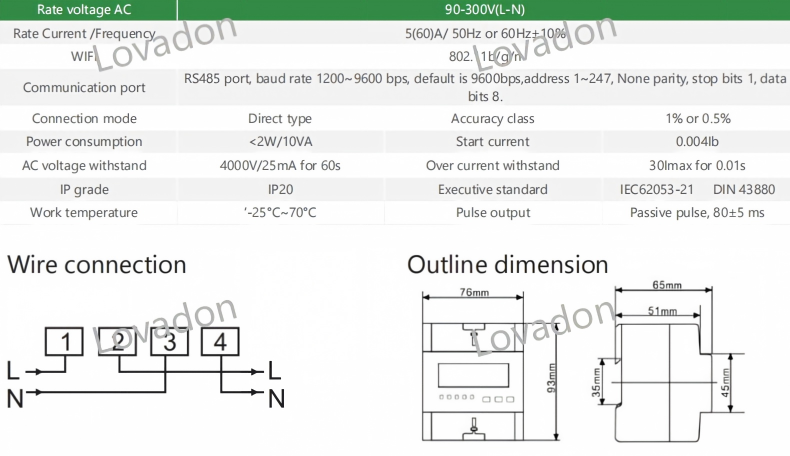

DDS238-4 W (D1407) drawing
