LHR17 Fuse disconnector vga splitter switch box

LHR17series fuse switch-disconnector is a new product, it's rated insulation voltge up to 800V,rated operational voltage upto 690V,rated operational current up to630A,rated frequency50/60Hz,The standard is according to IEC60947-3.Technical ParametersRated thermal current(A)160250400630Rated insulation voltage(V)800Rated current(A)690V AC20160250400630400V AC21160250400630400V AC22160250400630690V AC20160250400630690V AC2110020031542···

Request A Quick Quote

Product Details

General

Technical Parameters

Rated thermal current(A)		160	250	400	630
Rated insulation voltage(V)		800
Rated current(A)	690V AC20	160	250	400	630
	400V AC21	160	250	400	630
	400V AC22	160	250	400	630
	690V AC20	160	250	400	630
	690V AC21	100	200	315	425
	690V AC22	100	160	315	315
Operating force		≤250	≤350	≤350	≤450
Matched fuse	Size	NT00	NT1	NT2	NT3
	Rated current of matched fuse in 400V (breaking capacity)	20,25,32,35,40,50,63,80,100,125,160(≥100kA)	80,100,125,160,200, 224,250(≥100kA)	125,160,200,224,250, 300,315,355,400(≥100kA)	315,355,400,425,500, 630(≥100kA)
	Rated current of matched fuse in 690V (breaking capacity)	20,25,32,35,40,50, 63,80,100(≥50kA)	80,100,125,160,200 (≥50kA)	123,160,200,224,250,300,315(≥50kA)	315,355,400,425 (≥50kA)

Dimensions table

Type	A	B	C	D	E	F	G	H	I	J	K	L	<l>
LHR17-160	123	106	186	215	90	66°	160	86	74	25	9.5	6.5	-
LHR17-250	196	184	266	240	118	70°	230	125	114	50	25	9	-
LHR17-400	200	208	290	330	135	70°	260	135	140	50	21	9	-
LHR17-630	260	250	330	390	145	72°	295	155	150	50	-	-	9

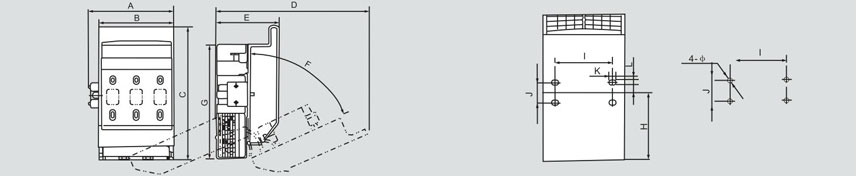

Dimensional drawing
