General
HGLZ-63A~3150A is suitable for the changeover of two low-voltage circuits or the conversion or safety isolation of two load devices
▲Operating mode:

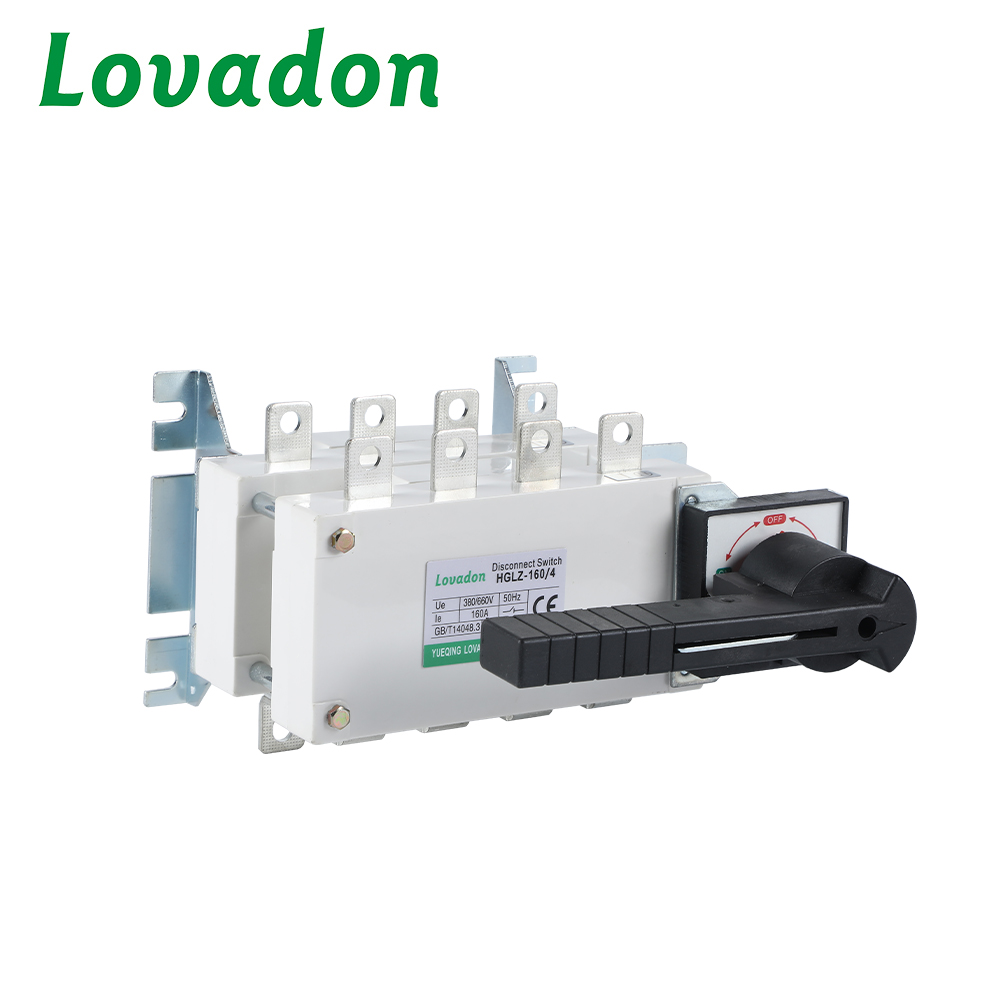

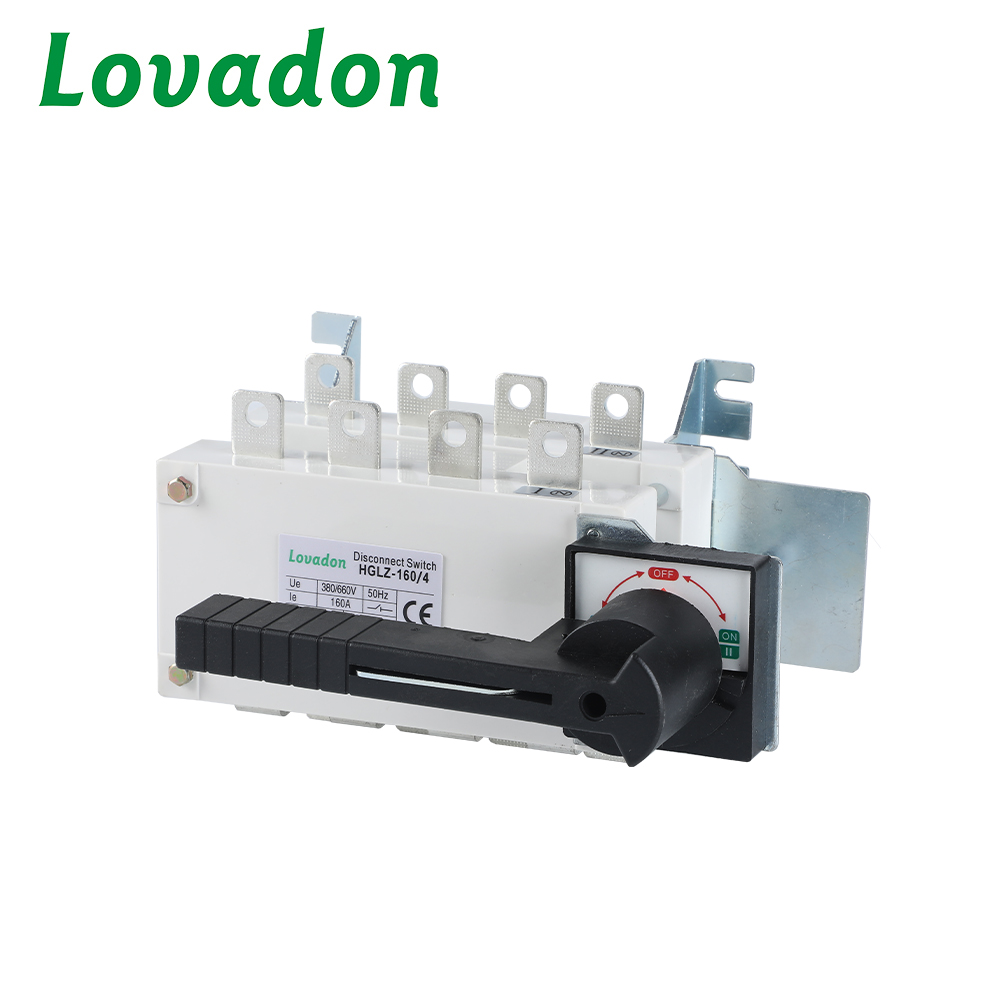

Direct operation: The handle is mounted on the switch.
Out-of-cabinet operation; The handle is installed outside the power distribution board.

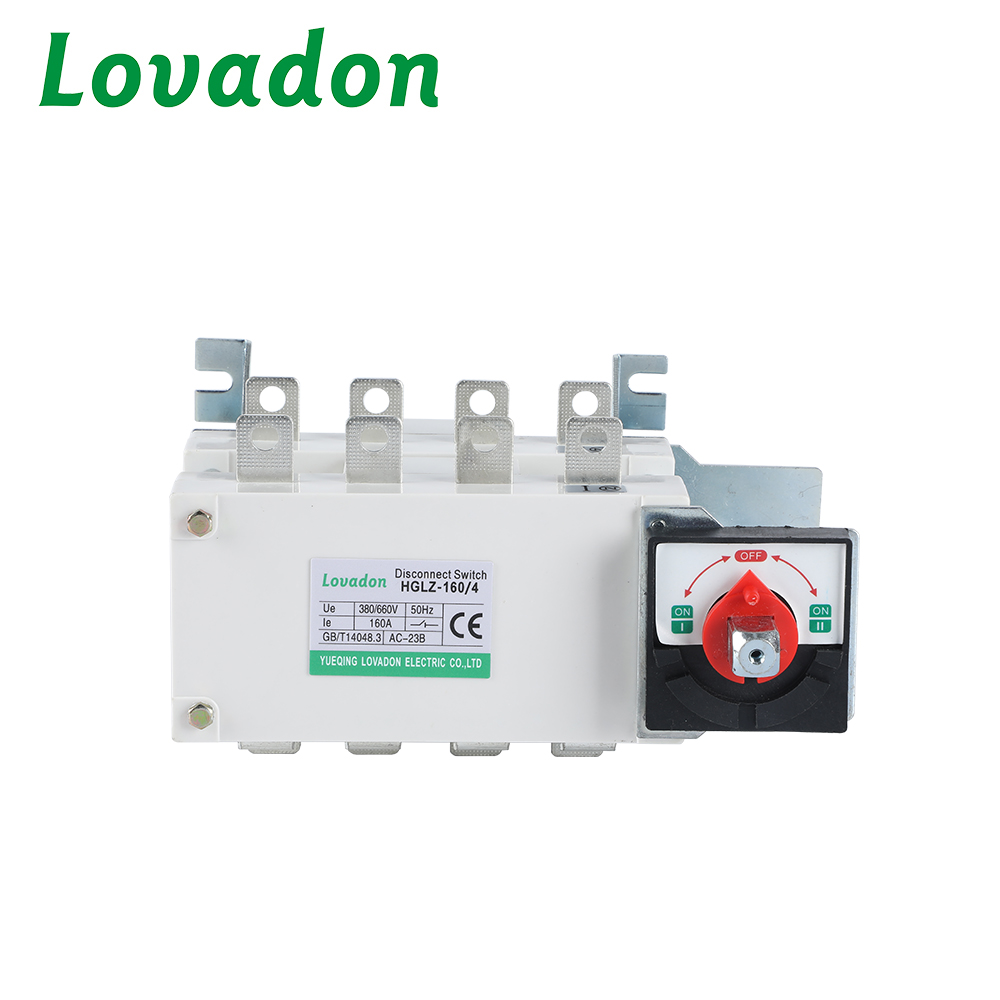

▲An observation window is available to directly monitor the contact ON/OFF status.
▲There are three poles, four poles (three poles + on-off neutral pole).

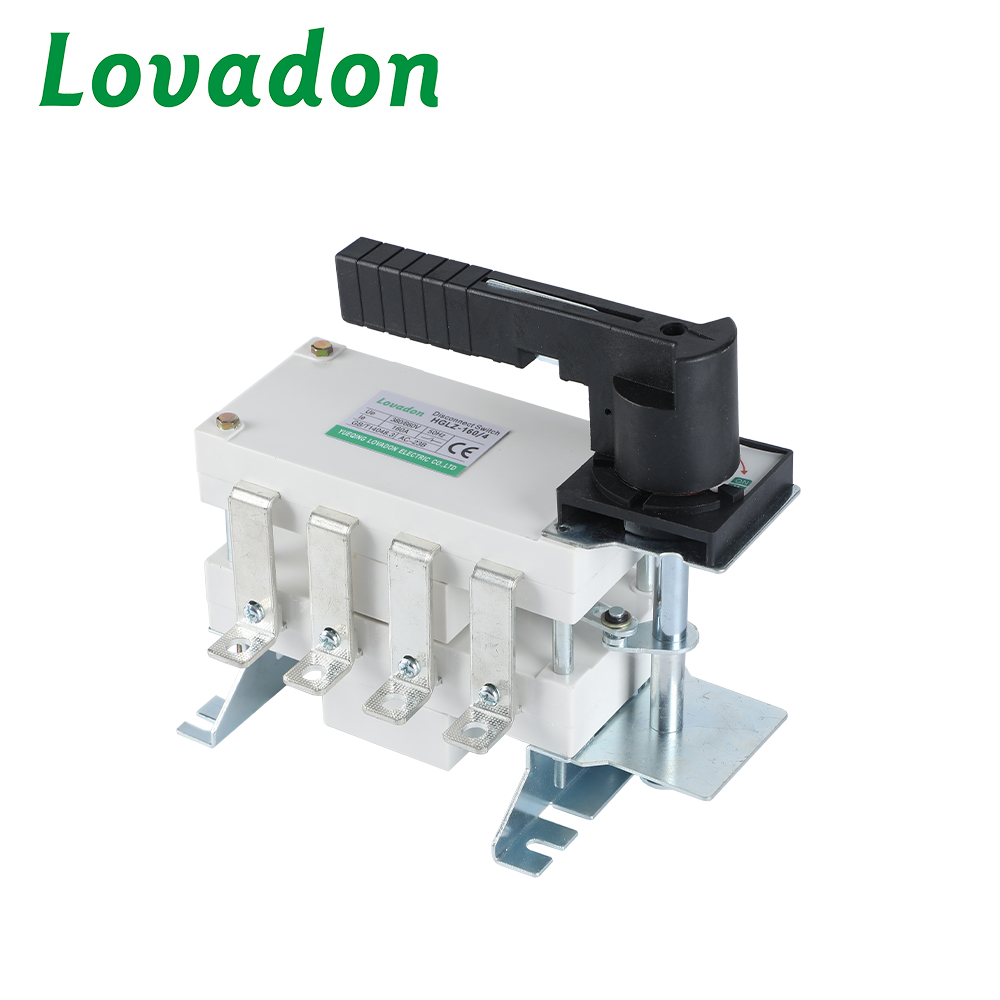

▲Extended shaft for outside cabinet operation.
▲Two sets of auxiliary contacts can be fitted as required
▲Electrical and mechanical properties and HGLZ-63A-3150A electrical and mechanical properties correspond to the same.
▲A bridge connecting conductor is available to connect the incoming or outgoing end of the switch.
▲Can be equipped with cable insulation cover.
Note: If a bridge connector is selected, please specify whether it is for the incoming or outgoing side.
Technical Parameters
HGLZ-63-1600A Outline and mounting dimensions (mm)
