General

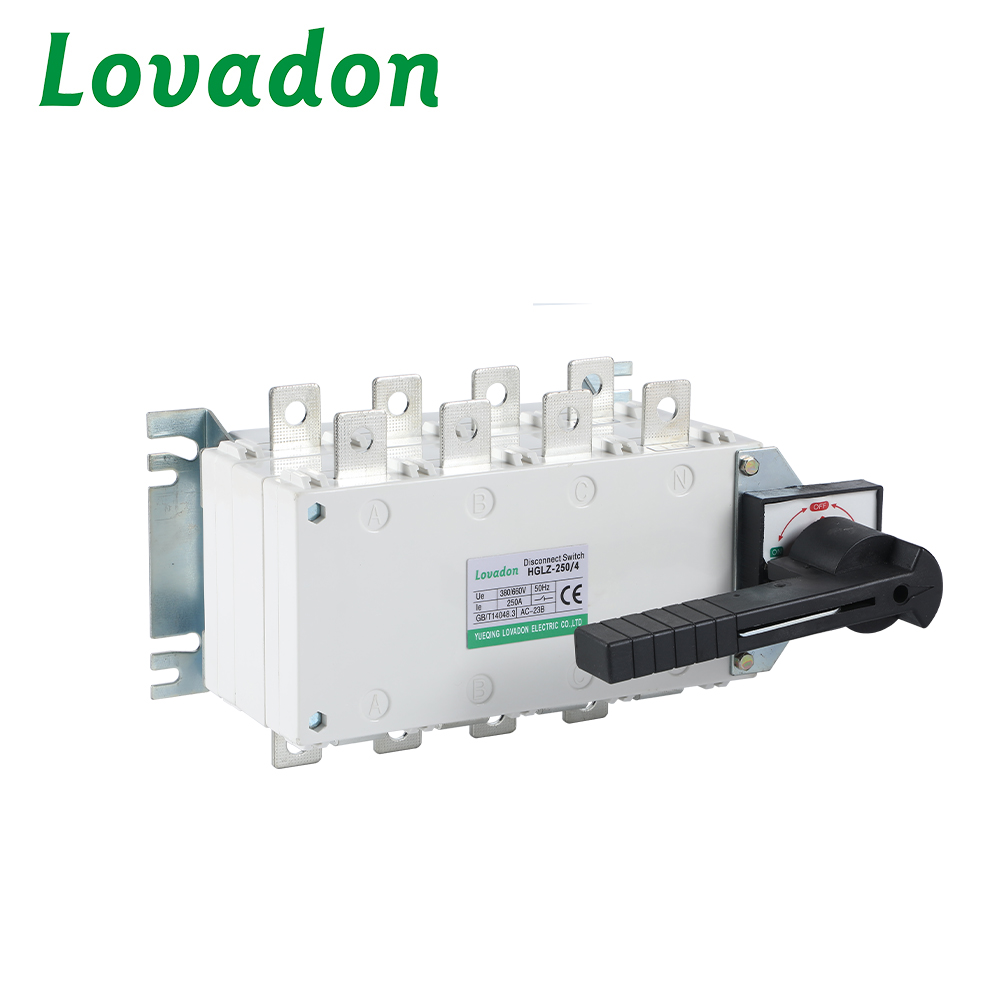

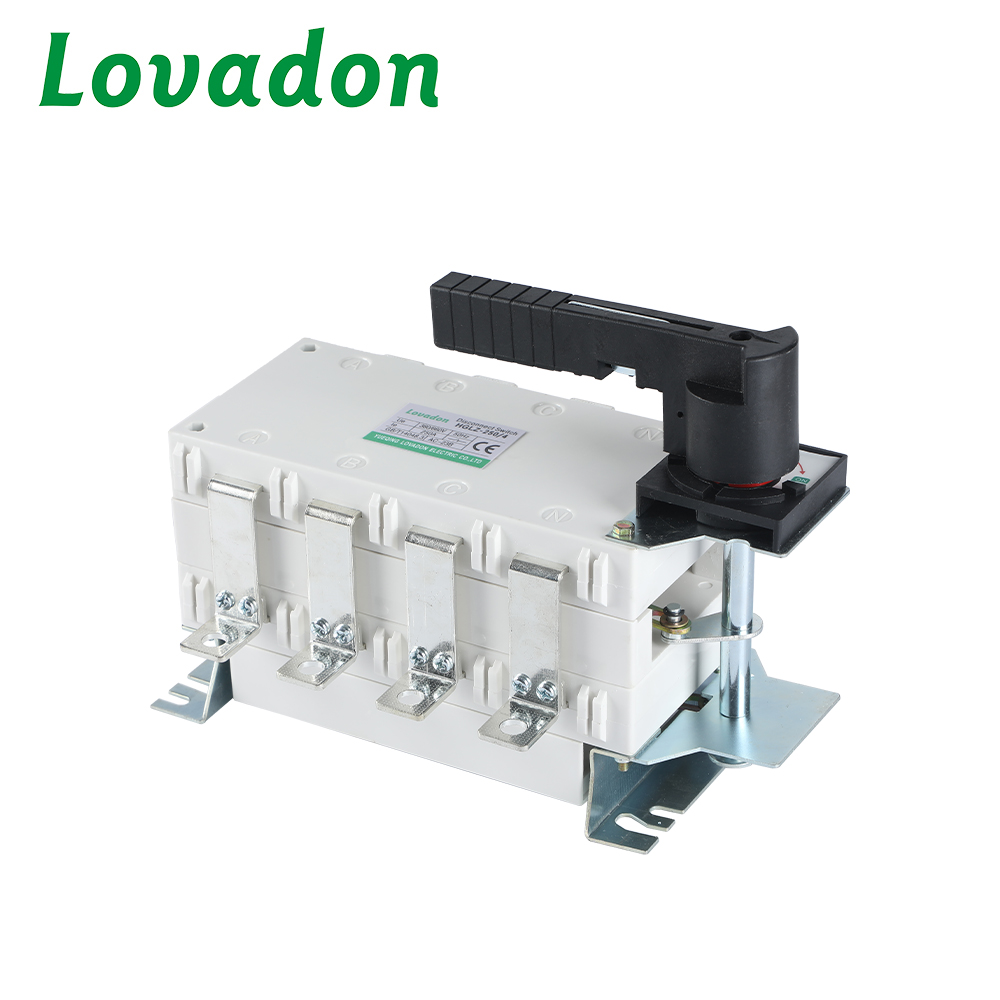

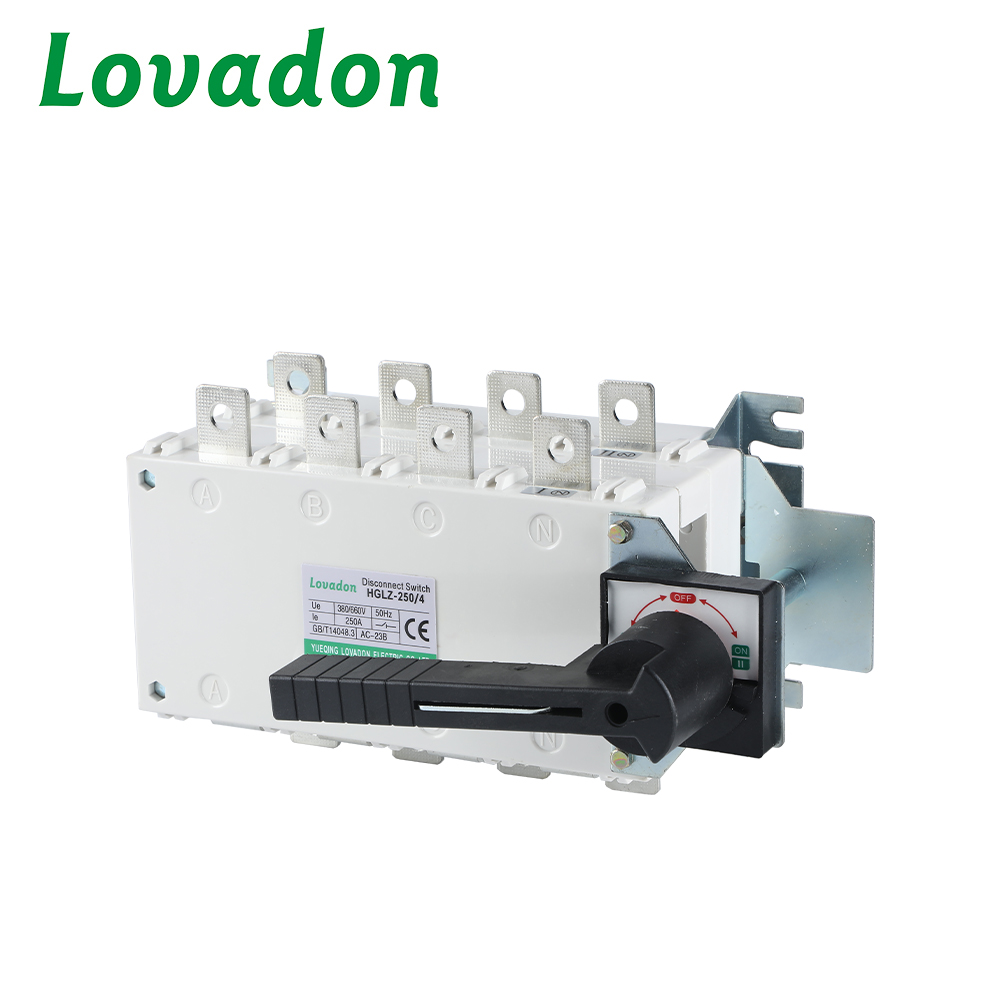

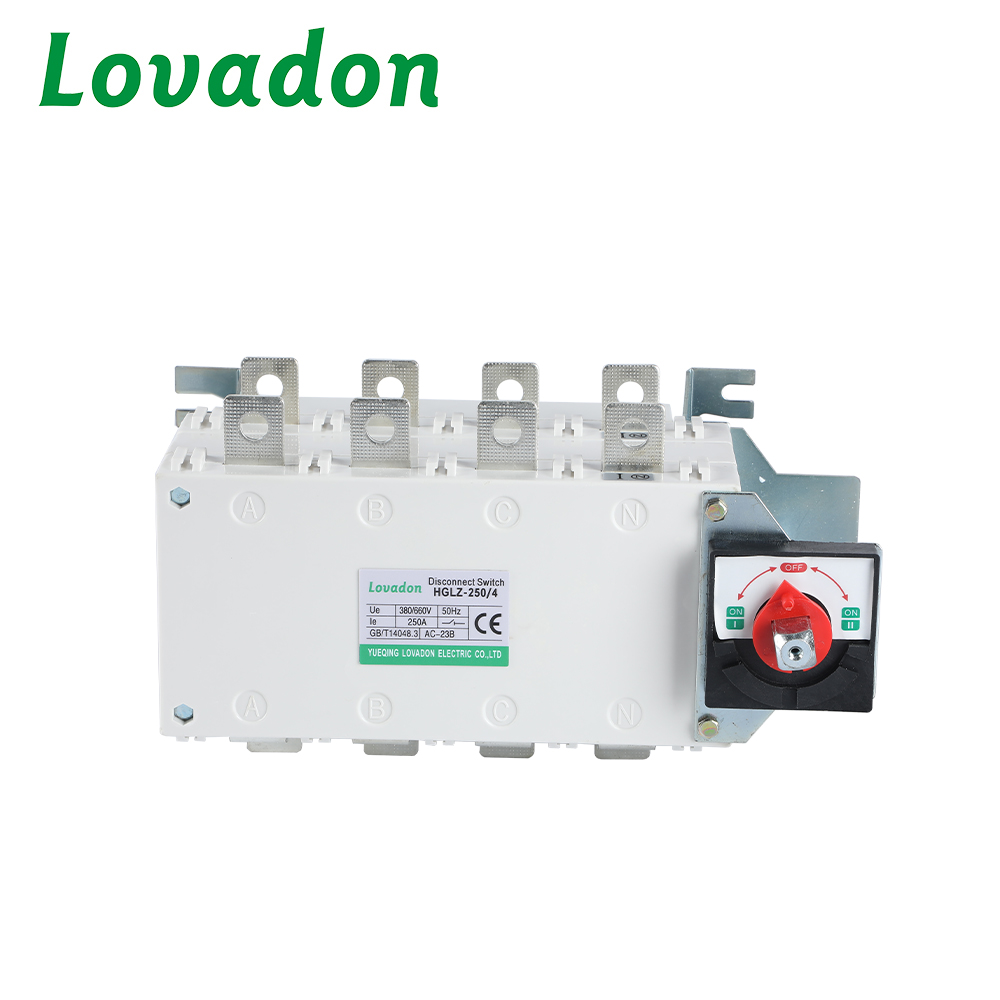

HGLZ-63A~3150A is suitable for the changeover of two low-voltage circuits or the conversion or safety isolation of two load devices

▲Operating mode:

 Direct operation: The handle is mounted on the switch.

 Out-of-cabinet operation; The handle is installed outside the power distribution board.

▲An observation window is available to directly monitor the contact ON/OFF status.

▲There are three poles, four poles (three poles + on-off neutral pole).

▲Extended shaft for outside cabinet operation.

▲Two sets of auxiliary contacts can be fitted as required

▲Electrical and mechanical properties and HGLZ-63A-3150A electrical and mechanical properties correspond to the same.

▲A bridge connecting conductor is available to connect the incoming or outgoing end of the switch.

▲Can be equipped with cable insulation cover.

Note: If a bridge connector is selected, please specify whether it is for the incoming or outgoing side.

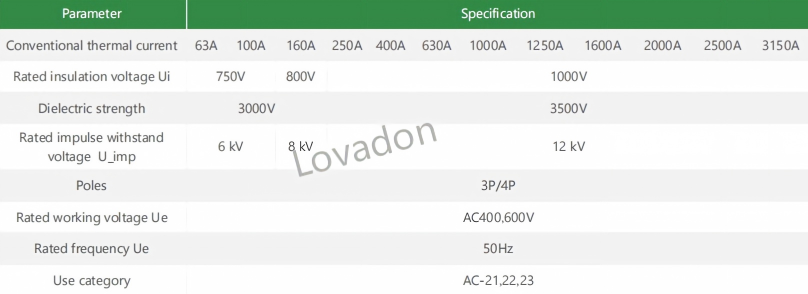

Technical Parameters

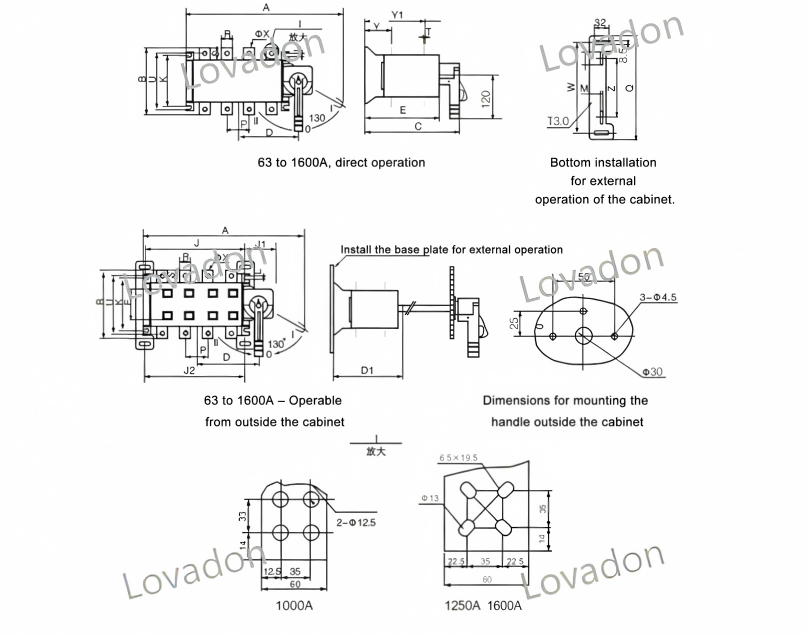

HGLZ-63-1600A Outline and mounting dimensions (mm)
