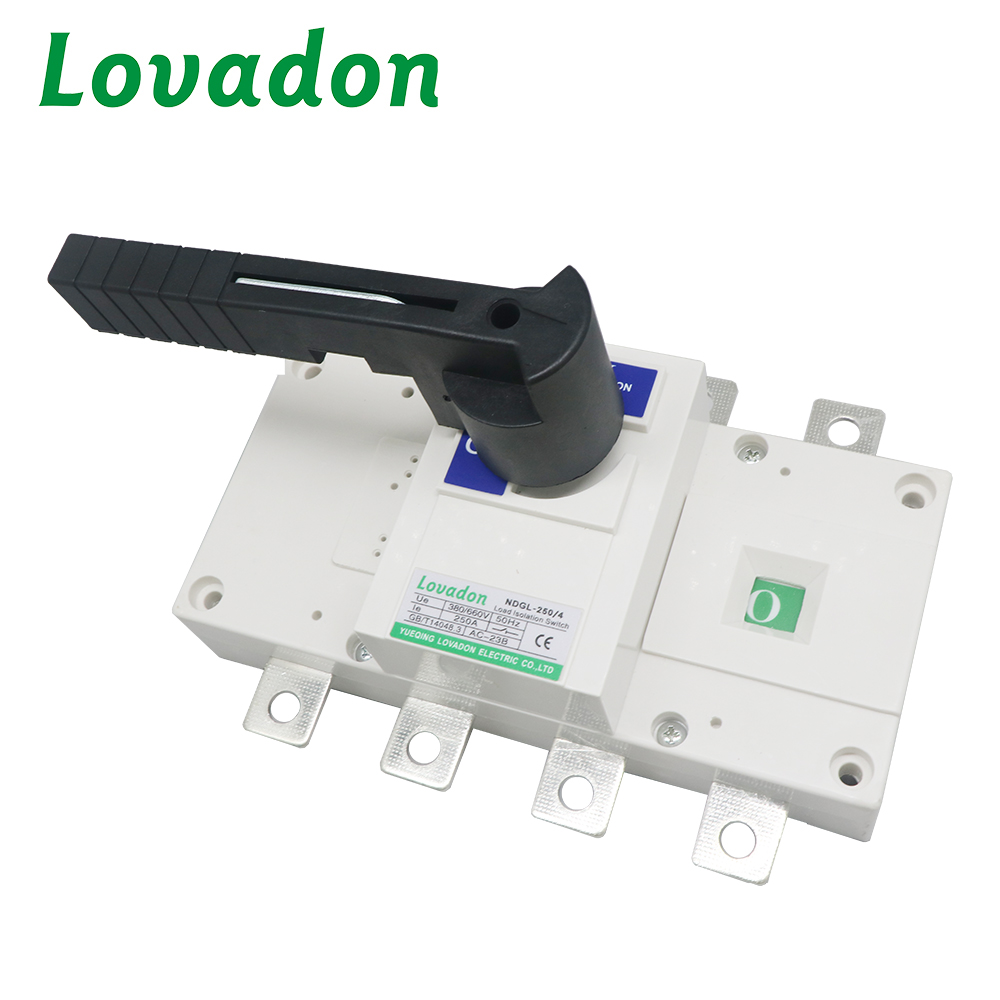

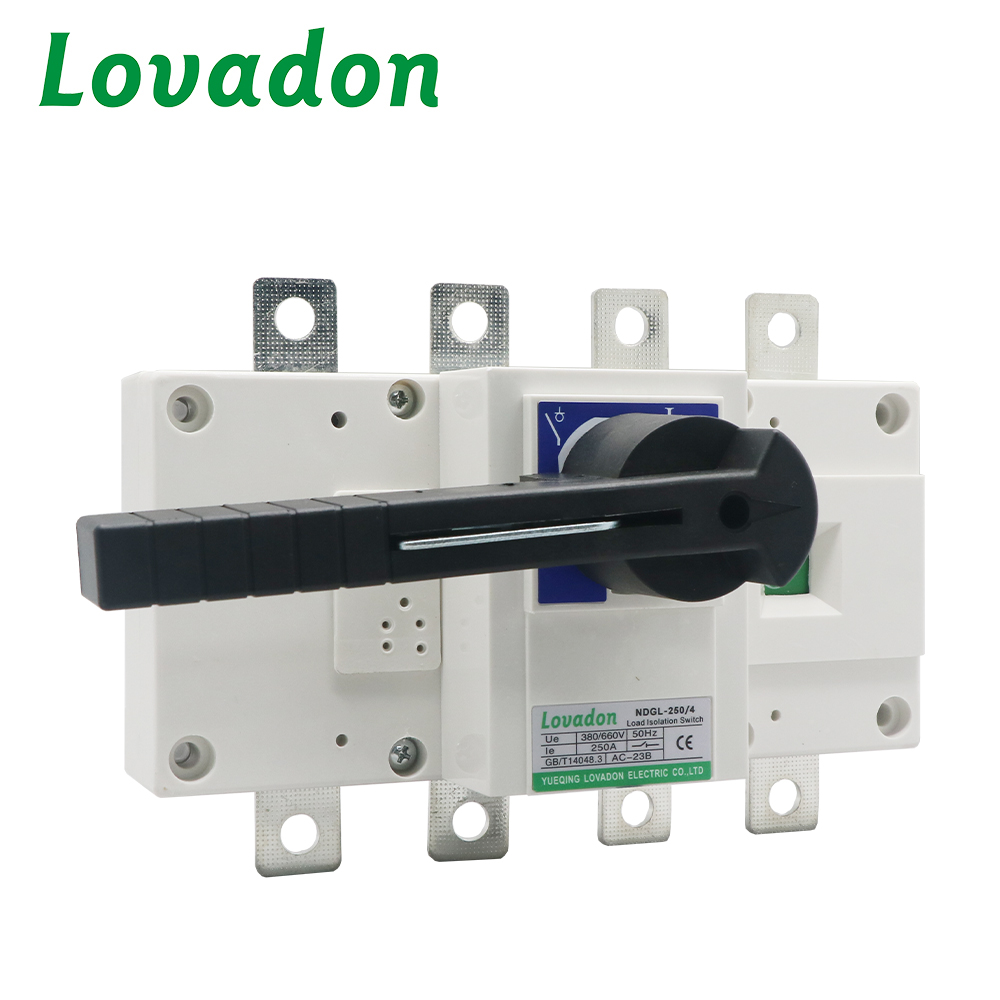

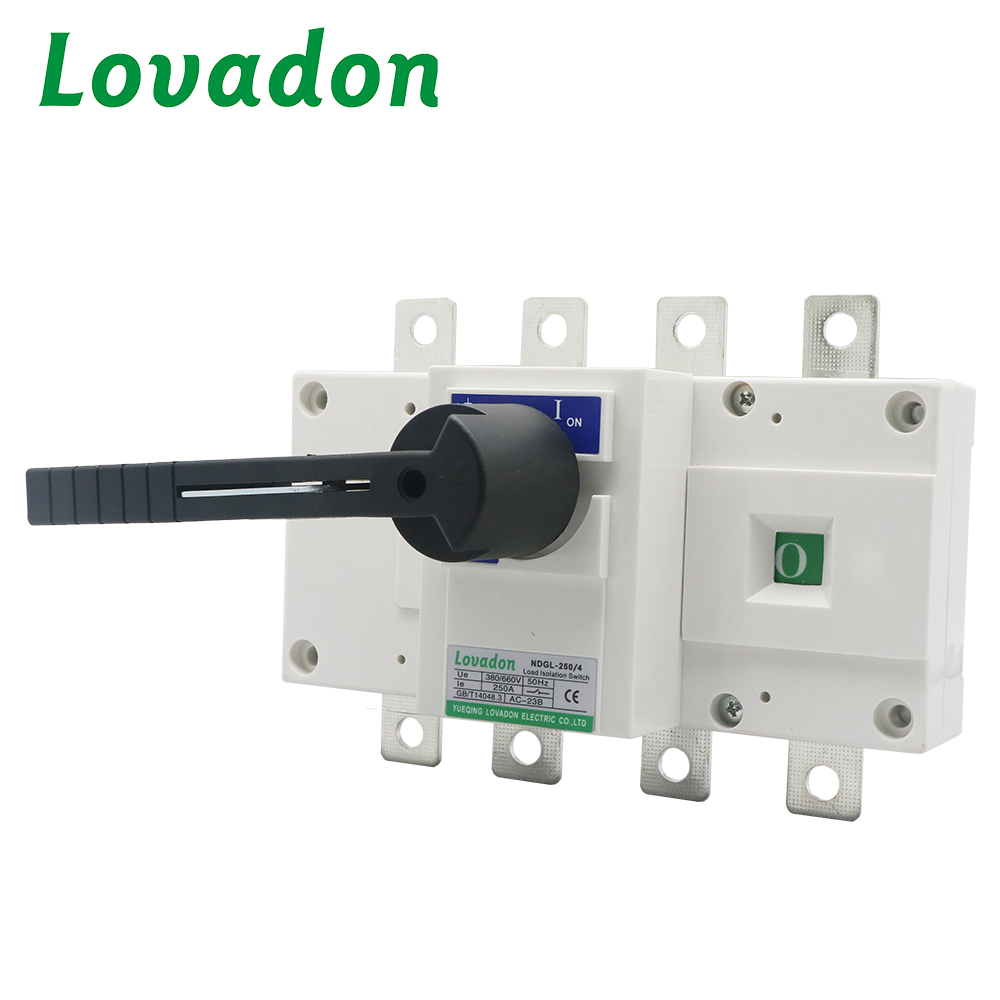

NDGL-250 4P New Arrival 250A NDGL-250-4 Load Break Isolator Disconnect Switch Low Voltage Safety Disconnect Switch

The NDGL series load break isolation switch is suitable for AC 50Hz systems with rated voltage up to 660V and DC systems up to 440V, with current ratings up to 3150A.It is used in industrial distribution systems for infrequent manual switching, circuit isolation, and power supply disconnection.Models rated 1000A and above are for isolation only and must not break load current.This product complies with IEC 60947-3 and GB 14048.3 standar···

Request A Quick Quote

Product Details

General

The NDGL series load break isolation switch is suitable for AC 50Hz systems with rated voltage up to 660V and DC systems up to 440V, with current ratings up to 3150A.

It is used in industrial distribution systems for infrequent manual switching, circuit isolation, and power supply disconnection.

Models rated 1000A and above are for isolation only and must not break load current.

This product complies with IEC 60947-3 and GB 14048.3 standards.

Yueqing Lovadon Electric Co., Ltd.

NDGL-250 4P New Arrival 250A NDGL-250-4 Load Break Isolator Disconnect Switch Low Voltage Safety Disconnect Switch

General

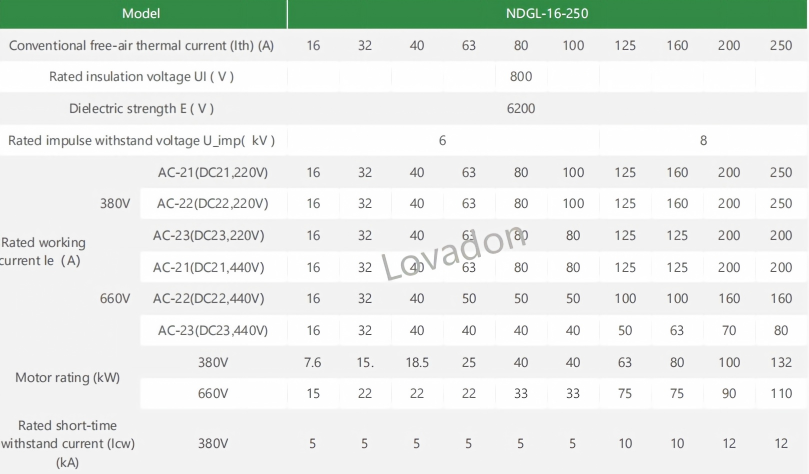

Technical Parameters

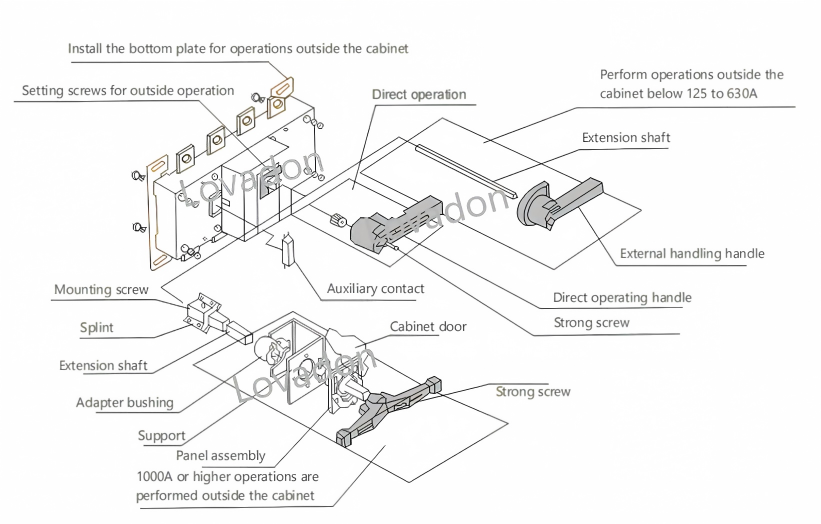

Installation Method
