  • LBB-160 3P IEC 60947-2 Electrical Installation MCCB 160 Amp Moulded Case Circuit Breaker
  • LBB-160 3P IEC 60947-2 Electrical Installation MCCB 160 Amp Moulded Case Circuit Breaker
Moulded case circuit breaker

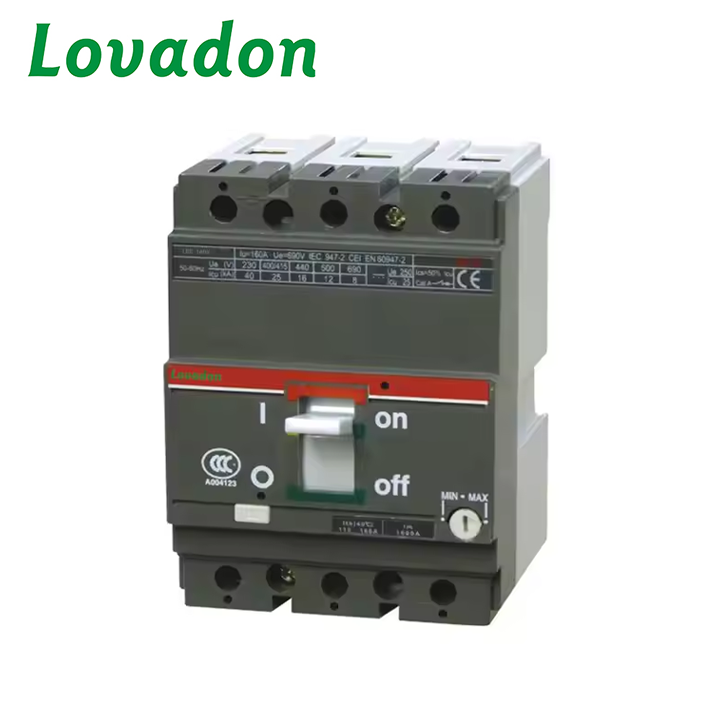

LBB-160 3P IEC 60947-2 Electrical Installation MCCB 160 Amp Moulded Case Circuit Breaker

The LBB series moulded case circuit breaker is designed for AC 50/60Hz circuits with a rated insulation voltage of 660V, a rated operational voltage up to 660V AC / 250V DC, and a current range from 12.5 to 800A. It provides reliable distribution of electrical energy, infrequent switching, and protection against overload, short-circuit, and undervoltage. Compliant with IEC 60947-2.Technical ParametersOverall and mounting dimensions(mm)
Request A Quick Quote

General

The LBB series moulded case circuit breaker is designed for AC 50/60Hz circuits with a rated insulation voltage of 660V, a rated operational voltage up to 660V AC / 250V DC, and a current range from 12.5 to 800A. It provides reliable distribution of electrical energy, infrequent switching, and protection against overload, short-circuit, and undervoltage. Compliant with IEC 60947-2.

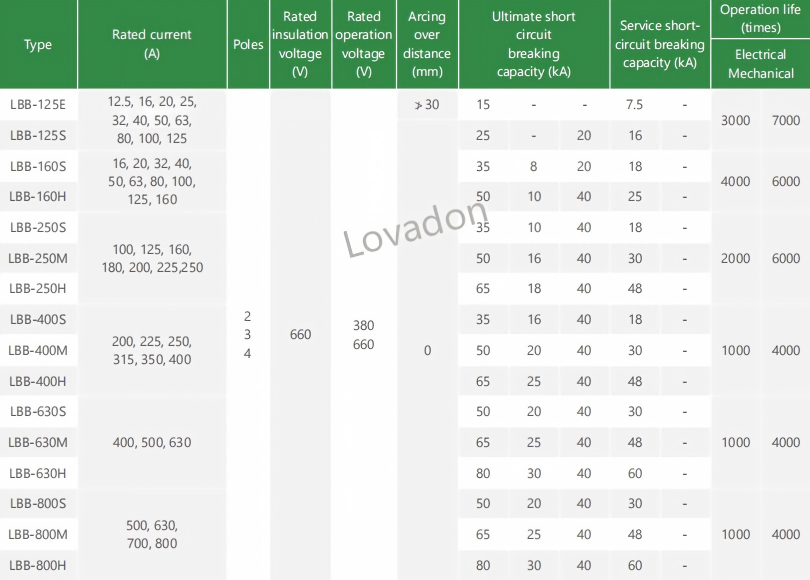

Technical Parameters

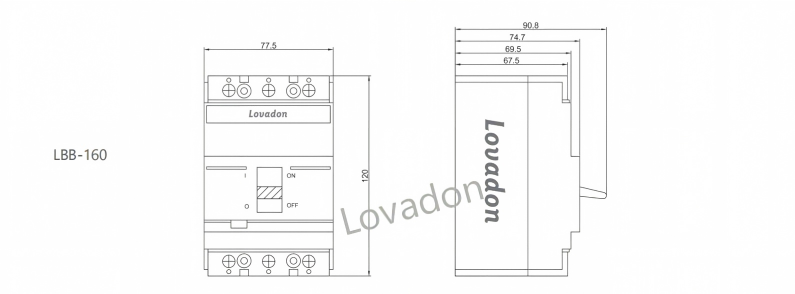

Overall and mounting dimensions(mm)
