General
The LCM7 Moulded Case Circuit Breaker features a rated insulation voltage of 800V and is designed for power systems with AC 50/60Hz, rated voltage up to 690V, and rated current up to 1250A. It is suitable for infrequent transfer applications. Equipped with overload, short-circuit, and undervoltage protection, it reliably safeguards circuits and power equipment. With a compact design, high breaking capacity, short arcing time, and anti-vibration performance, it is an ideal choice for both land and marine applications. Installation can be vertical or horizontal. Complies with IEC 60947-2 and GB 14048.2 standards.

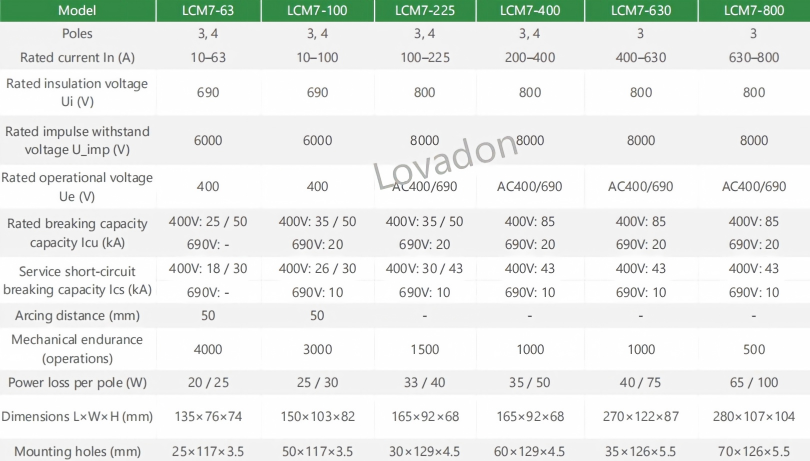

Technical Parameters
