General

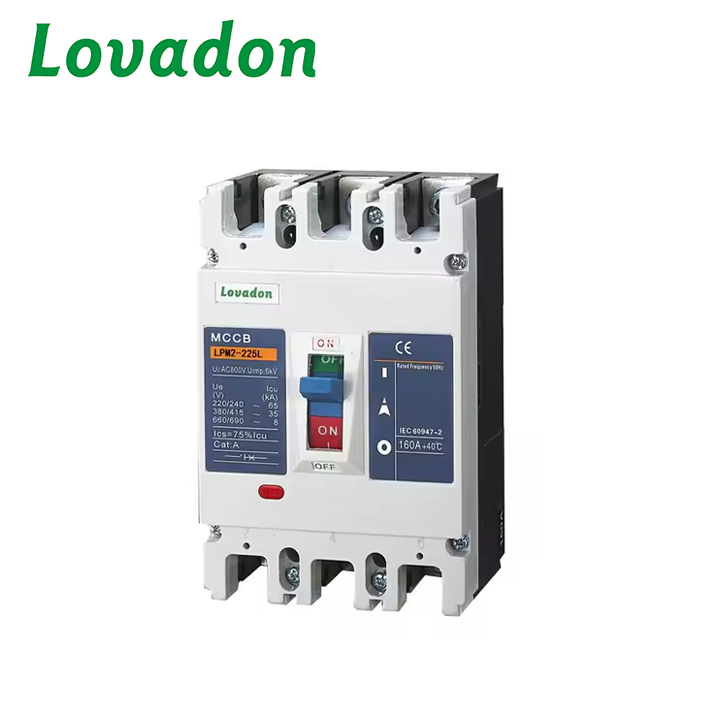

The Moulded Case Circuit Breaker is a critical electrical component rated for currents of 100 to 225 amps and a working voltage of 380V/415V. It features a breaking capacity of 35kA and complies with ISO9001 standards, ensuring high quality and reliability. This breaker has a rated frequency of 50/60Hz and a mechanical life cycle of 7000 operations. It is constructed from ABS material and includes three poles, making it suitable for various electrical distribution systems.
Technical Parameters
| Model Number | LPM2LE-225M |
| Rated working Voltage(V) | 380V/415V |
| Rated Current | 100A,125A,140A,160A,180A,200A,225,250A |
| Breaking capacity | 50kA |
| Rated frequency | 50/60 Hz |
| Mechanical life(Circle) | 7000 |
| Material | ABS |
| Color | white |
| Certificate | ISO9001 |
| Poles Number | 3 |
