General
LA1 seres contactor type realy it is used to enlarge the number for auxiliary contact paers, Contact function of sliding id adopted in auxoloary group, it can self-clean, so as to ensure mailing circuit. La1 series auxiliary contact group is civided into 8 following speGK: F4-11,02,13,31,22,40,04.
LA1-DN series Auxiliary contact group can befixed on top of JZC4 series contactor type relay of CJX2 series AC contactor, it is used to enlargethe number for auxiliary contact pairs, Contactfunction of sliding is adopted in auxiliary group, it can self-clean, so as to ensure making circuit. F4 series auxiliary contact group is divided into 8 following speGK: F4,20,13,31,22.

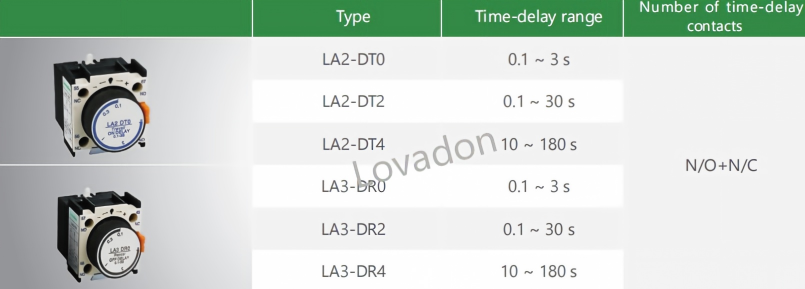

Technical Parameters
| Type | Time-delay range | Number of time-delay contacts |
| LA2-DT0 | 0.1s~3s | N/O+N/C |
| LA2-DT2 | 0.1s~30s |
| LA2-DT4 | 10s~180s |
| LA3-DR0 | 0.1s~3s |
| LA3-DR2 | 0.1s~30s |
| LA3-DR4 | 10s~180s |
