General
This voltage protector mainly used for residential household box entry or over-voltage,under-voltage of distribution lines for single-phase electrical equipment.
Its main feature is that the circuit has over-voltage or under-voltage, over-current condition,the product can cut off the power supply instantaneously to protect the electrical equipment from being damaged; and the protector can automatically turn on the power supply when the circuit voltage returns to normal.

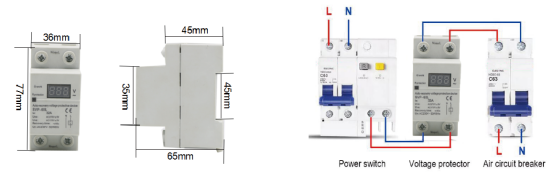

Overall And Mounting Dimensions(mm)
Technical Parameters
| Product Name | Automatic Recovery Under And Over |
| Voltage Protector |
|
| Rated AC voltage | 230VAC 50/60HZ |
| Maximum load | 40A |
| Over-voltage protection | AC275+/-5V |
| Under-voltage protection | AC170+/-5V |
| Dimension | 36*65*77mm |
| Installing | 35mm DIN rall |
| Recovery relay time | 60s |
| Power consumption | <2W |
| Electrical mechanical life | ≥4000 times |
| Working environment | Temperature: -25°C~+40°C |
