General

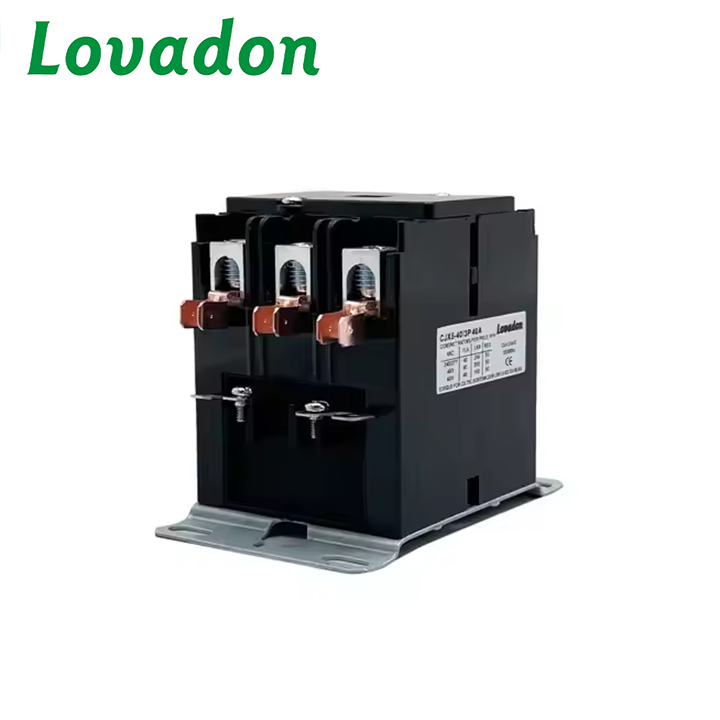

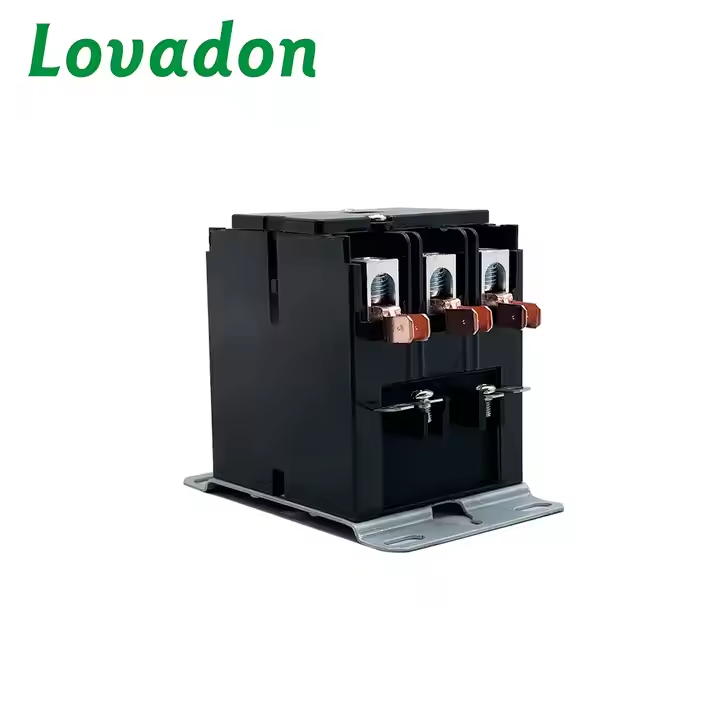

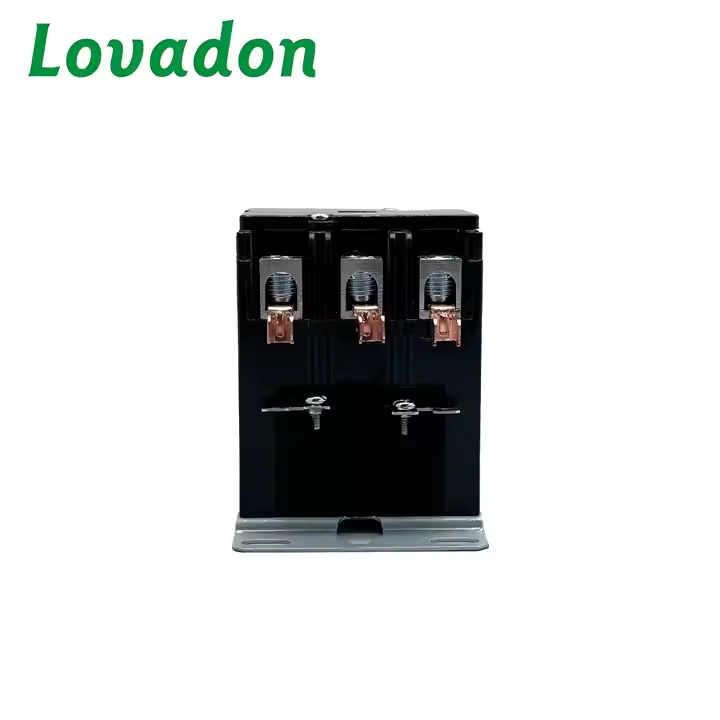

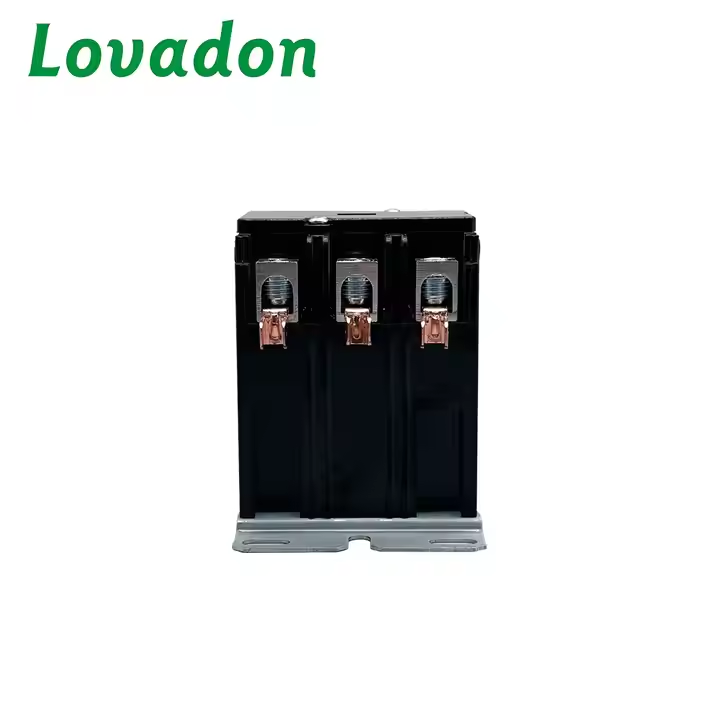

The CJX5 series AC contactors are designed for controlling AC motors operating at 50Hz/60Hz, with a rated insulation voltage up to 690V and a rated working current up to 40A (AC-8a or FLA). They are suitable for air conditioner compressors (complying with IEC standards AC-8a, AC-8b) and can also be used for controlling other motor loads in household and similar applications. The CJX5 series complies with IEC 60947-4-1, GB 14048.4, and UL 508 standards.

Feature Description

1.Robust Construction: Features a three-dimensional layout with a moving iron core made of electrical pure iron.

2.Compact & Interchangeable: Small size and compact structure with standardized mounting dimensions for easy replacement.

3.Long Lifespan: Silver metal oxide contacts ensure a long electrical service life.

4.Versatile Coil: Class F (155°C) heat-resistant coil insulation supports a wide voltage range and is suitable for both 50Hz and 60Hz operation.

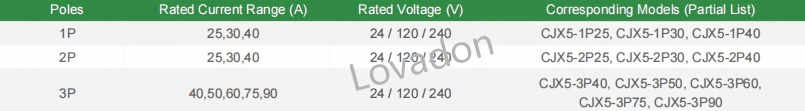

Technical Parameters

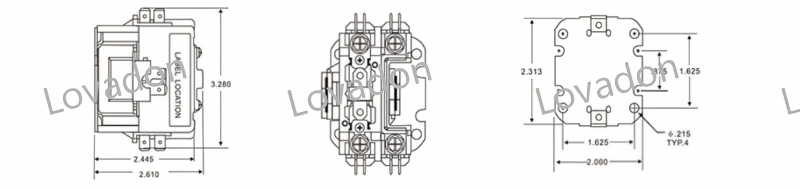

Dimensional drawing (mm)
