General

Here's the English translation of the provided text about the CJX9 (3RT) series AC contactors:

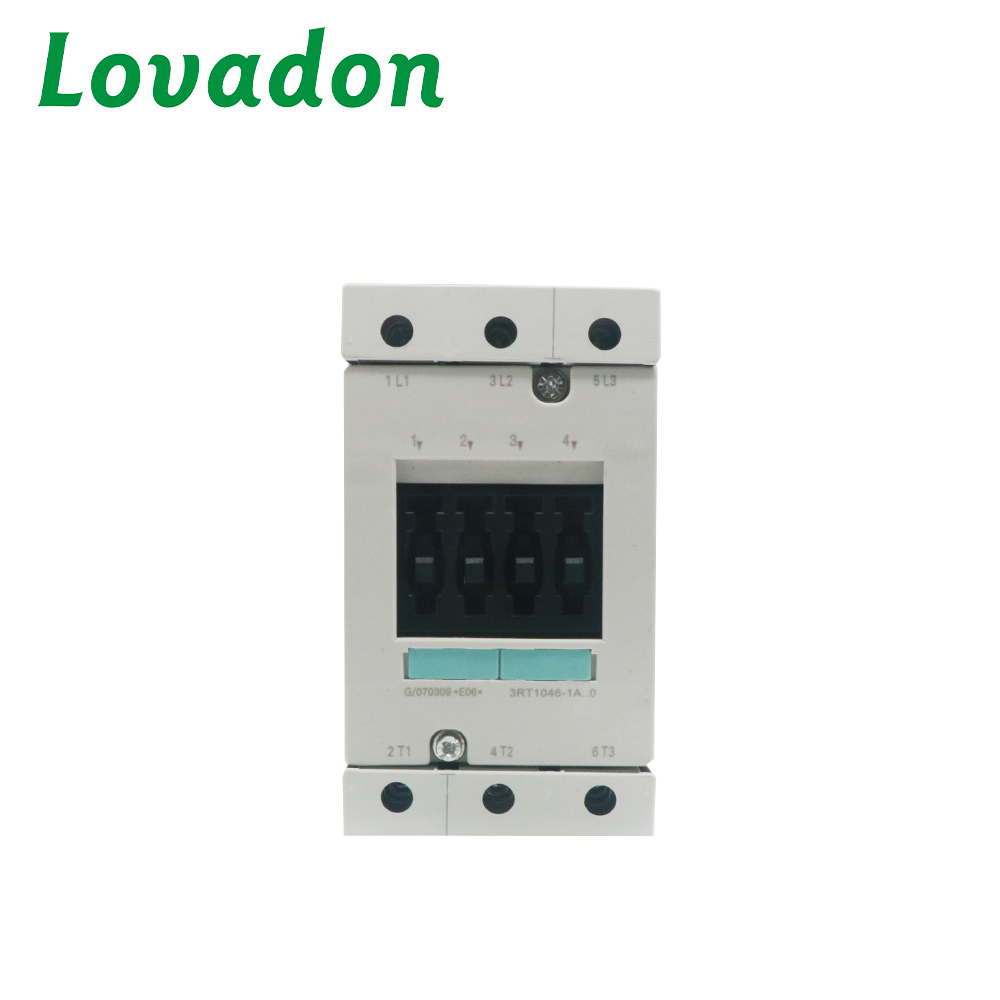

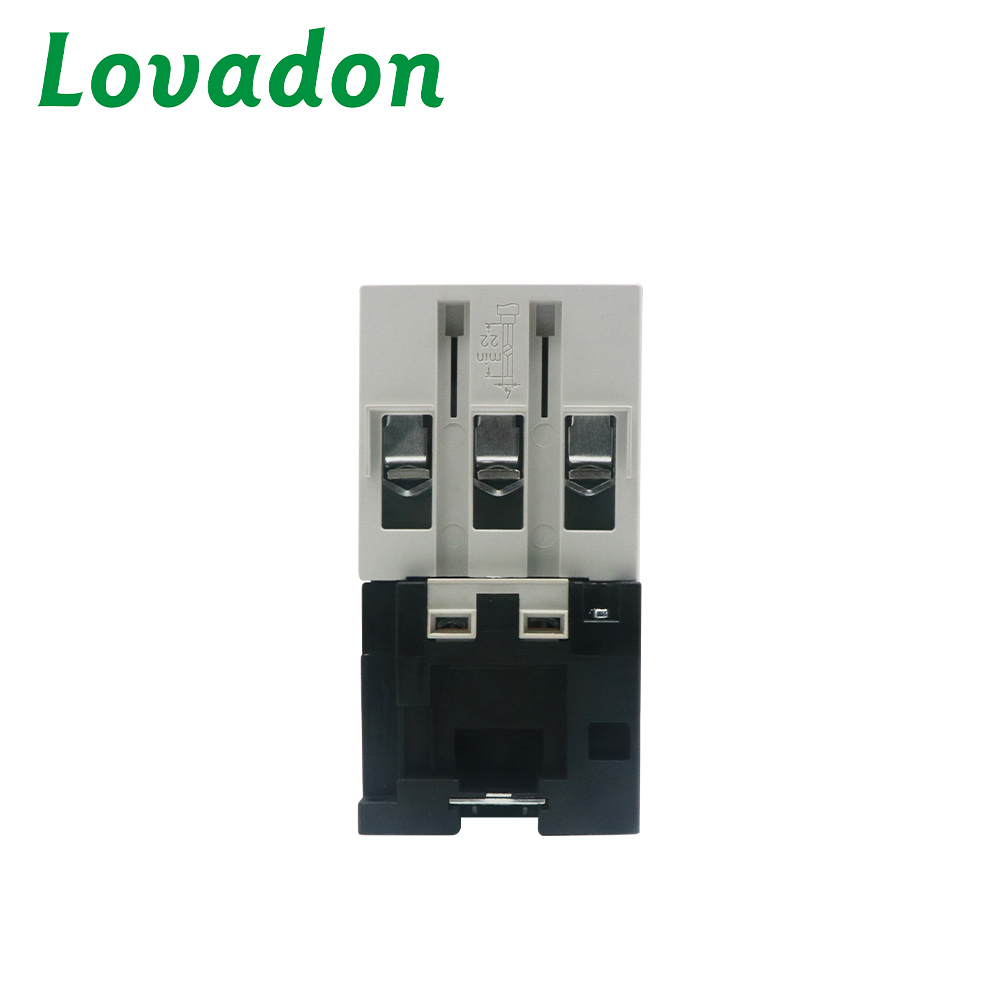

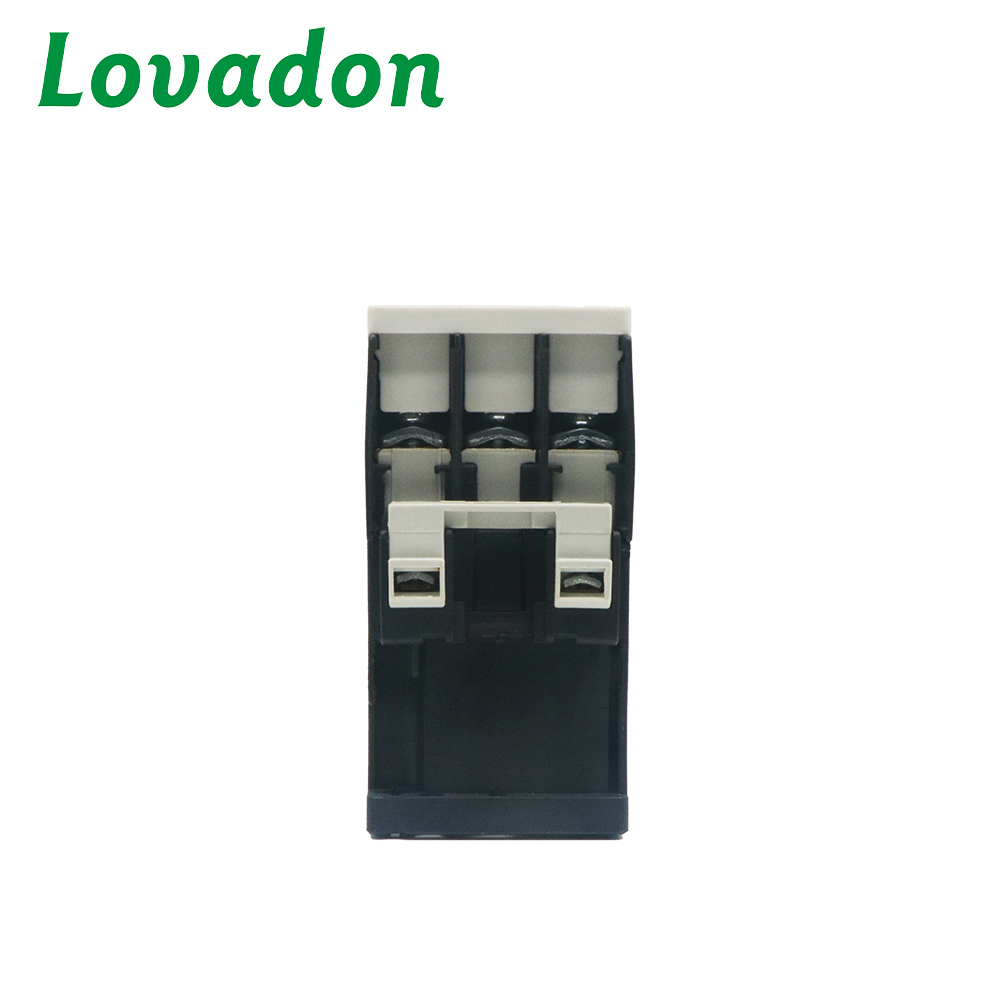

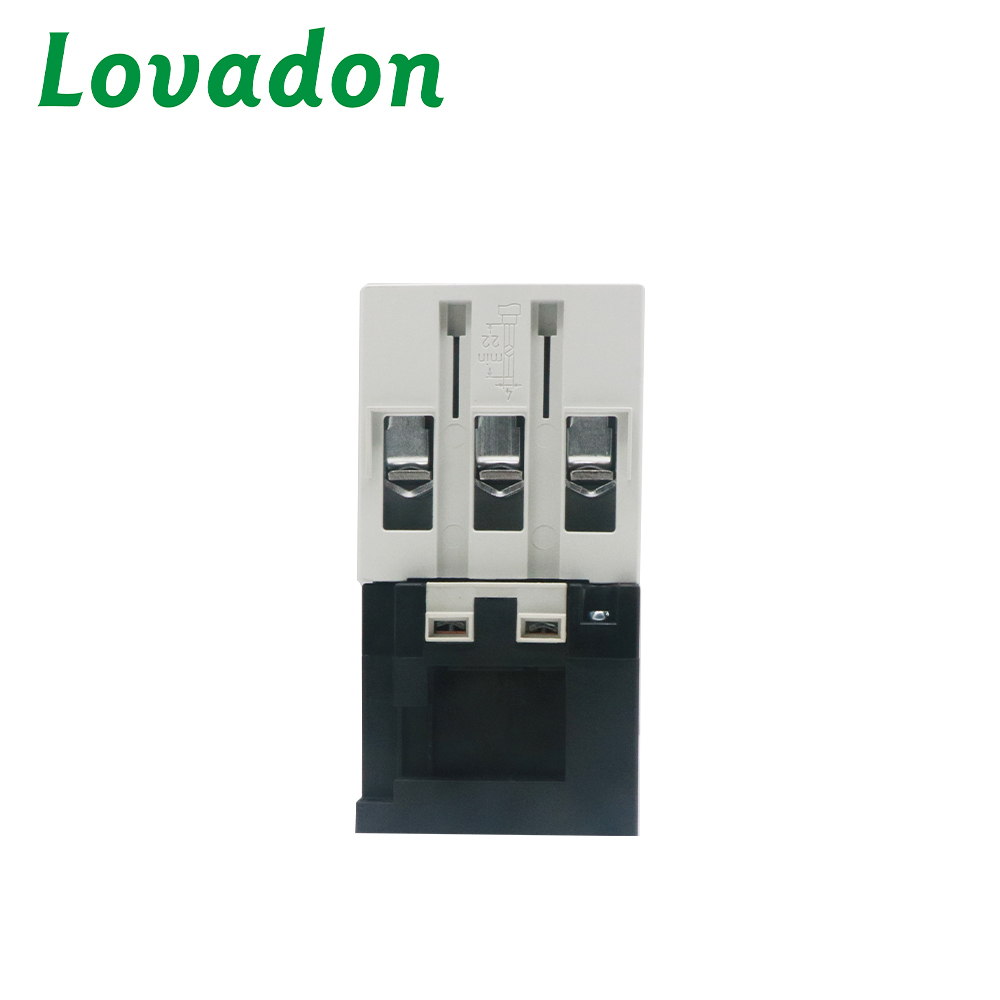

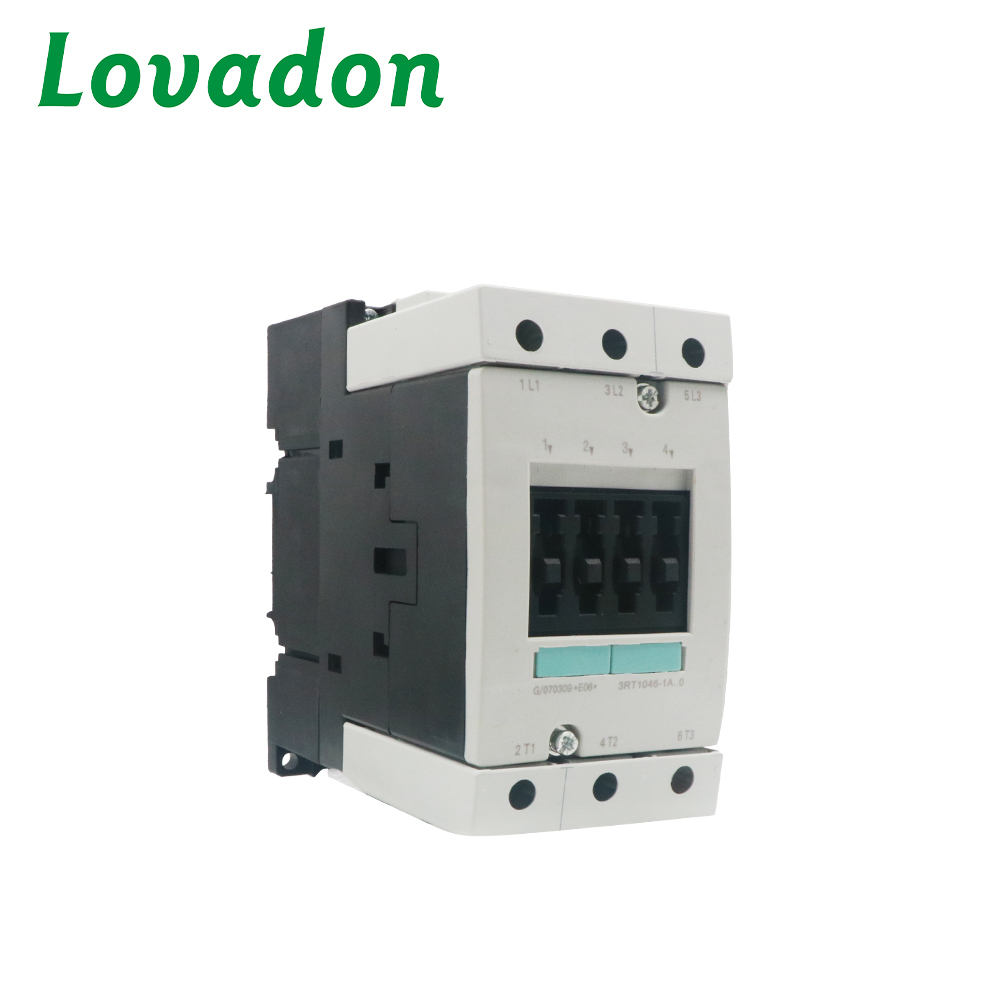

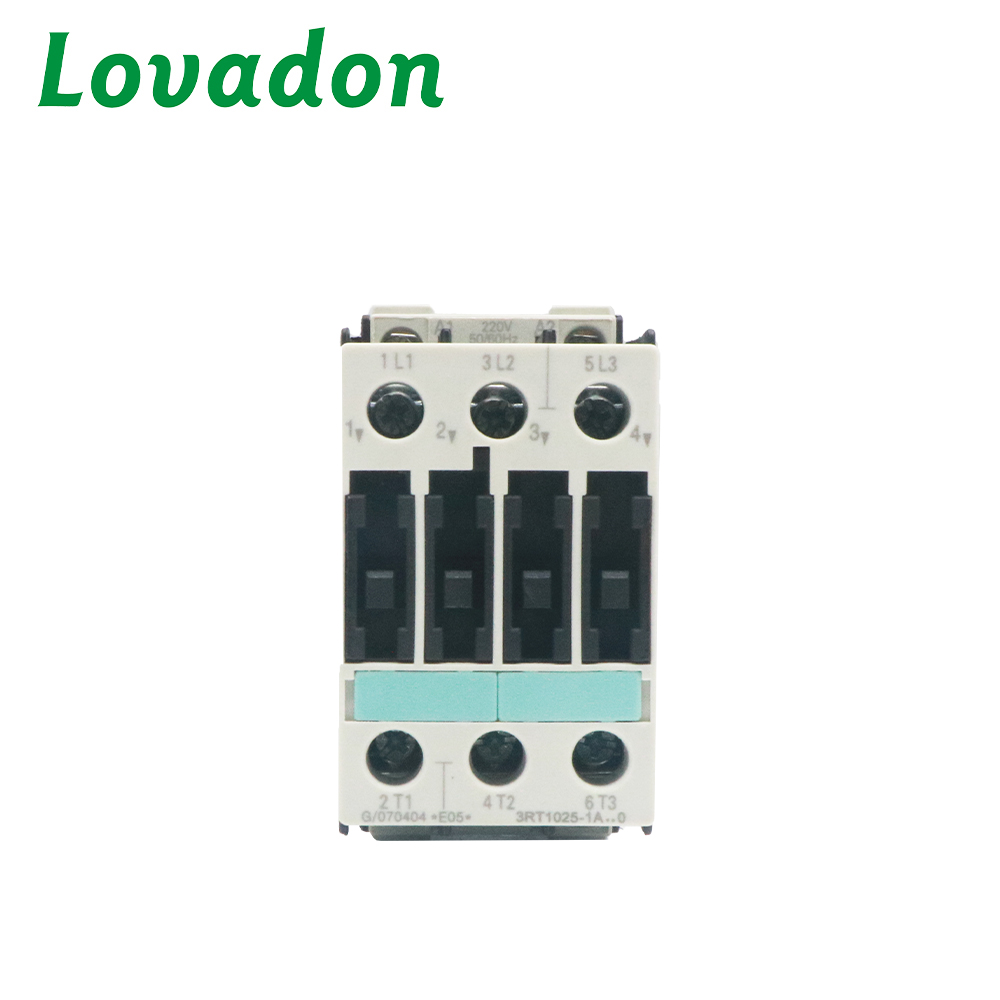

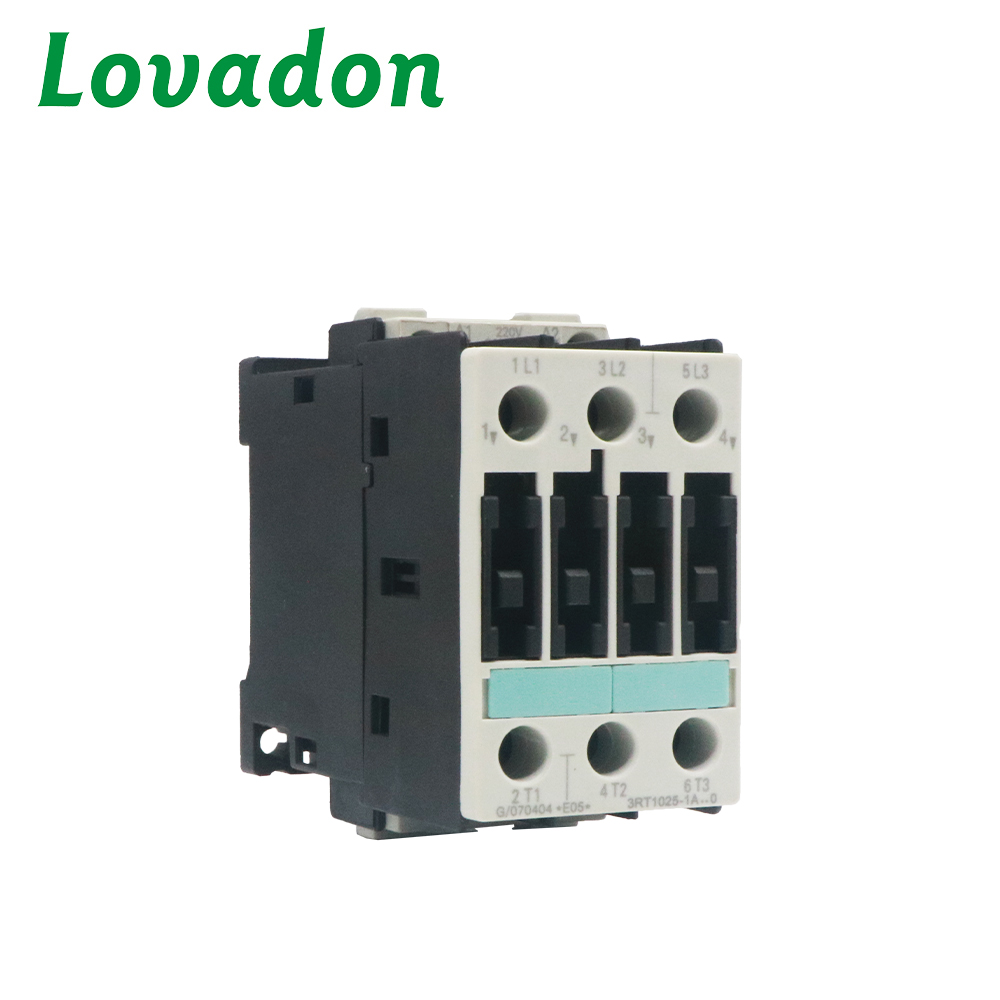

The CJX9 (3RT) series AC contactors are suitable for any climatic conditions. They are mainly used in AC 50Hz (or 60Hz) circuits with a rated insulation voltage of 690V to 1000V and a rated operational current up to 95A at a rated voltage of 380V under utilization category AC-3, for remote making and breaking of circuits. They can also be combined with a suitable thermal overload relay to form a magnetic starter to protect circuits that may become overloaded.

Structure Characteristics

● The operating mechanism is of direct-acting type with double-break contacts.

● Modular functionality allows accessories to be mounted on all sides except the mounting surface.

● Auxiliary contact modules can be freely installed and removed.

● Auxiliary contact modules of SO and above are diversified and interchangeable.

(Note: "SO" may be a typographical variant of "S0", a common frame size designation.)

Working Condition & Installation Condition

● Ambient air temperature: –25°C to +60°C;

● Can be installed in any climatic environment;

● Pollution degree: "Pollution degree 3";

● Installation category: "Installation category III";

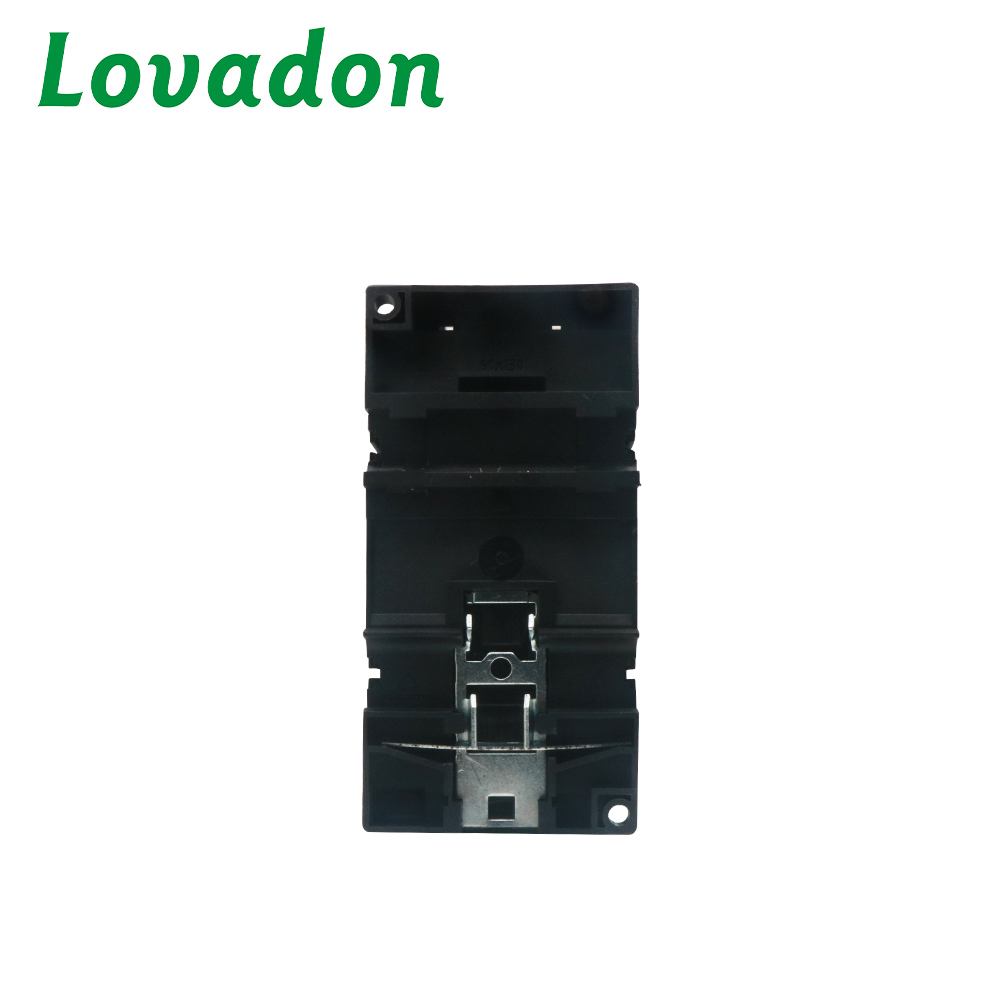

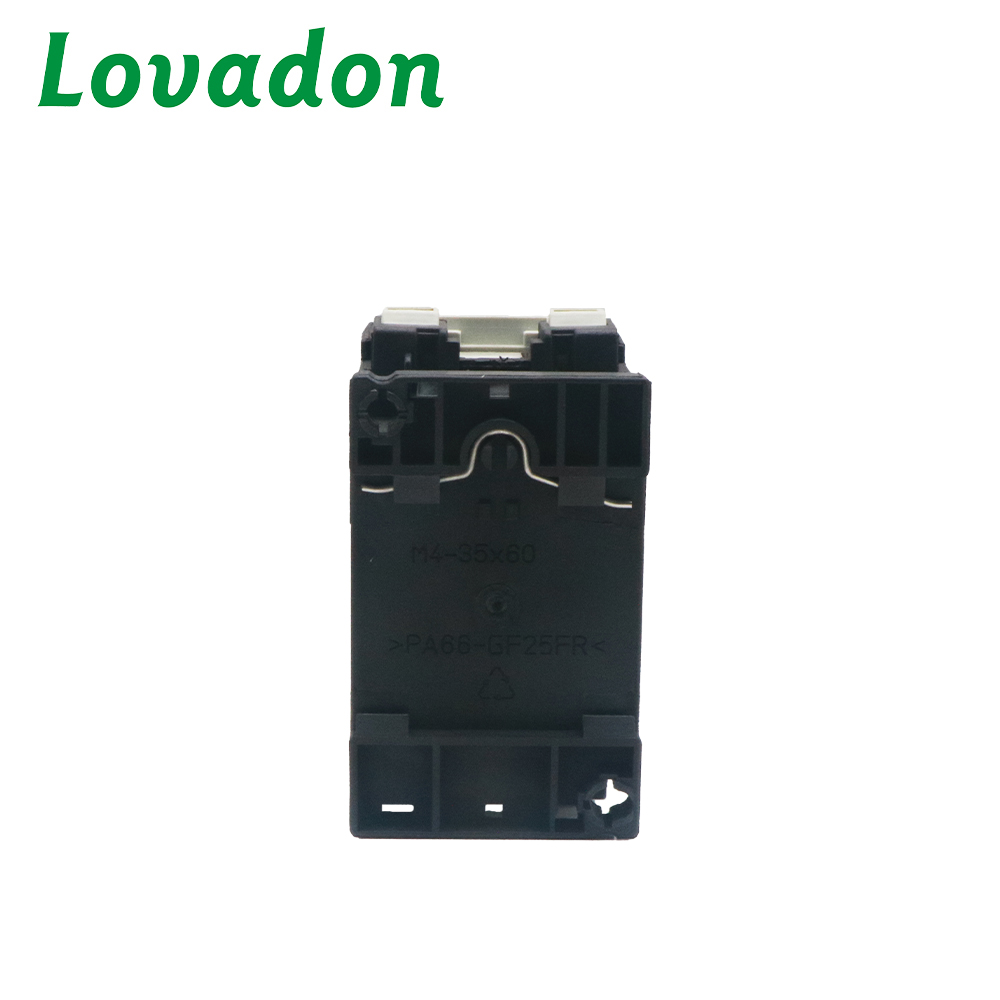

● In addition to screw mounting, it can also be mounted on 35 mm and 75 mm standard rails;

● Can be installed in any direction with an inclination not exceeding 22.5°.

Technical Parameters

Dimension (mm)
