  • NDU1-40 Surge protector
  • NDU1-40 Surge protector
Surge protective device

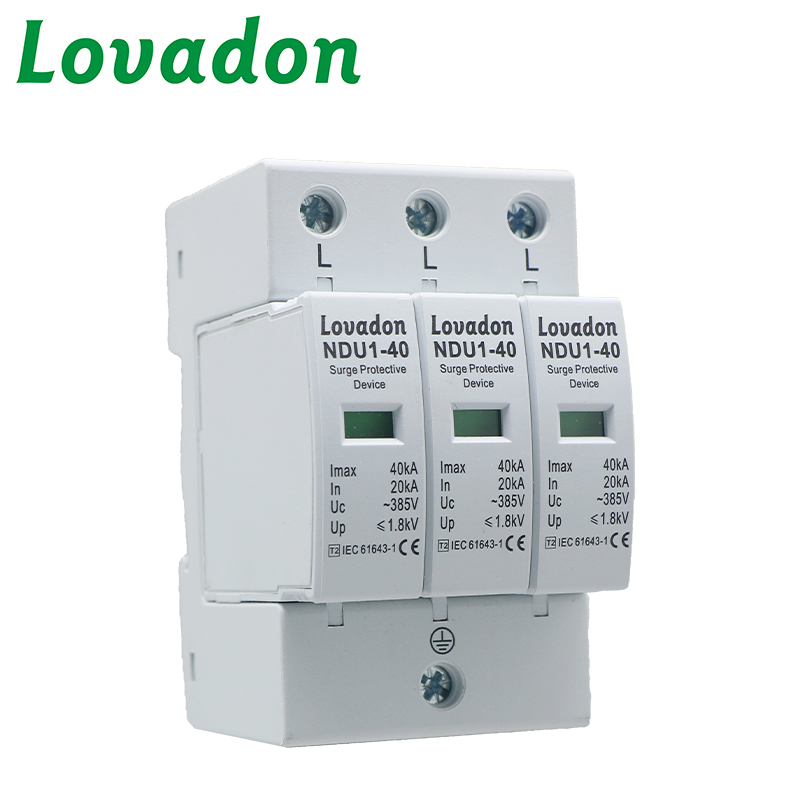

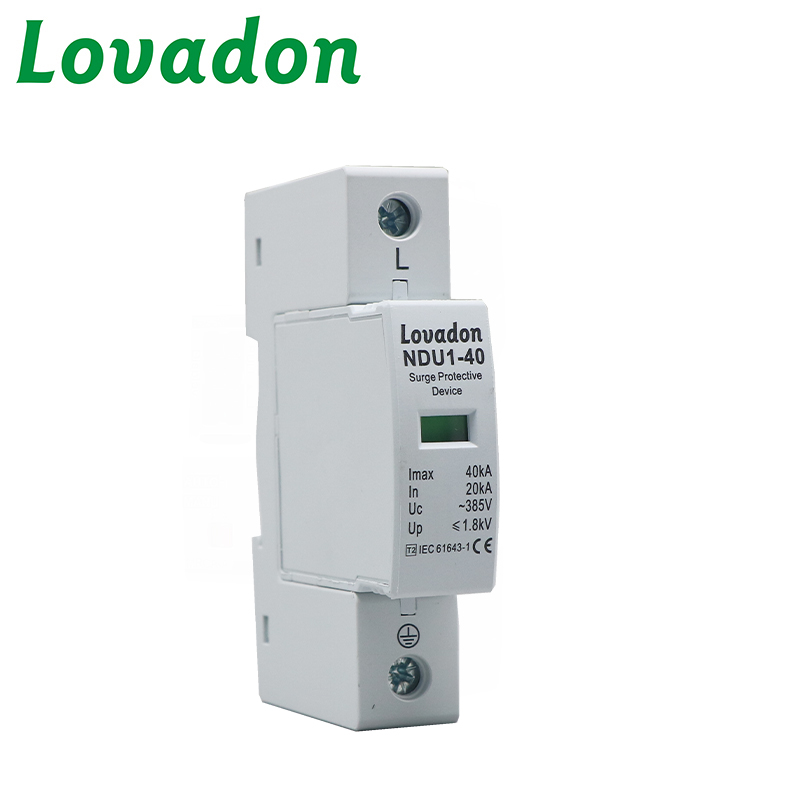

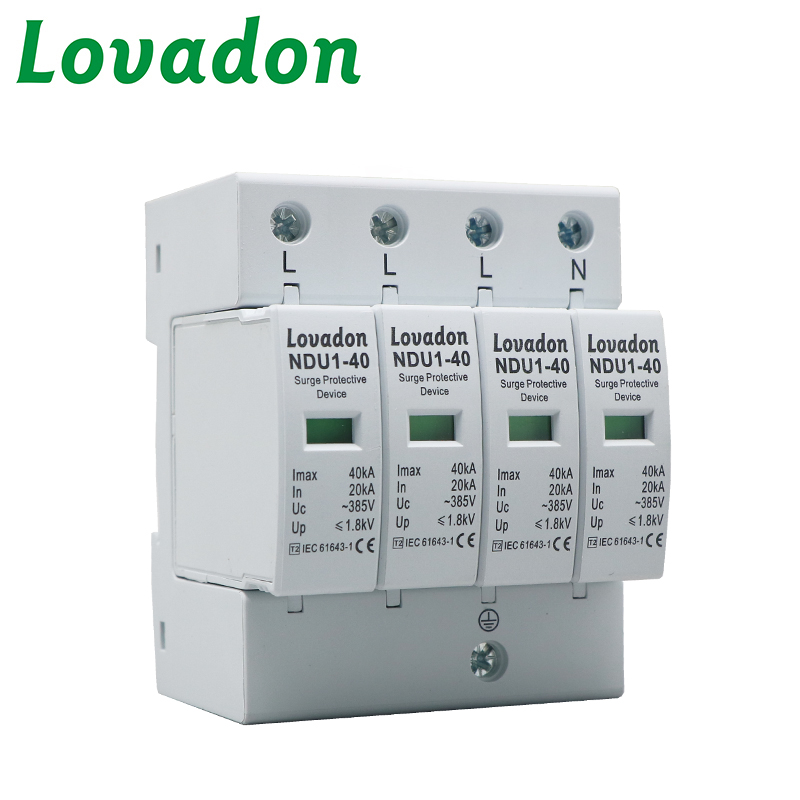

NDU1-40 Surge protector

This series of products is suitable for AC 50/60 Hz, 380V and below the TN-S, TN-CS, TT, IT and other power supply system is based on IEC standard design standard 35mm rail installation, the product temperature control circuit technology, built-in (F) This series of products are suitable for low-voltage BCD lightning protection of buildings, usually installed in the low-voltage lightning protection devices, Floor distribution box, count···

General

This series of products is suitable for AC 50/60 Hz, 380V and below the TN-S, TN-CS, TT, IT and other power supply system is based on IEC standard design standard 35mm rail installation, the product temperature control circuit technology, built-in (F) This series of products are suitable for low-voltage BCD lightning protection of buildings, usually installed in the low-voltage lightning protection devices, Floor distribution box, counter center, telecommunication room, elevator control room, variable control room and distribution box with electronic medical equipment.

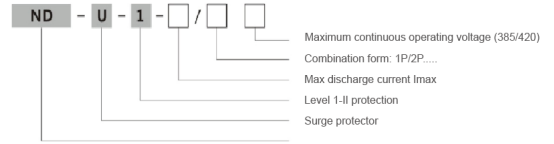

Types of meaning



Dimensions



Technical Parameters

Type & SpecsNDU1-10NDU1-20NDU1-40NDU1-60NDU1-80NDU1-100
Poles1P,2P,3P,4P
Rated Operating Voltage Un(V)220V/380V
Max continuous operating voltage Uc/V275V320V385V385V385V420V
Voltage protection level up(KV)≤1.0≤1.20≤1.80≤2.0≤2.2≤2.8
Nominal discharge current In(8/20μs)KA51020304060
Maximum discharge current Imax(8/20μs)KA1020406080100
L/N(mm²)The cross section of L/N Line448101010
PE(mm²)The cross section of  PE Line6610101616
Fuse or Switch(A)10,16A,25A25A,32A32A,63A63A63A,100A63A,100A
Response times≤25ns
Test StardardIEC61643-1/GB18802.1
Operating Environment-40 ℃ to + 85℃
Max Connection Line35mm2 hard wire/35mm2 strand wire copper line
Recommended Connection Line16mm2 hard wire/25mm2 strand wire copper line
InstallationStandard Rail 35mm
Material of outer coveringBurning -proof Nylon
