General

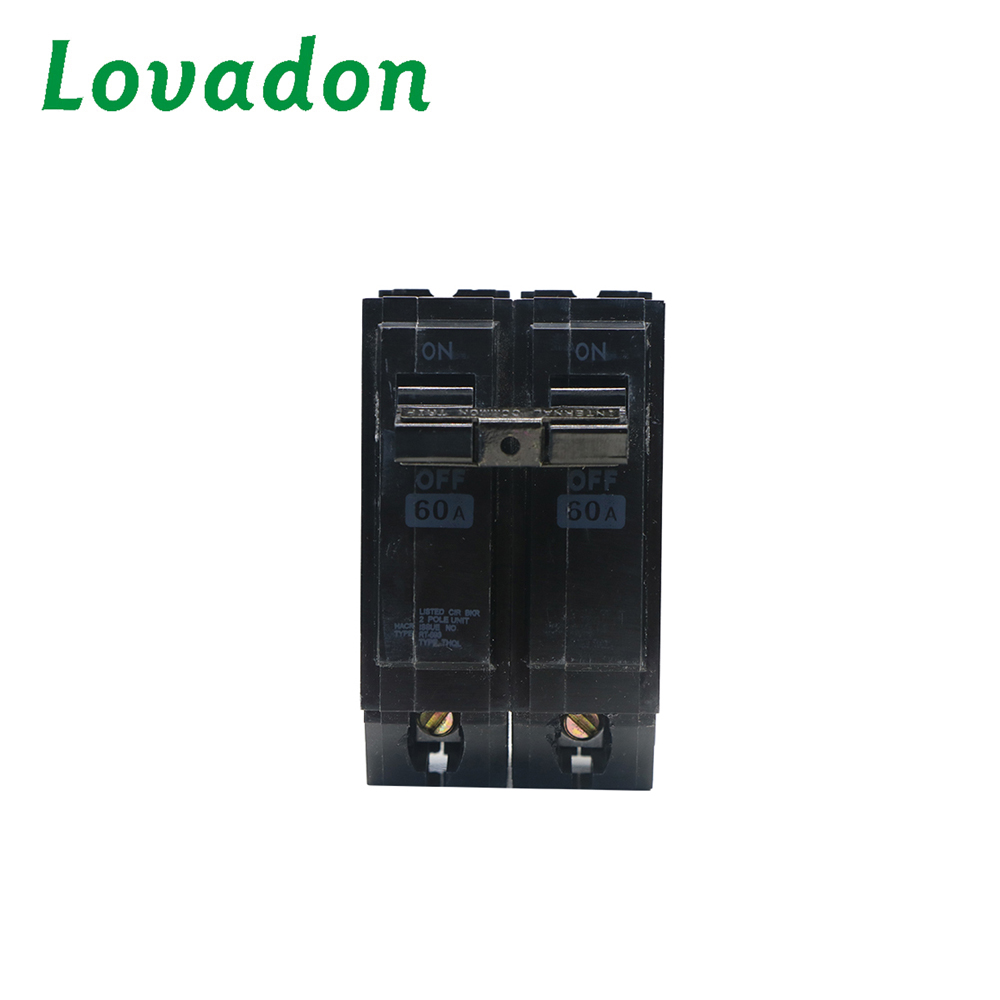

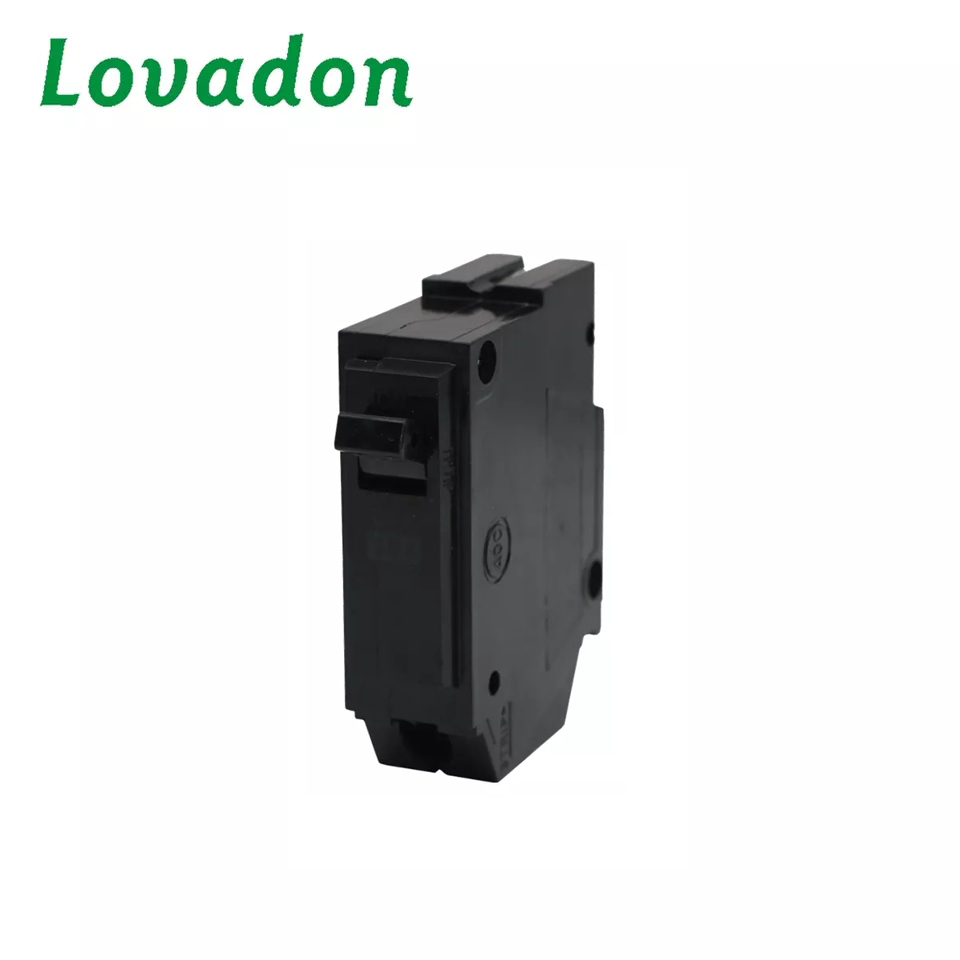

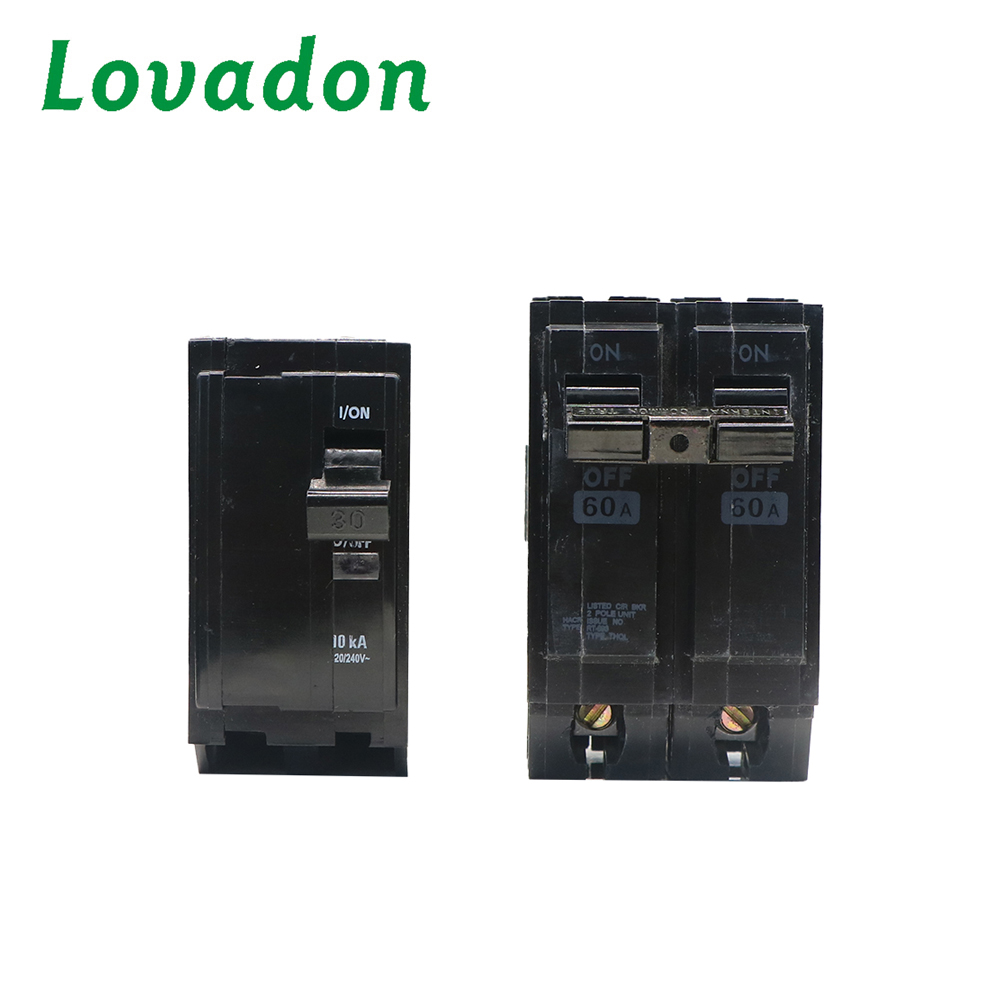

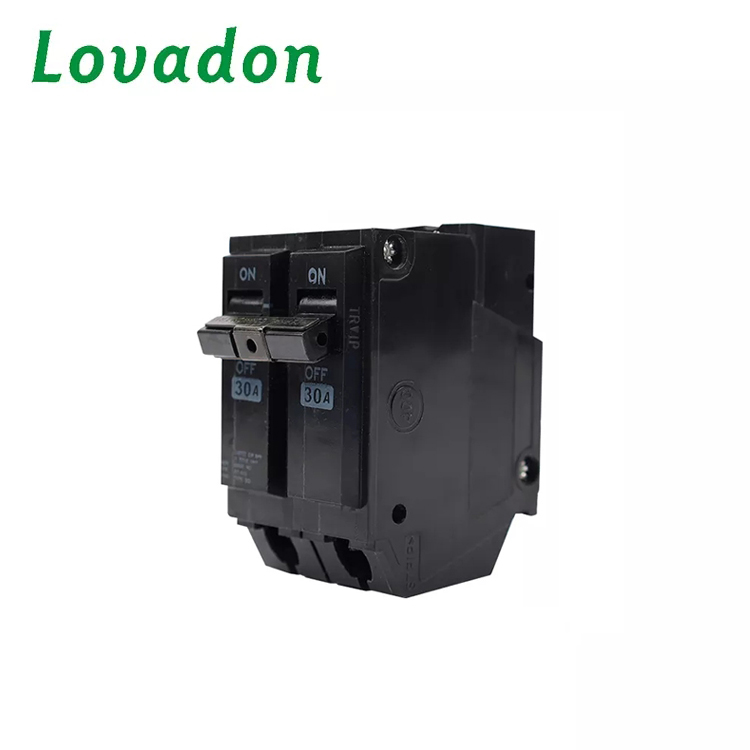

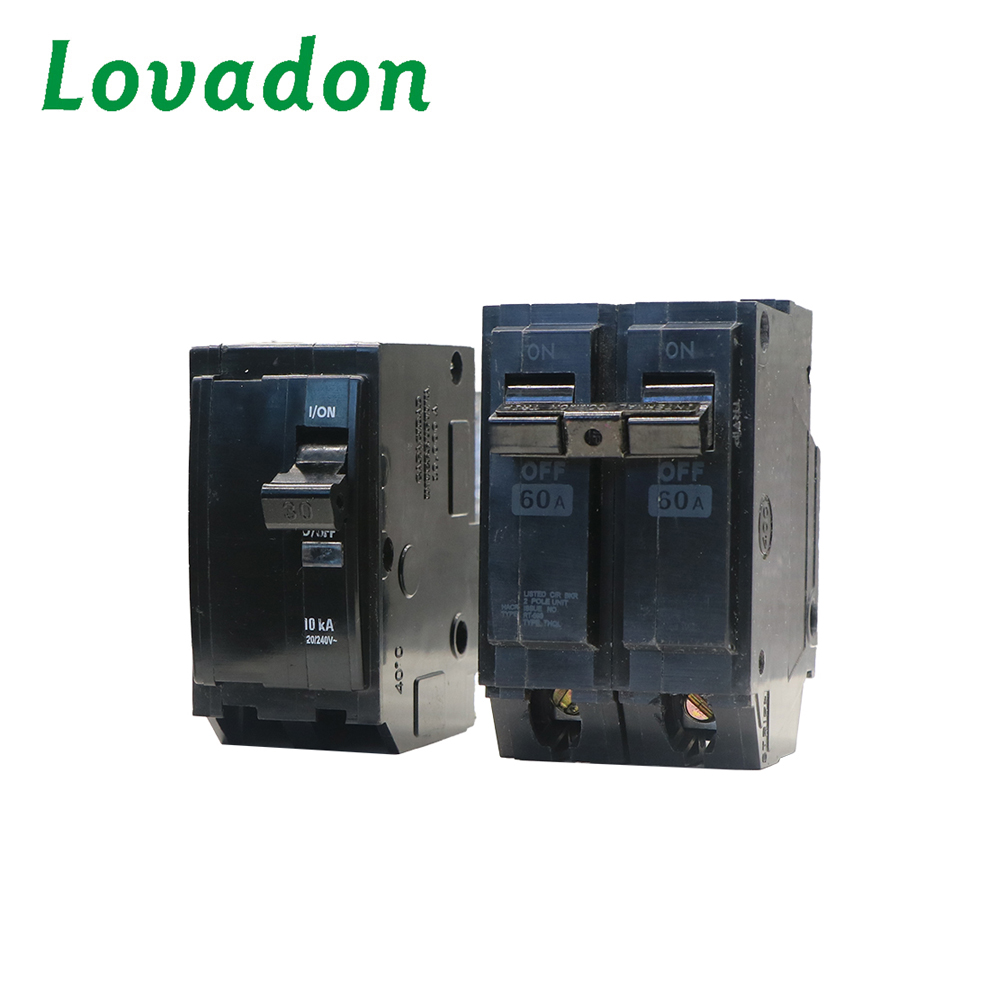

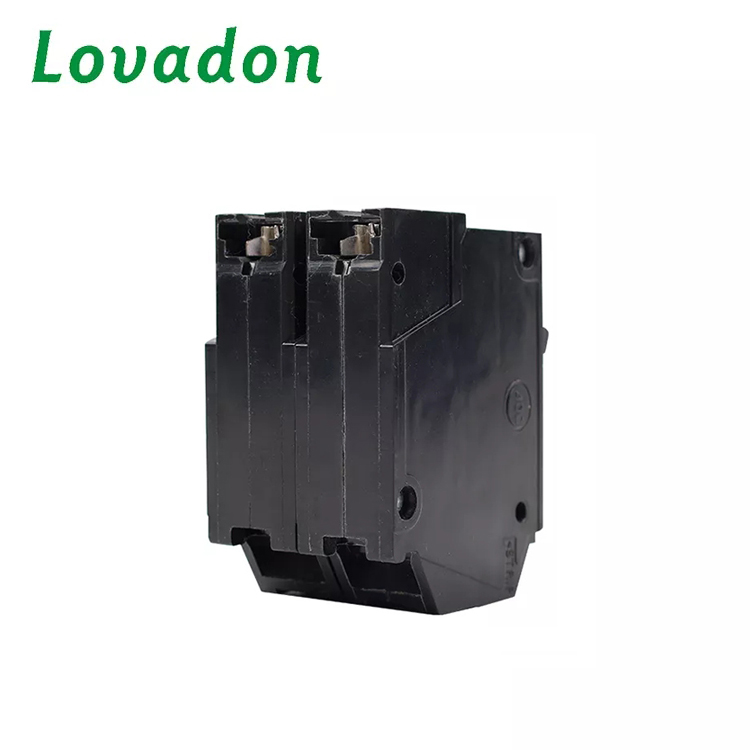

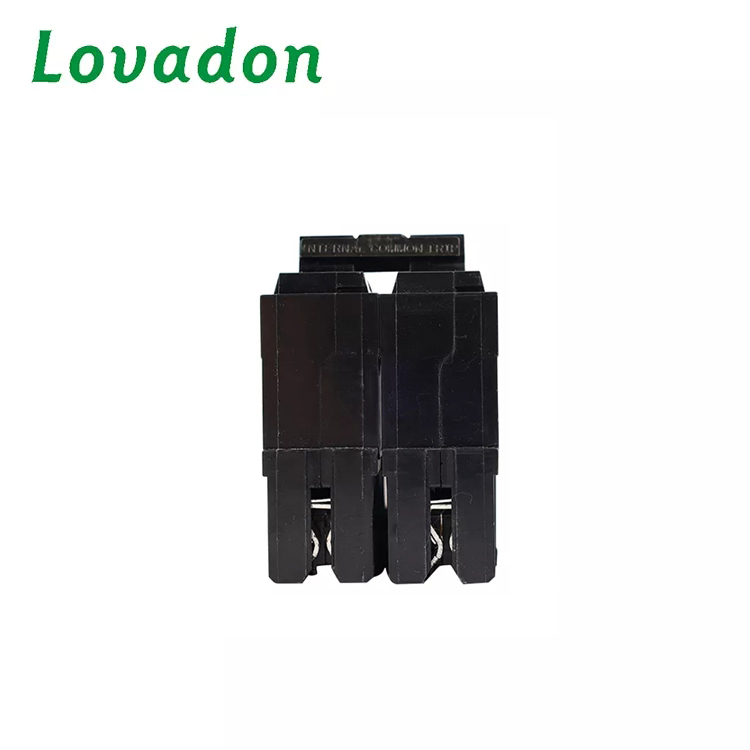

THQL Circuit Breaker is mainly used for AC 50Hz (or 60Hz), It has the functions of overload and short circuit protection, advanced structure, reliable performance, high breaking capacity and beautiful appearance. It is widely used in industrial, commercial, lighting, electrical distribution system .the product meets BS 3871-Pt1 and IEC 60898-1 standards.

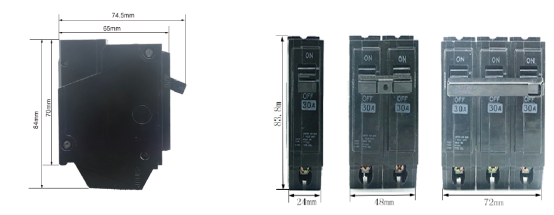

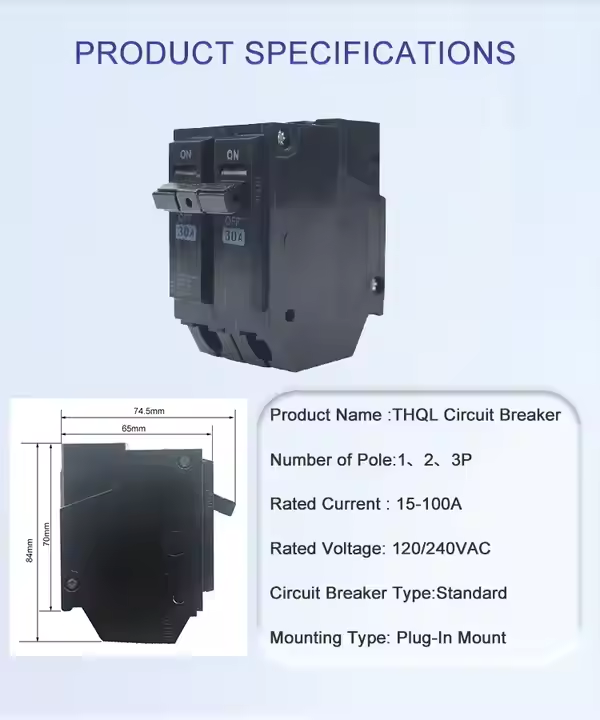

Overall And Mounting Dimensions(mm)
Technical Parameters
| Standard |
|
| IEC60898,BS 3871-Pt1 |
| Electrical fcatures | Rated current In | A | 15-100A |
| Poles | P | 1,2,3 |
| Rated voltage Ue | V | 120(1P),120/240(2P),240/415VAC(3P) |
| Rated frequency | Hz | 50/60 |
| Rated breaking capacity | A | 3000 |
Mechanical features | Electrical life | t | 6000 |
| Mechanical life | t | 14000 |
| Protection degree |
| IP20 |
| Mode of connection |
| Clamping terminal |
| Mounting |
| Clip mounting base |
| Shell material |
| Glass fiber polyester/ phenolic resin |
