Miniature circuit breaker

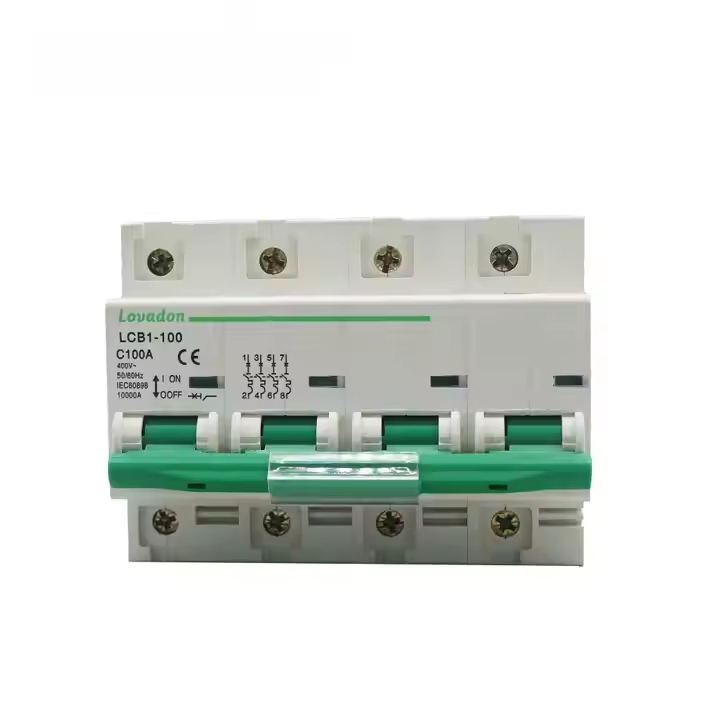

LCB1-100 4P Miniature Circuit Breaker LCB1-100 400V 4P Price High 10kA Breaking Capacity Mini Circuit Breaker

This electrical component features ‌rated currents of 63, 80, 100A‌, with ‌1 to 4 poles‌. It operates at ‌rated voltages of 220/380, 230/400, 240/415V‌ and has an ‌insulation voltage of 500V‌. The ‌rated frequency‌ is 50/60Hz, with a ‌rated breaking capacity‌ up to 600,010,000A. It boasts a ‌rated impulse withstand voltage of 6000V‌ and a ‌dielectric test voltage of 2.5kV‌. ‌Pollution degree is 3‌, with ‌thermo-magnet···
Request A Quick Quote

General

This electrical component features ‌rated currents of 63, 80, 100A‌, with ‌1 to 4 poles‌. It operates at ‌rated voltages of 220/380, 230/400, 240/415V‌ and has an ‌insulation voltage of 500V‌. The ‌rated frequency‌ is 50/60Hz, with a ‌rated breaking capacity‌ up to 600,010,000A. It boasts a ‌rated impulse withstand voltage of 6000V‌ and a ‌dielectric test voltage of 2.5kV‌. ‌Pollution degree is 3‌, with ‌thermo-magnetic release characteristics of 8-12In, C, D‌.

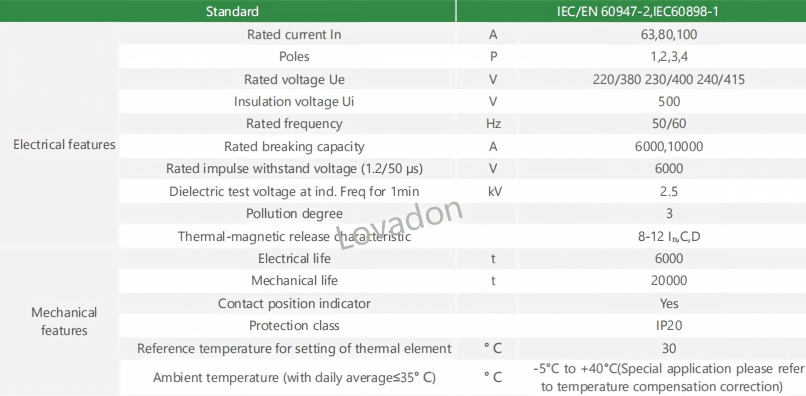

Technical Parameters

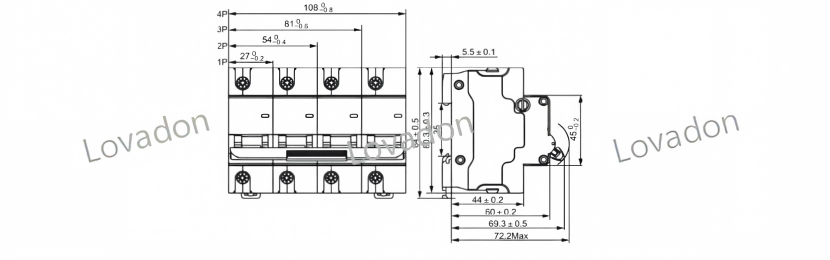

Dimensions (mm)
