Miniature circuit breaker

LCB7-63H 1P Single Pole MCB 240V 10KA Icn Circuit Breaker With 10000 Mechanical Operations for Residential Distribution Board

LCB7-63H miniature circuit breaker is mainly used for AC 50Hz (or 60Hz), the rated working voltage is 415V, and the rated short circuit breaking capacity is not more than 10000A in the protective distribution lines. It has the functions of overload and short circuit protection, advanced structure, reliable performance, high breaking capacity and beautiful appearance. The product meets GB10963.1 and IEC 60898-1 standardsTechnical Paramet···
Request A Quick Quote

General

LCB7-63H miniature circuit breaker is mainly used for AC 50Hz (or 60Hz), the rated working voltage is 415V, and the rated short circuit  breaking capacity is not more than 10000A in the protective distribution lines. It has the functions of overload and short circuit protection,  advanced structure, reliable performance, high breaking capacity and beautiful appearance. The product meets GB10963.1 and IEC  60898-1 standards

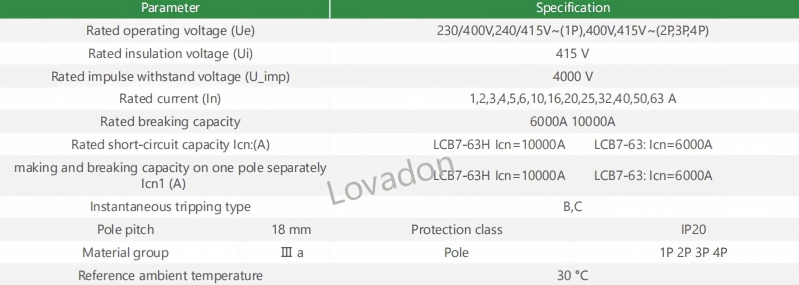

Technical Parameters

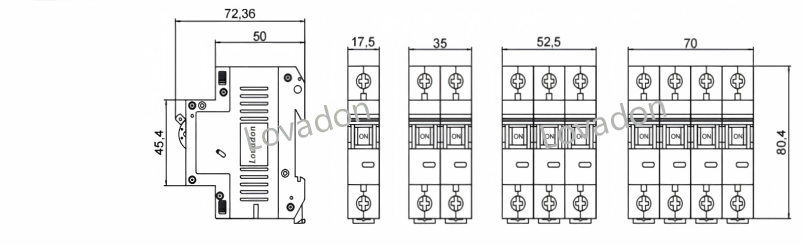

Dimensions (mm)
