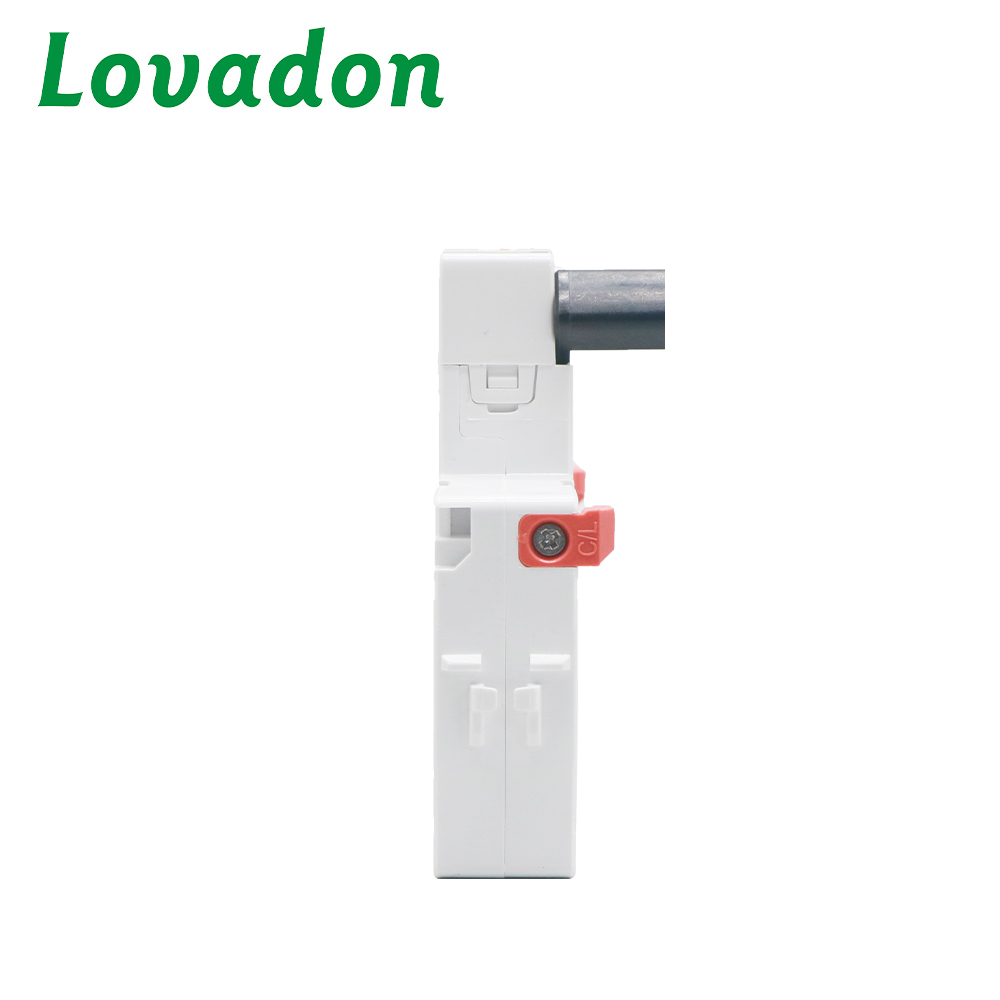

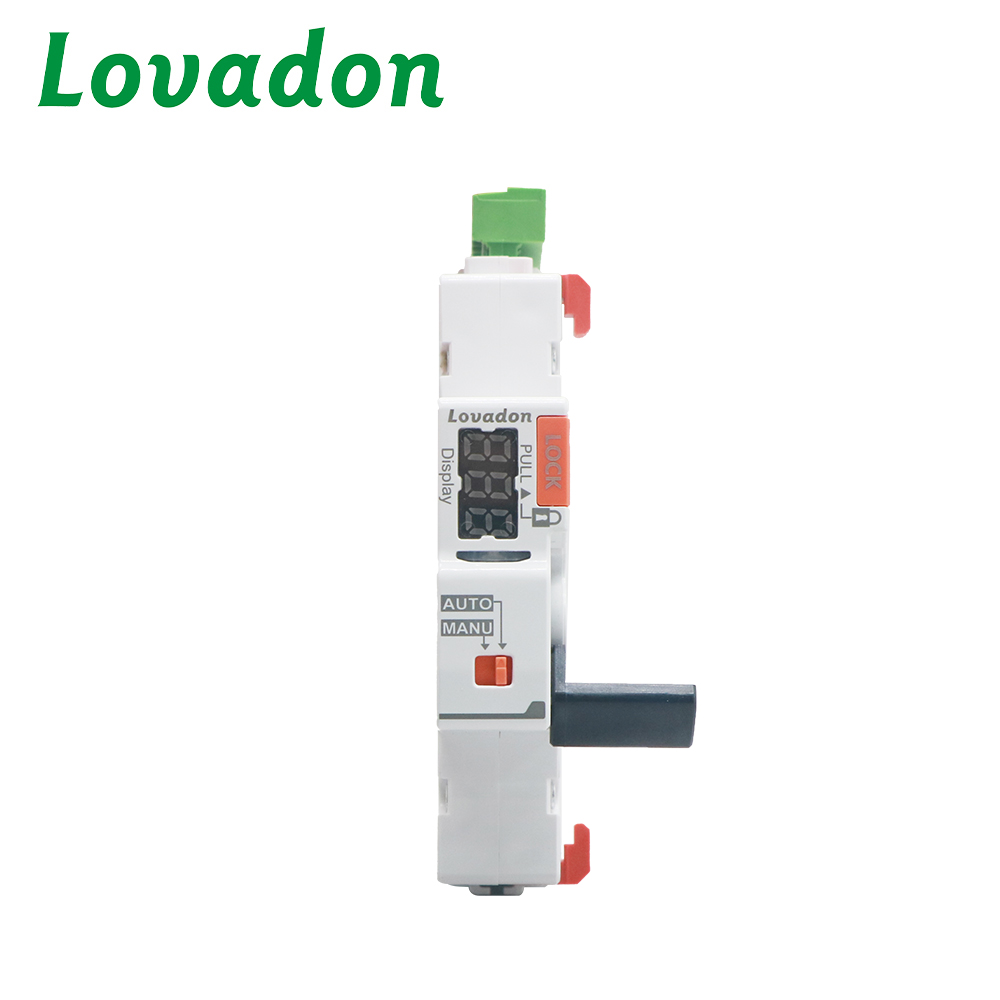

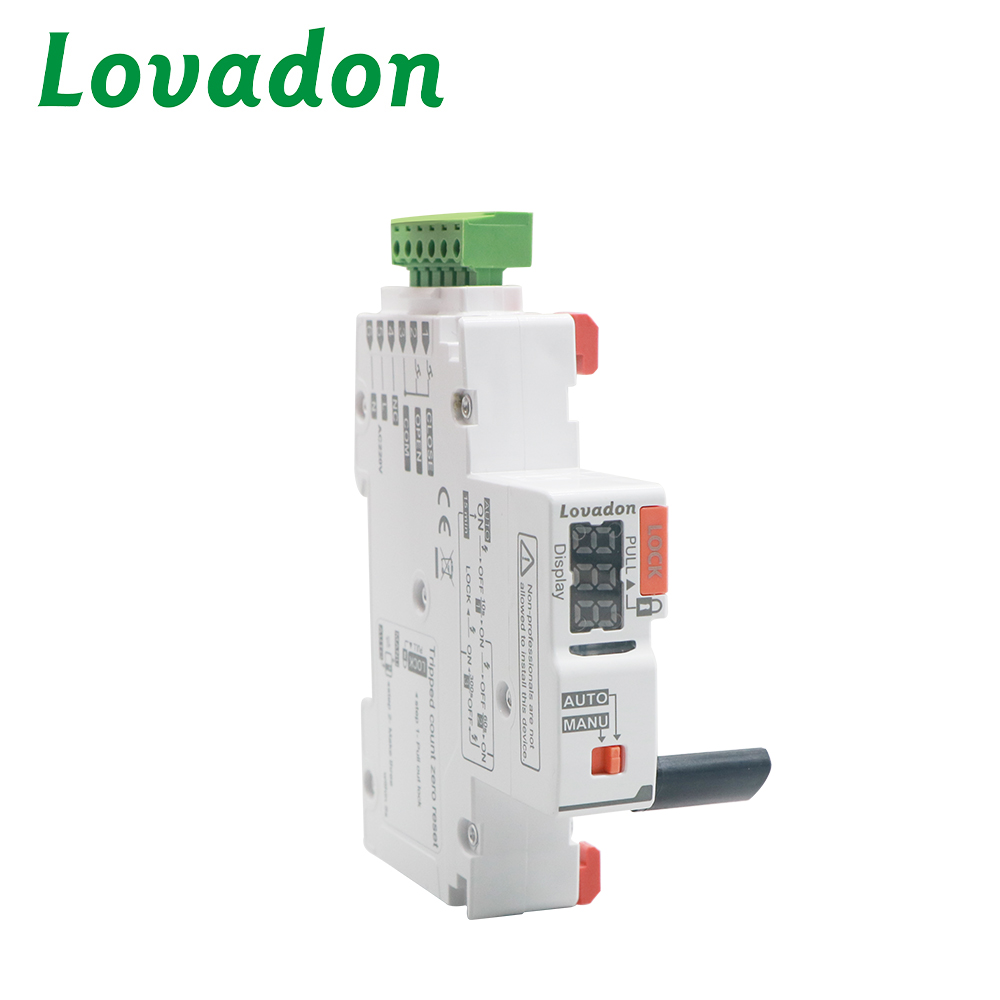

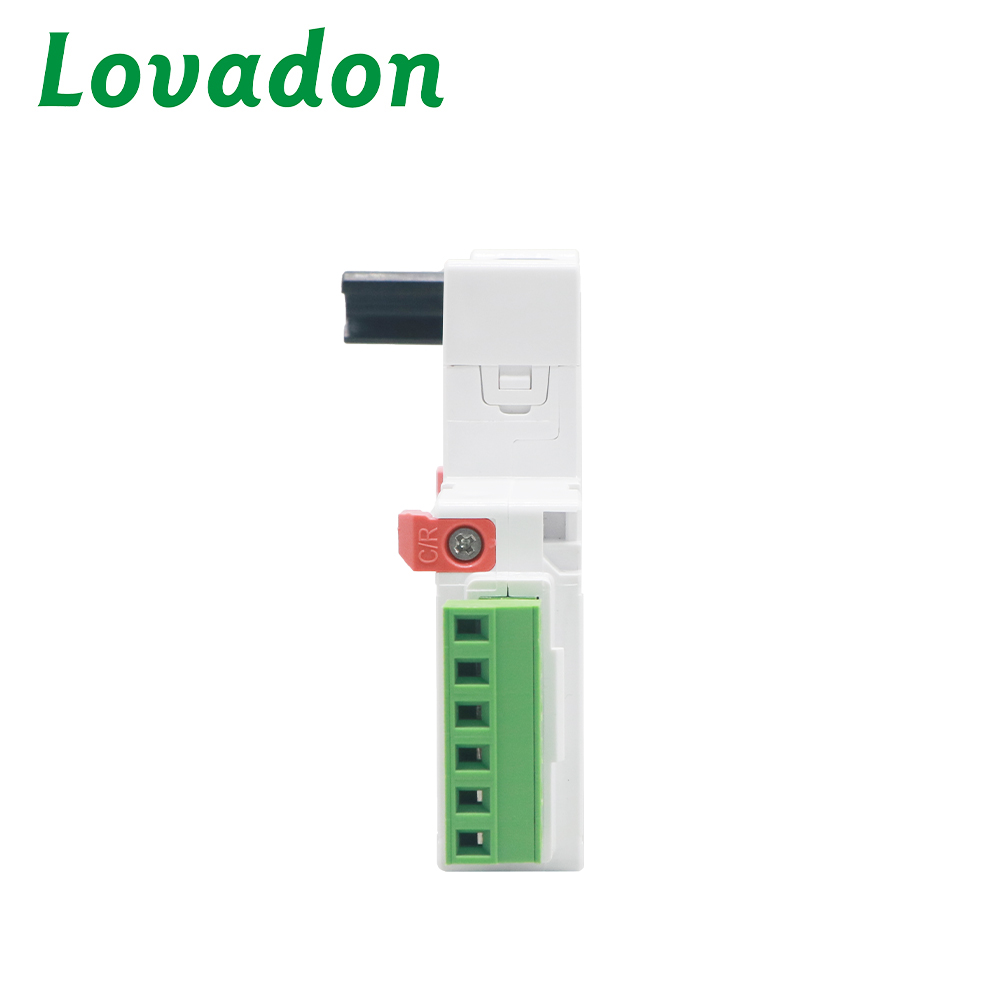

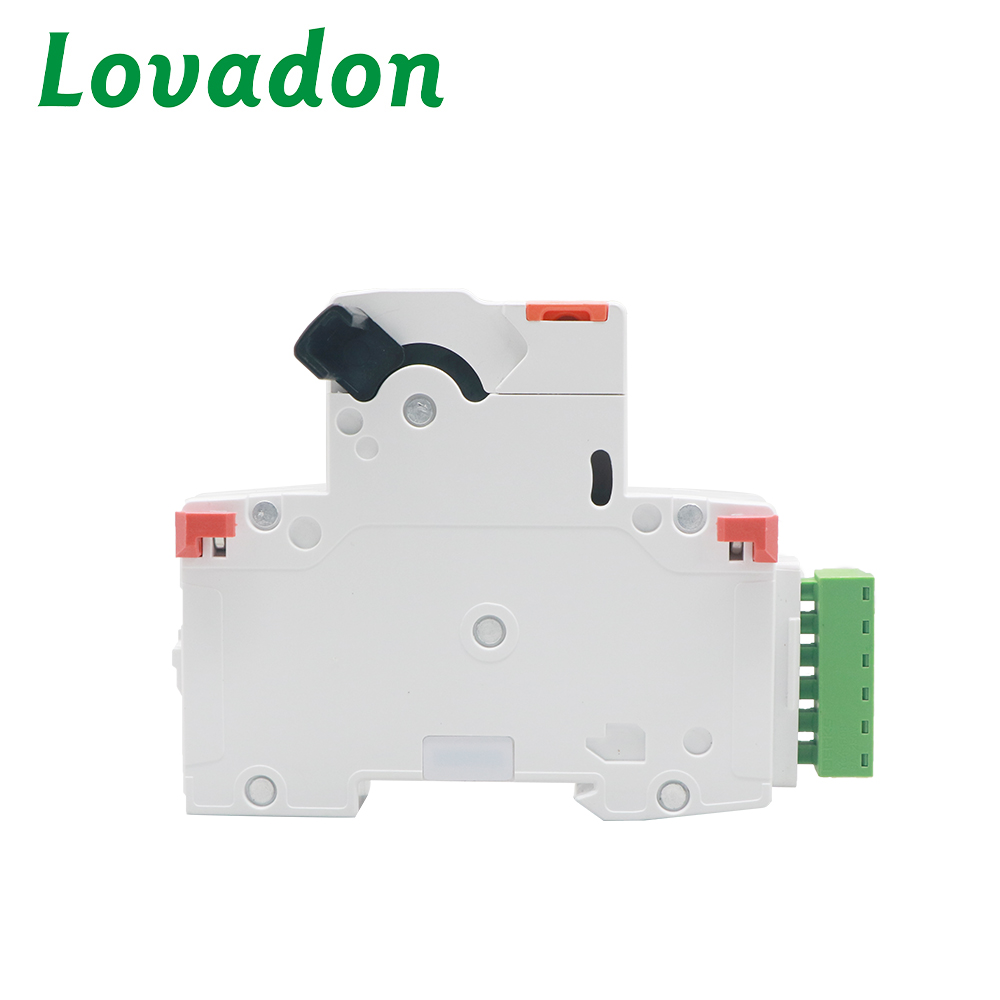

LCBR-63 Smart Photovoltaic Recloser LCBR 63 Remote Control Auto Reclosing Circuit Breaker for Solar System Grid Connection

Product Details

General

Self-recovering photovoltaic-specific recloser actuator: compatible with LC60N miniature circuit breakers. This device upgrades the circuit breaker with intelligence without affecting the main body of the breaker. It can perform remote automatic closing and opening control via MODBUS 485, while also providing overload and short-circuit protection for the line. It also features parameterizable configurable functions that can be determined automatically by the MCU, enabling the functionality of disconnecting during a power outage and automatically reconnecting upon the arrival of power. It is currently widely used in photovoltaic grid-connected AC distribution boxes, as well as in situations where personnel are difficult to access, where maintenance personnel cannot arrive promptly, and where there is a high requirement for uninterrupted power supply.

Technical Parameters

Compliance Standards	EN 50155, GB/T 24338.4-2018, EN 45545-2, IEC 61373

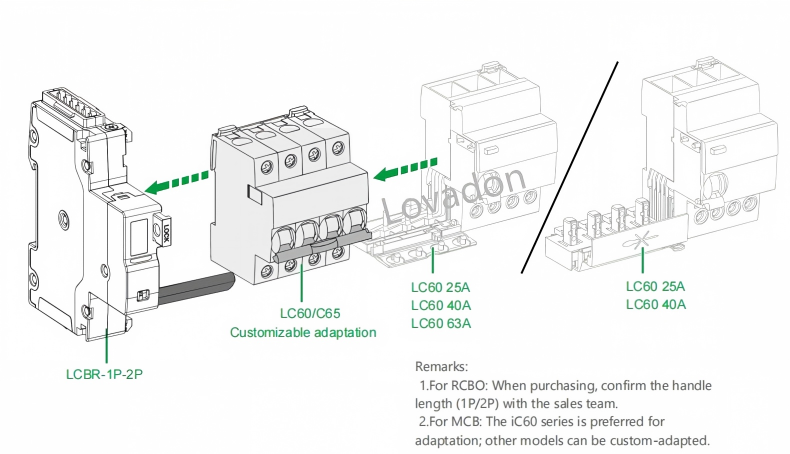

Compatibility	MCB 1P-4P
Electrical Characteristics
Operating Voltage	230V AC (70%-125%) 24-48V DC (Optional)
Control Signal	MODBUS-RS485, Wet Contact 230V High Level/Pulse Signal (Optional)
Over/Under Voltage Function	160-275V +5V (Optional)
Timing Function	Available (Optional)
Digital Display	3-digit Segment Display: Voltage, Closing/Opening Times, Fault Statu
Effective Control Signal Duration	>400ms
Closing Operation Time	<1s
Opening Operation Time	<0.5s
Control Circuit Cable Length	≤1500m

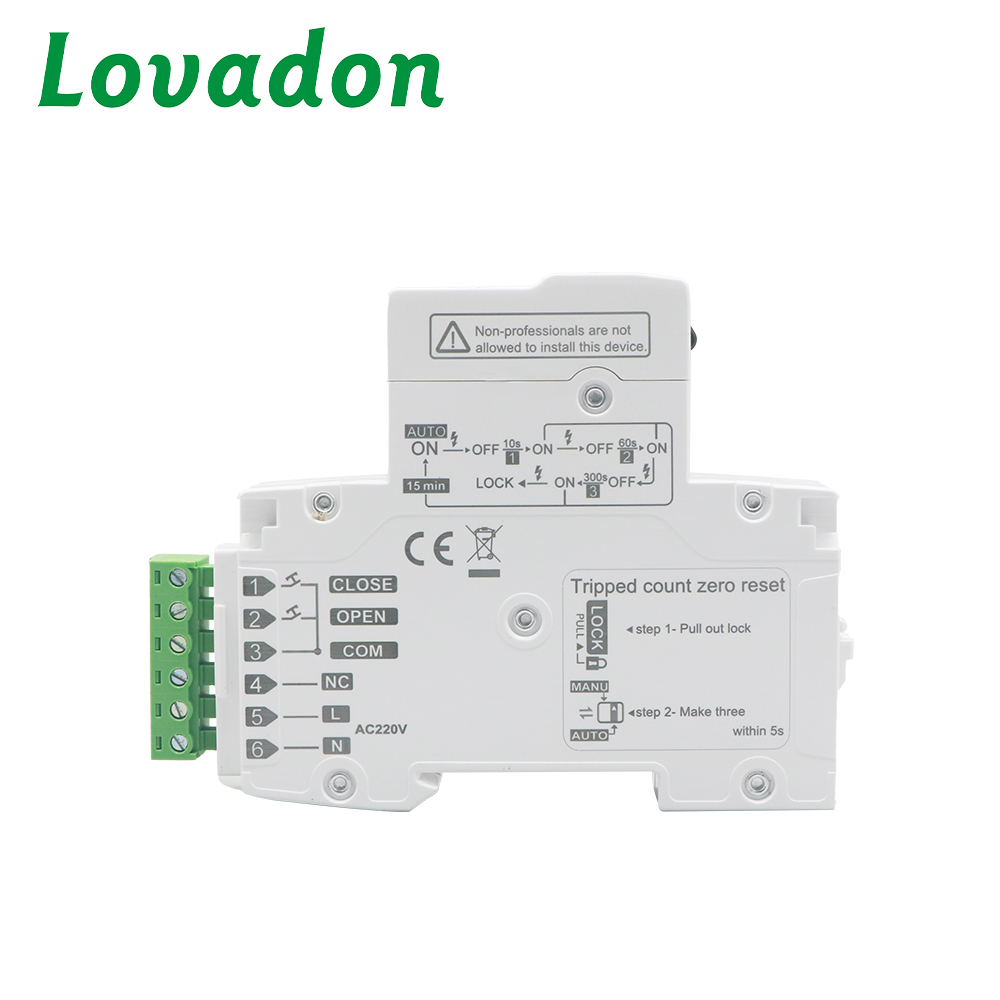

Current-Carrying Capacity of Auxiliary Contacts (Terminals 8-9-10	1CO, Minimum Operating Current 3mA (24VDC) (Resistive Load (Optional）
Current-Carrying Capacity of Signal Contacts (Terminals 5-6-7)	Maximum Operating Current 2A (30V DC), 0.5A (125V AC) (Optional)
Power Consumption	≤1.5VA (Static); ≤25VA (Dynamic)
Rated Insulation Voltage	400V
Uimp:Rated Impulse Withstand Voltage Uimp
(Between S2C-RM DC and MCB)	4kV (4.9kV at Sea Level)
Self-Locking Protection	3CO within 10s / 4CO within 20s / 6CO within 30s: The product will activate self-locking protection and automatically recover after 40s
Electrical Life	10,000 Cycles, 3 Cycles per Minute
Mechanical Characteristics
Indicator Light	Green: Normal Status
	Red: MCB Overcurrent Fault
Automatic/Manual Switching	Auto: Remote Control for Closing/Opening Enabled
	Manual: Remote Control for Closing/Opening Disabled
Mechanical Life	10000
Ingress Protection (IP) Rating	IP20
Hazard Class According to EN 45545-2	R26/HL3
Shock and Vibration Resistance According to IEC 61373	Category 1 - Class A/B - Vehicle Body Mounting
Damp Heat Resistance (IEC/EN 60068-2-30)	28 Cycles (55°C/90-96%, 25°C/95-100%)
Ambient Temperature	-25...+70°C
Storage Temperature	-40...+70°C

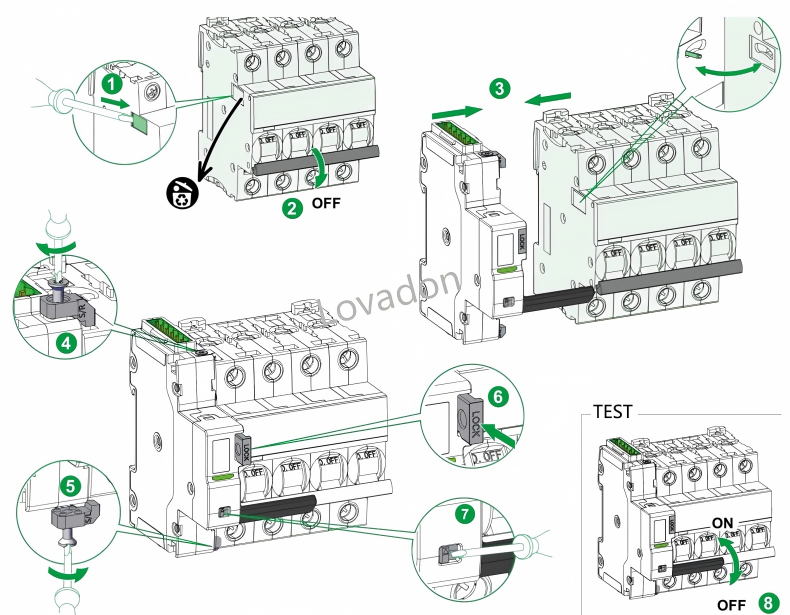

Installation and Wiring
Wiring Capacity of Power and Control Signal Terminals	28-12AWG 2.5mm²
Wiring Capacity of Auxiliary Signal Terminals	28-14AWG 1.5mm²
DIN Rail Mounting	DIN Rail EN 60715 (35 mm)
Installation Position: Can be Installed at Any Position on the DIN Rail	Any
