  • LCB9-32 1P Single-Phase 1-Pole 30ma RCBO Residual Current Circuit Breaker Miniature Circuit Breaker with Overcurrent Leakage Protection
  • LCB9-32 1P Single-Phase 1-Pole 30ma RCBO Residual Current Circuit Breaker Miniature Circuit Breaker with Overcurrent Leakage Protection
Residual current circuit breaker

LCB9-32 1P Single-Phase 1-Pole 30ma RCBO Residual Current Circuit Breaker Miniature Circuit Breaker with Overcurrent Leakage Protection

The ‌RCBO‌ features a model number LCB9-32 1P, with a rated voltage of ‌240V‌ and a rated current range of ‌1A-32A‌. It operates at a frequency of ‌50/60Hz‌ and complies with the ‌IEC/EN 61009-1‌ standard. Made of ‌PA66/PC material‌, it boasts a mechanical life of ‌20000 times‌. Certified with ‌ISO9001‌, this white-colored RCBO offers reliable protection.Technical Parameters
Request A Quick Quote

General

The ‌RCBO‌ features a model number LCB9-32 1P, with a rated voltage of ‌240V‌ and a rated current range of ‌1A-32A‌. It operates at a frequency of ‌50/60Hz‌ and complies with the ‌IEC/EN 61009-1‌ standard. Made of ‌PA66/PC material‌, it boasts a mechanical life of ‌20000 times‌. Certified with ‌ISO9001‌, this white-colored RCBO offers reliable protection.

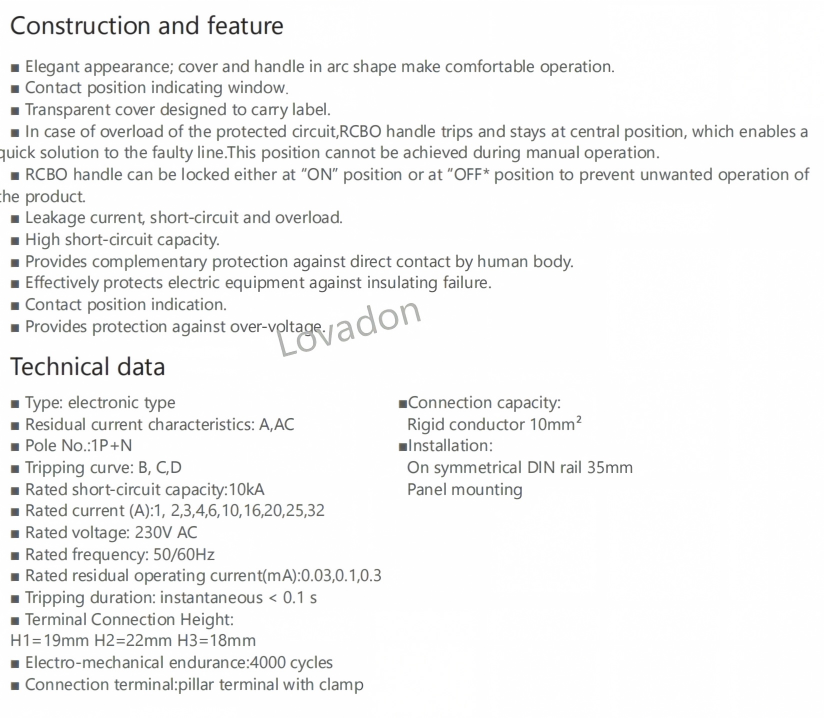

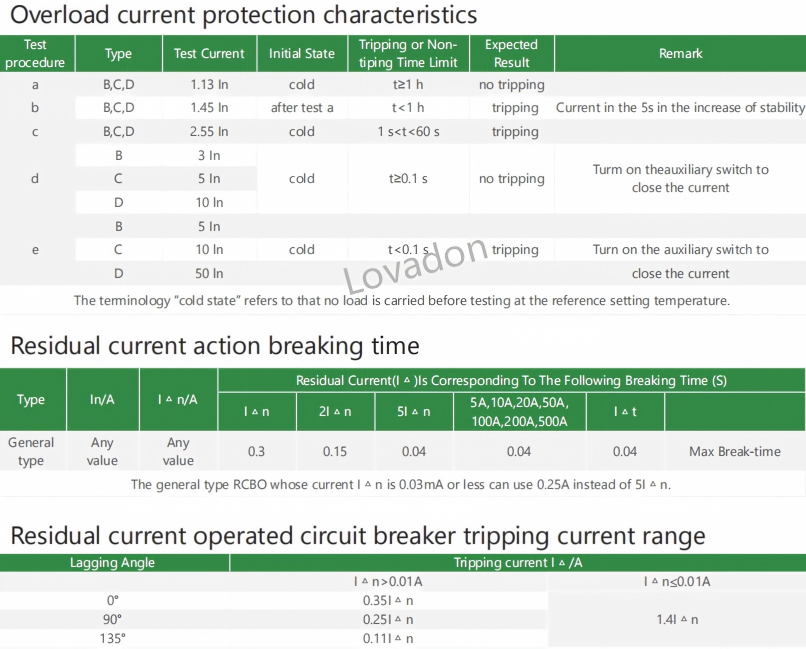

Technical Parameters
