General

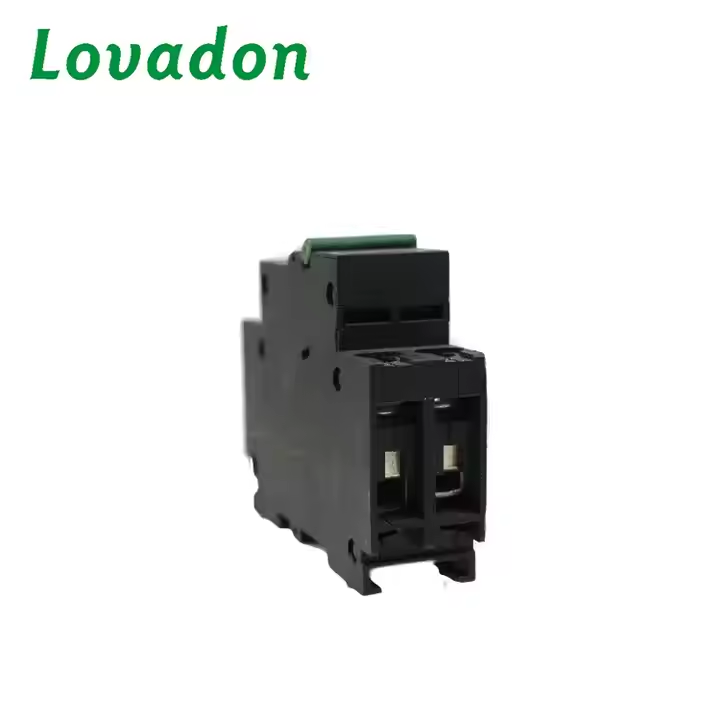

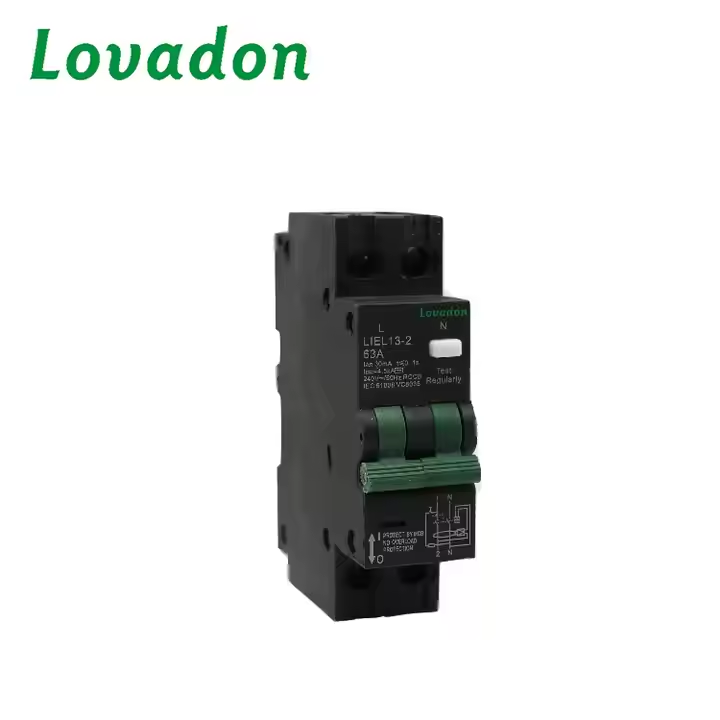

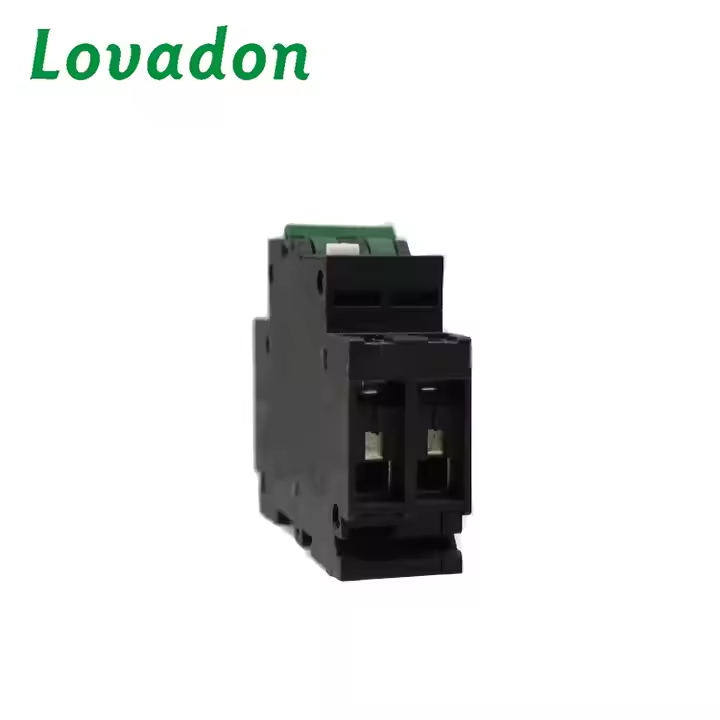

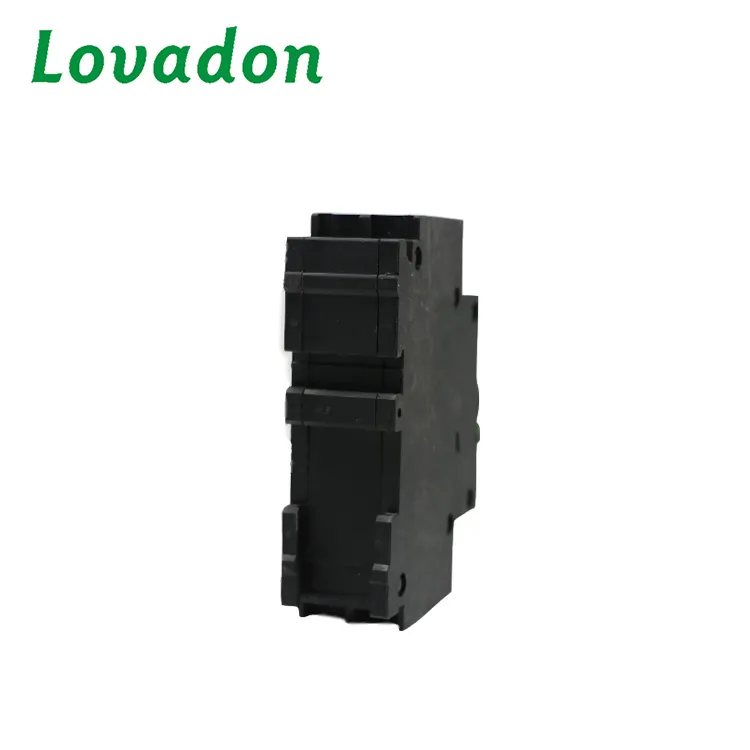

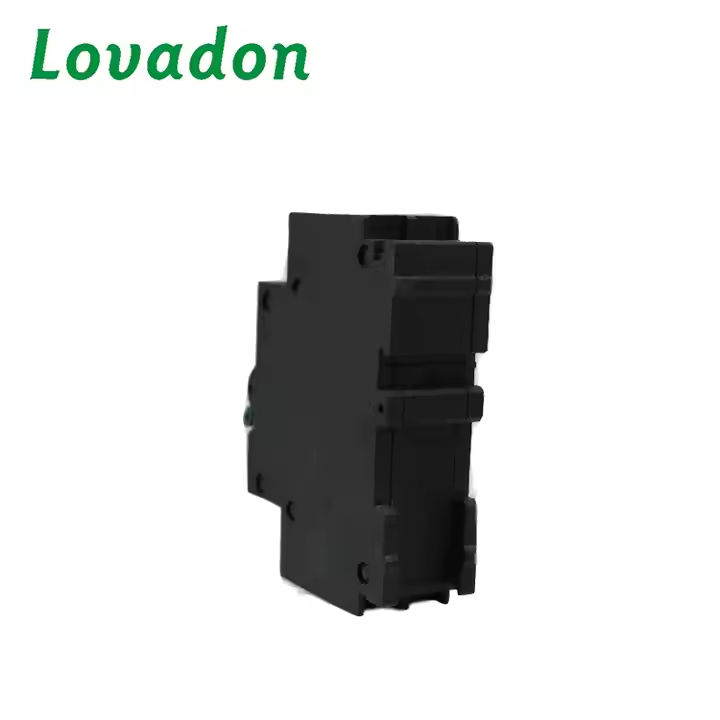

The Lovadan LIEL13-2 RCCB features a rated current of 63A. It's designed to safeguard electrical circuitsagainst earth faults. Operating on a tripping mechanism, it trips when residual current exceeds a safety threshold.
Equipped with a test button, it ensures functionality in fault scenarios. Compliant with IEC 60898 and VDE 0620, this RCCB guarantees international safety standards for residential and commercial use.
Technical Parameters
| Model Number | LIEL13 2P |
| Type | MCB, RCCB, RCBO, Other |
| Rated Frequency (Hz) | 50/60 Hz |
| Protection | Li, Other |
| Rated current | 16/25/32/40/63A |
| Rated voltage | AC230V |
| Rated conditional short circuit current | 3000A to 6000A |
| Mechanical Life | 10000 |
| Material | PA66 |
| Standard | IEC/EN 90947-2 |
| Certificate | ISO9001 |
Yueqing Lovadon Electric Co., Ltd.
