Residual current circuit breaker

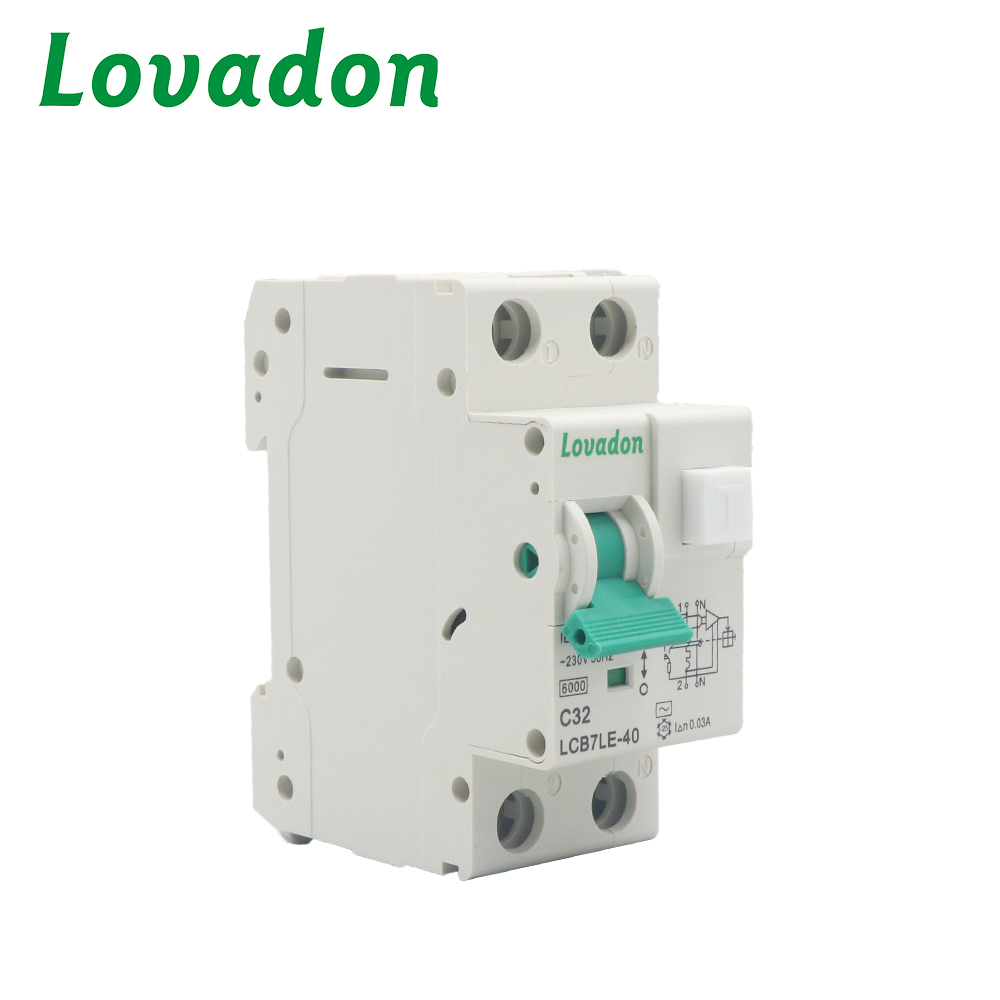

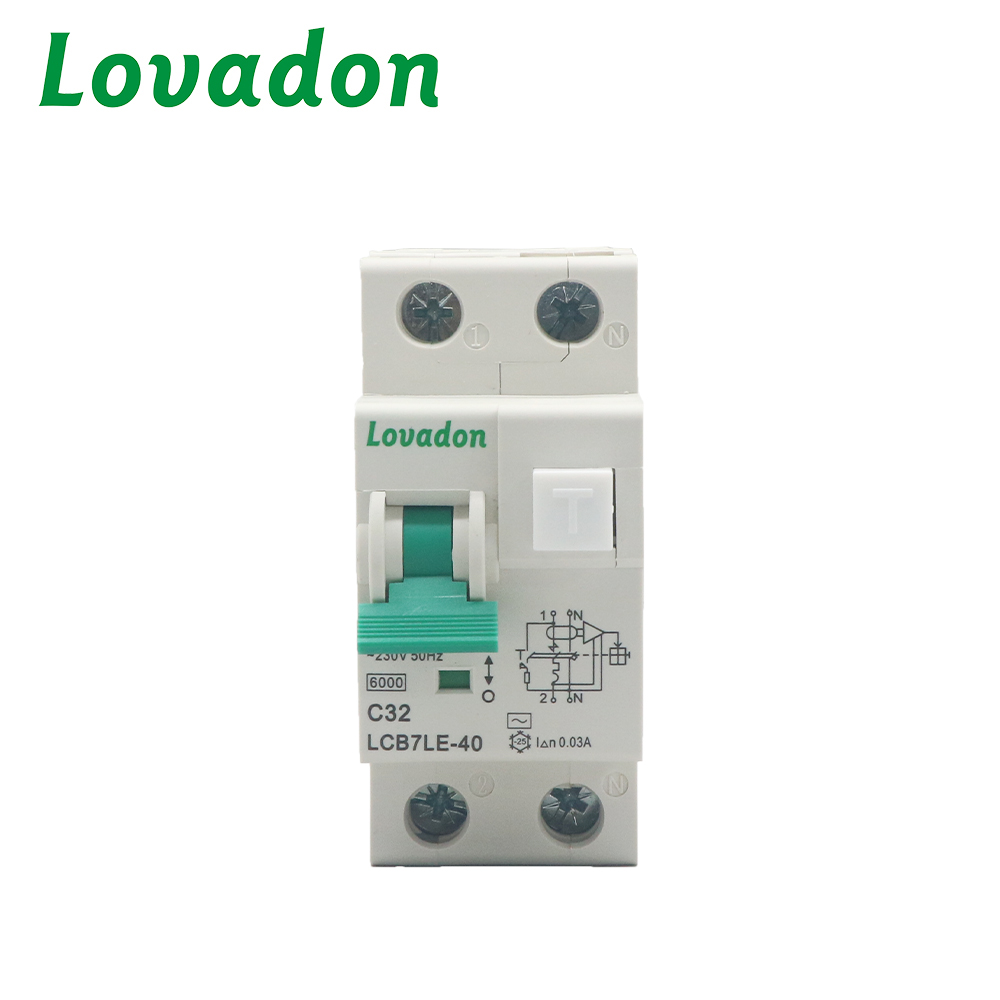

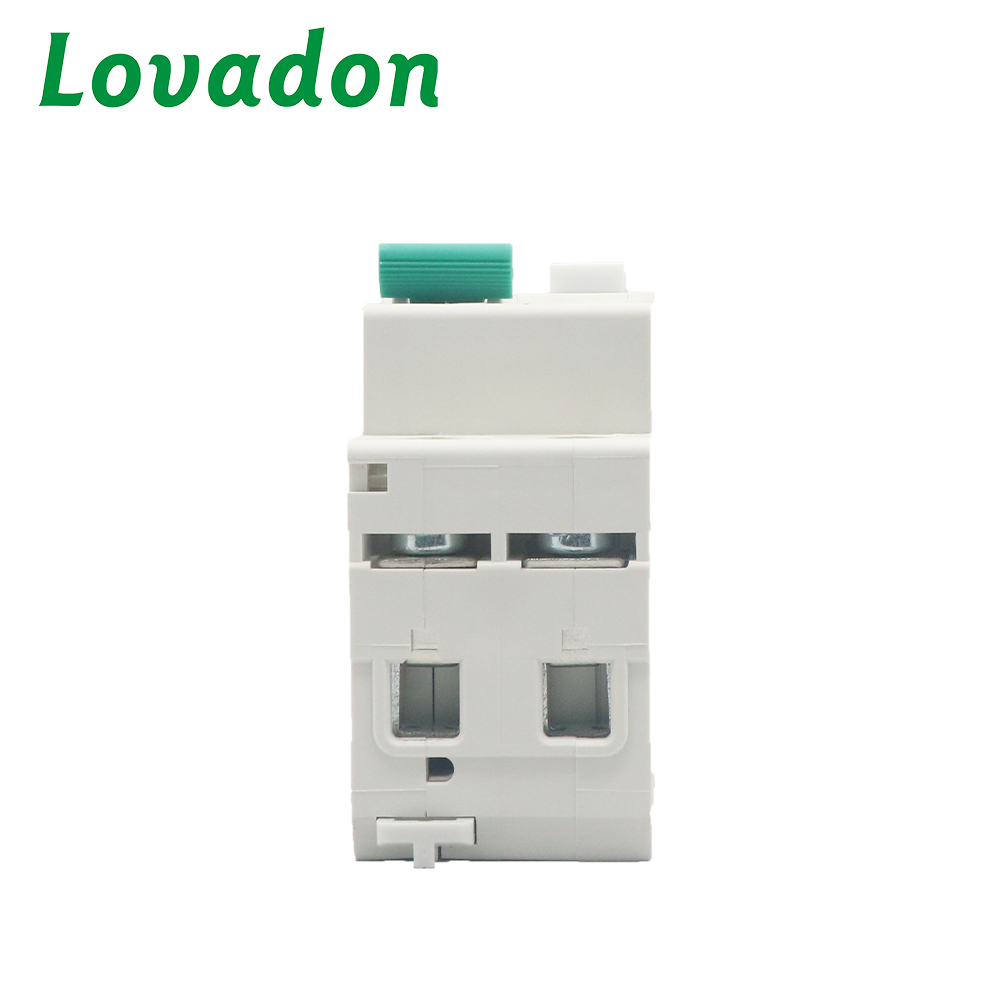

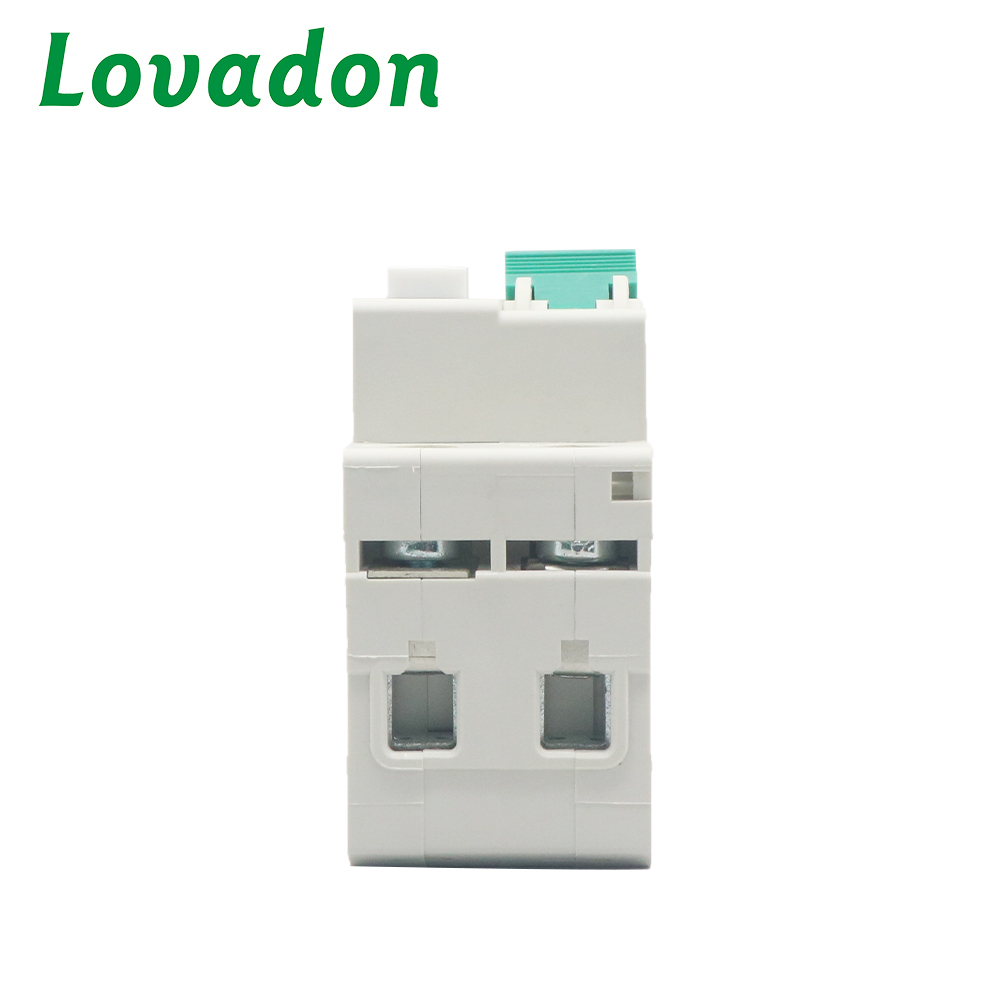

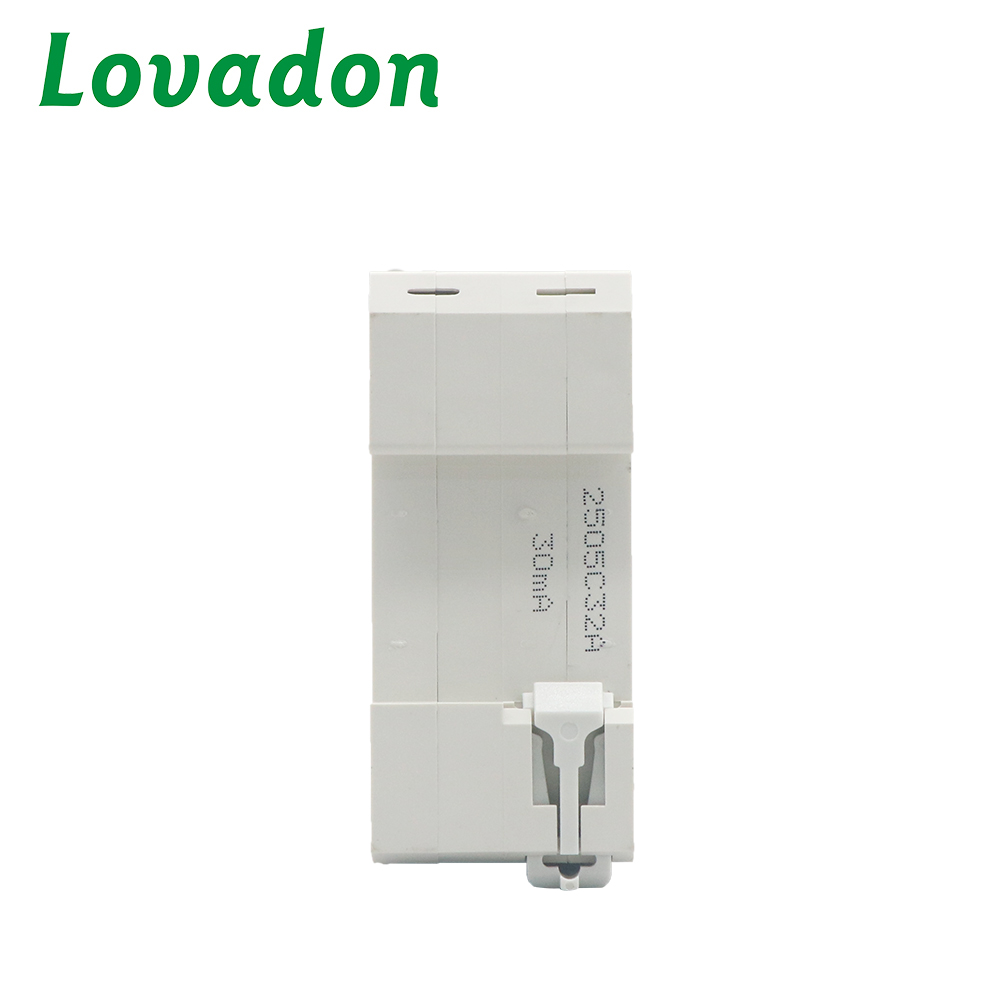

LCB7LE-40 1P+N RCBO 1P+N 6-40A 30-300mA Adjustable Overcurrent Earth Leakage Protection Circuit Breaker 6000A IEC61009

LCB7LE-40 is a residual current circuit breaker with overcurrent protection (RCBO), intended for AC 50/60 Hz circuits. Its rated operational voltage is 230/240 V, and the rated short-circuit breaking capacity is up to 10,000 A. The device provides overload and short-circuit protection with a compact structure, reliable performance, and high breaking capacity. Compliant with GB16917 and IEC61009.Technical ParametersDimensions (mm)
Request A Quick Quote

General

LCB7LE-40 is a residual current circuit breaker with overcurrent protection (RCBO), intended for AC 50/60 Hz circuits. Its rated operational voltage is 230/240 V, and the rated short-circuit breaking capacity is up to 10,000 A. The device provides overload and short-circuit protection with a compact structure, reliable performance, and high breaking capacity. Compliant with GB16917 and IEC61009.

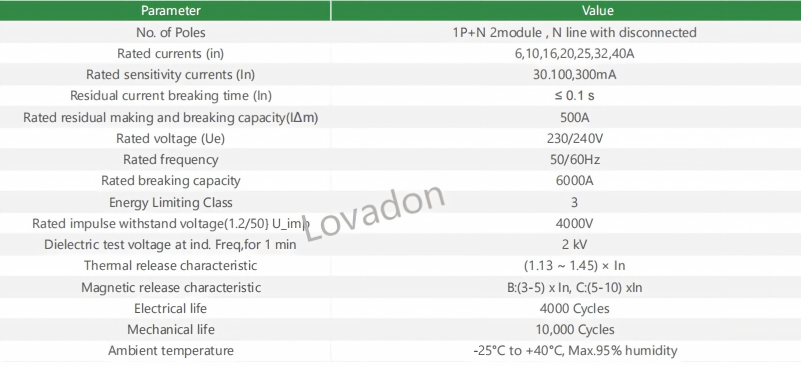

Technical Parameters


Dimensions (mm)
