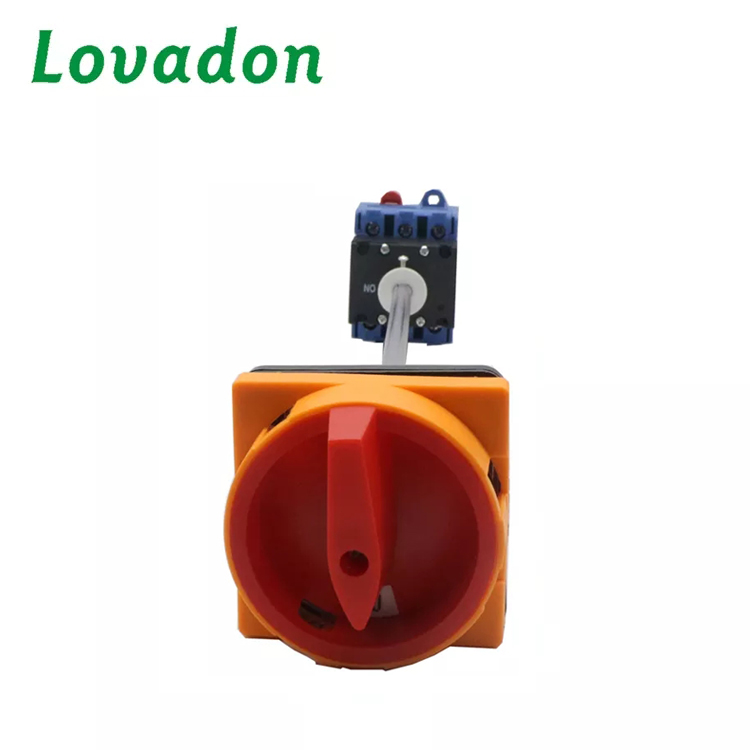

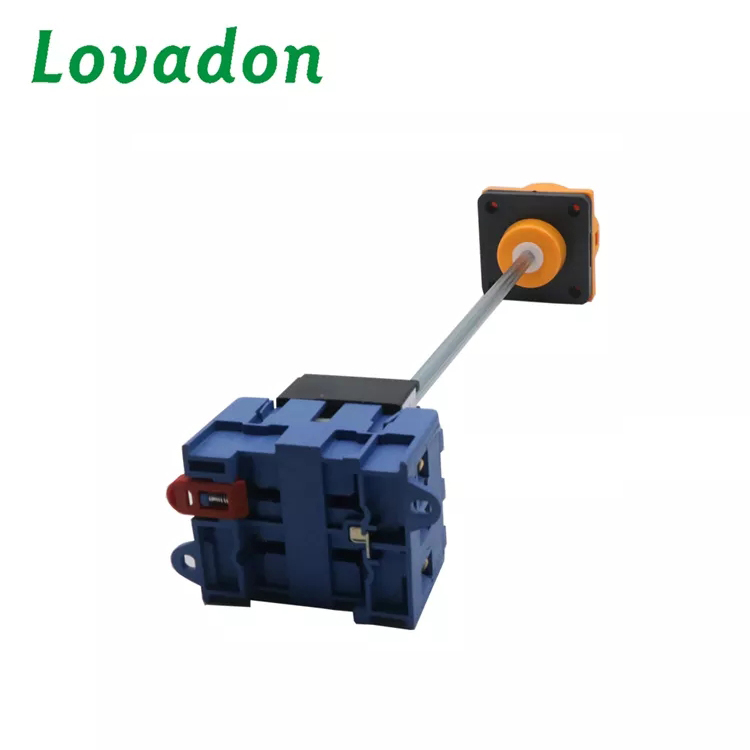

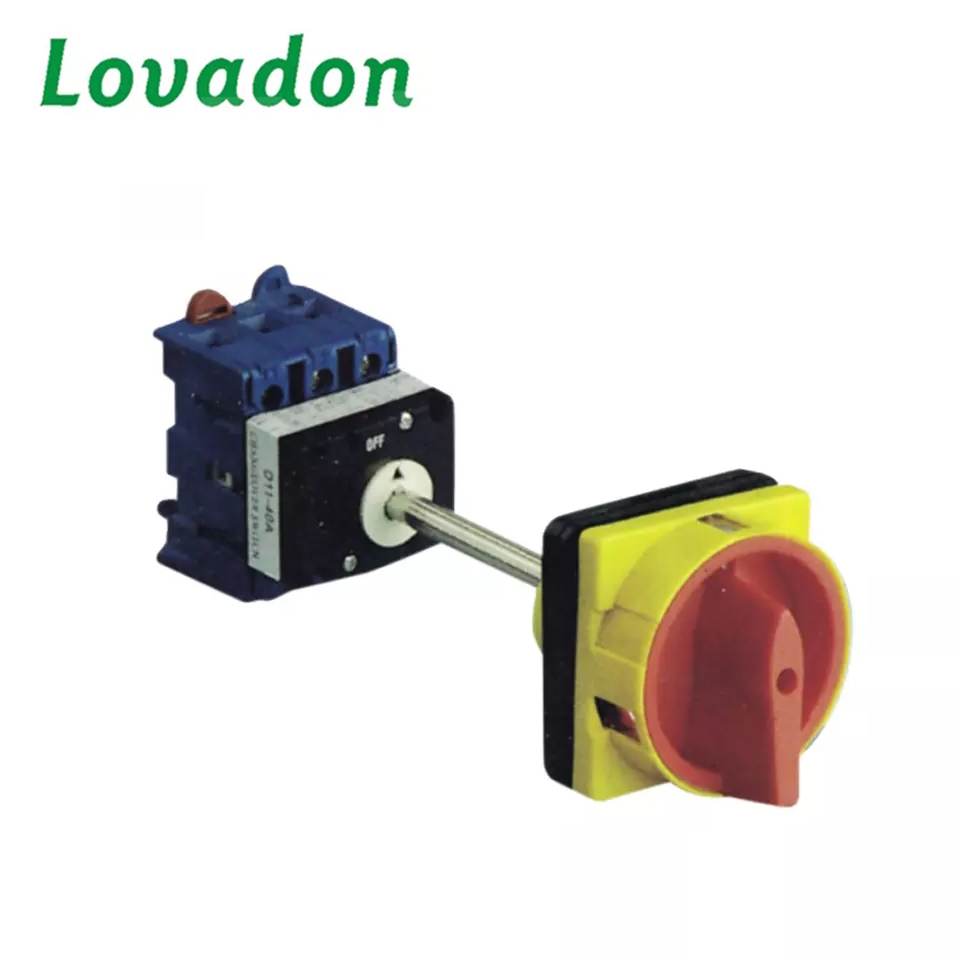

LLD11 Universal Changeover Switch

Request A Quick Quote

Technical Parameters

Application category

IEC/BS/VDE rated nominal values
Control current or power      switch typeHeating current IthResistive load Ac21Ac3 occasional switchover motor or high inductive loadAc3 direct on-line starting motor
3X220
~240V		3X380
~440V		3X220
~240V		3X380
~440V
GLD11-2525A25A4KW7.5KW3KW5.5KW
GLD11-3232A32A5.5KW11KW4KW7.5KW
GLD11-4040A40A7.5KW15KW7.5KW11 KW
GLD11-6363A63A11KW22 KW11KW12.5KW
GLD11-8080A80A18.5KW30KW15KW22KW
GLD11-100100A100 A22 KW37KW18.5KW30KW


SwitchTypeNO.of polesABCamD1D2FGHL
GLD11-25
GLD11-32		On-Off
On-Off
On-Off
On-Off		3pole
4pole
3pole+N
3pole+N+E
6pole		64
64
64
64
64		48
48
48
48
48		4
4
4
4
4		4
4
4
4
4		22
22
22
22
22		42
56
56
69
-		-
-
-
-
84		54
54
54
54
54		62
62
62
62
62
GLD11-40
GLD11-63		On-Off
On-Off
On-Off
On-Off		3pole
4pole
3pole+N
3pole+N+E
6pole		64
64
64
64
64		48
48
48
48
48		4
4
4
4
4		4
4
4
4
4		22
22
22
22
22		50
66
66
82
-		-
-
-
-
100		64
64
64
64
64		67
67
67
67
67
GLD11-80
GLD11-100		On-Off
On-Off
On-Off
On-Off		3pole
4pole
3pole+N+E
6pole		64
64
64
88		48
48
48
68		4
4
4
4		5.5
5.5
5.5
5.5		22
22
22
22		70
92
104
-		-
-
-
-
140		80
80
80
80		82
82
82
82

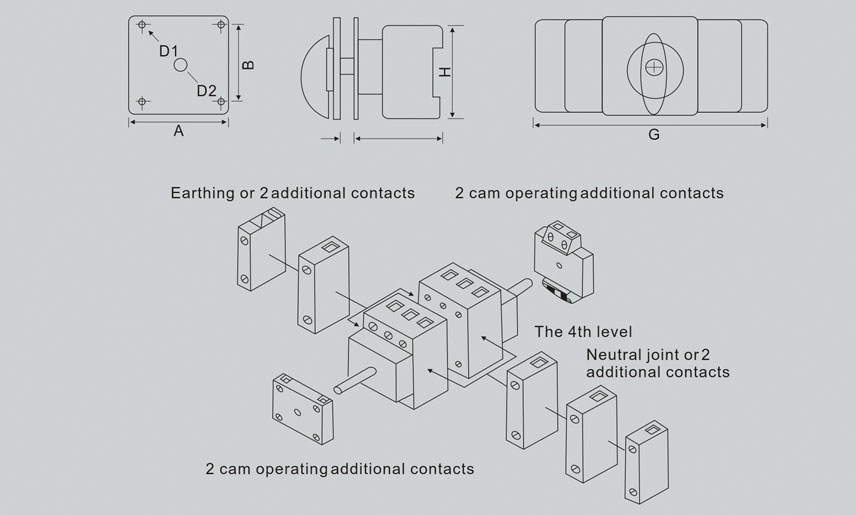

Dimensional drawing
