General
Cables looped in and out from overhead
In and out from underground
In and out straight through the switch
two 25mm rear knockoufs are moulded in the base for surface mounting with concealed wiring.

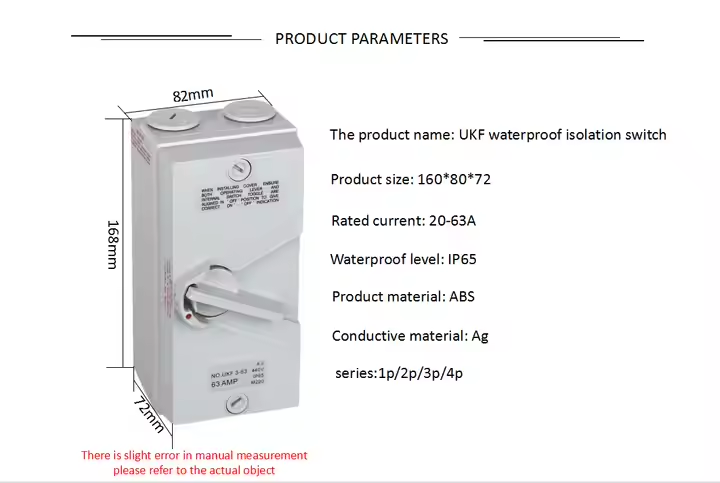

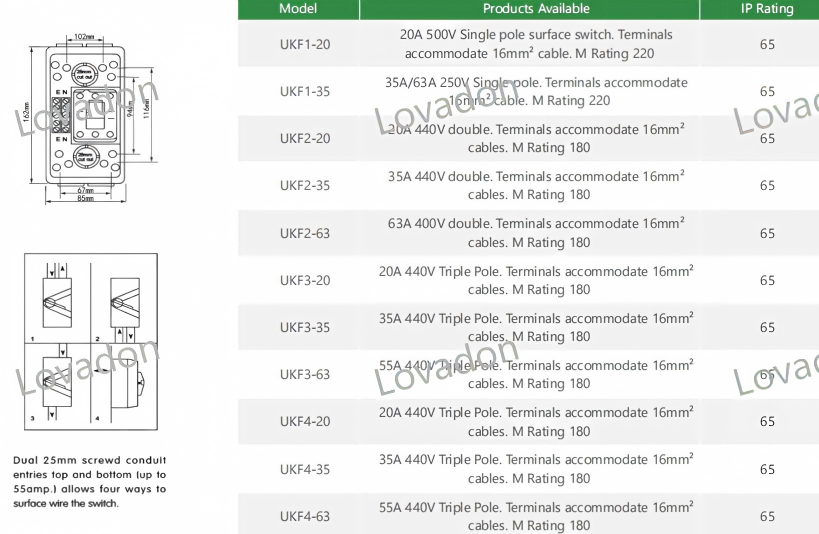

Technical Parameters
| Products Available |
| IP Rating |
| UKF1-20 | 20A 500V Single pole surface switch. Terminals accommodcrte 16mm2 cable. M Rating 220 | 65 |
| UKFI-35 | 35A/63A 250V Single pole. Terminals accommodate mm2 cable. M rating 220 | 65 |
| UKF2-20 | 20A 44W double. Trminals ocommodate 16mm2 妙 les* M Rarting180. | 65 |
| UKF2-35 | 35A 440V double. Trminals accommodate 16mm2 cables. M Railing 180. | 65 |
| UKF2-63 | 63A 400V double. Trminals accommodate 16mm2 cables. M Railing 180. | 65 |
| UKF3-20 | 20A440VTripe Pole. Trminals accommodate 16mm2 cables. | 65 |
| UKF3-35 | 35A 440V Tripe Pole. Trminals accommodate 16mm2 cables. M Parting 180. | 65 |
| UKF3-63 | 55A 440V Tripe Pole. Trminals accommodate 16mm2 cables. MRartingl80. | 65 |
| UKF4-20 | 20A 440V Tripe Pole. Tnninals accommodate 16mm2 cables. M Rarting 180. | 65 |
| UKF4-35 | 35A 440V Tripe Pole. Trminals accommodate 16mm2 cables. M Rarting 180. | 65 |
| UKF4-63 | 55A 440V Tripe Pole. Trminals accommodate 16mm2 cables. M Rarting 180. | 65 |
| UKF3-55-32CE | 55A 440V Tripe Pole. With 32mm conduit entry at each end Trminals accommodate 16mm2 cables. M Rarting 160. | 65 |
| UKF3-63-32CE | 63A 440V Tripe Pole. With 32mm conduit eniry at each end Trminals accommodate 16mm2 cables. M Rarting 160. | 65 |

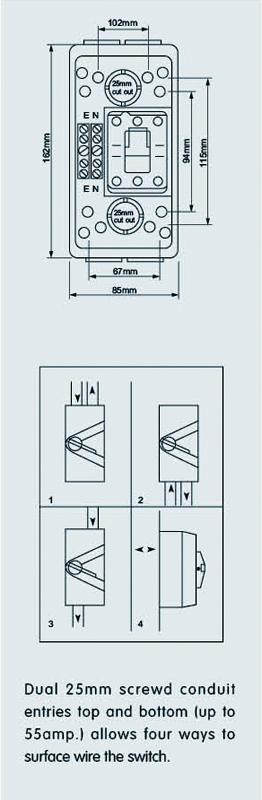

Dimensional drawing
