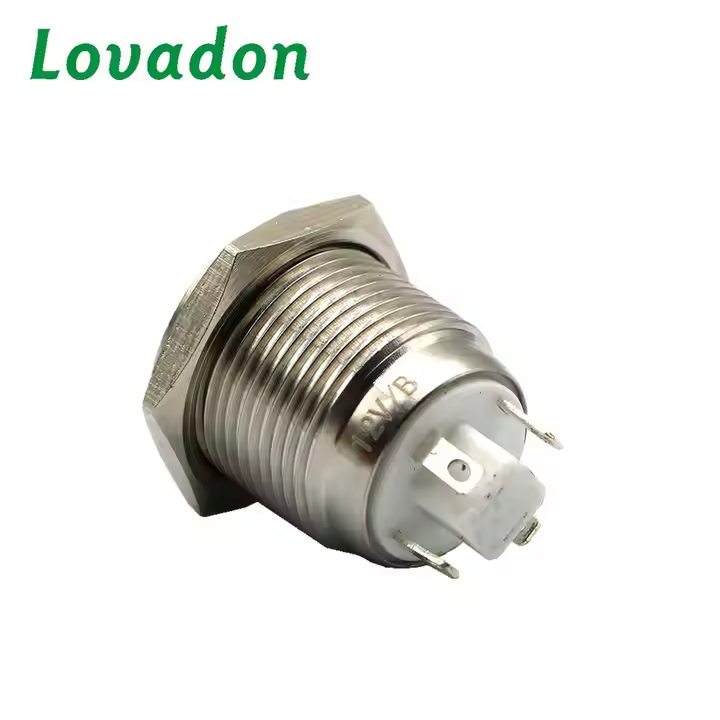

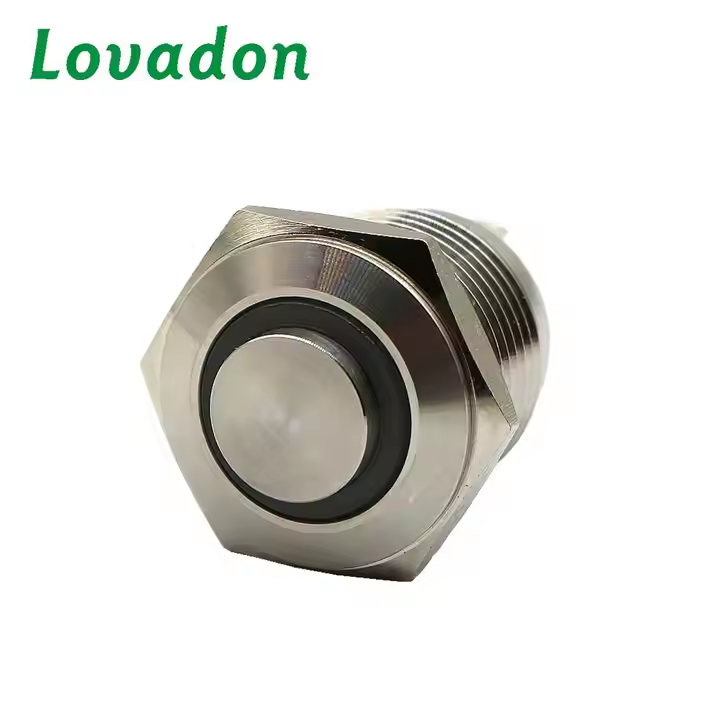

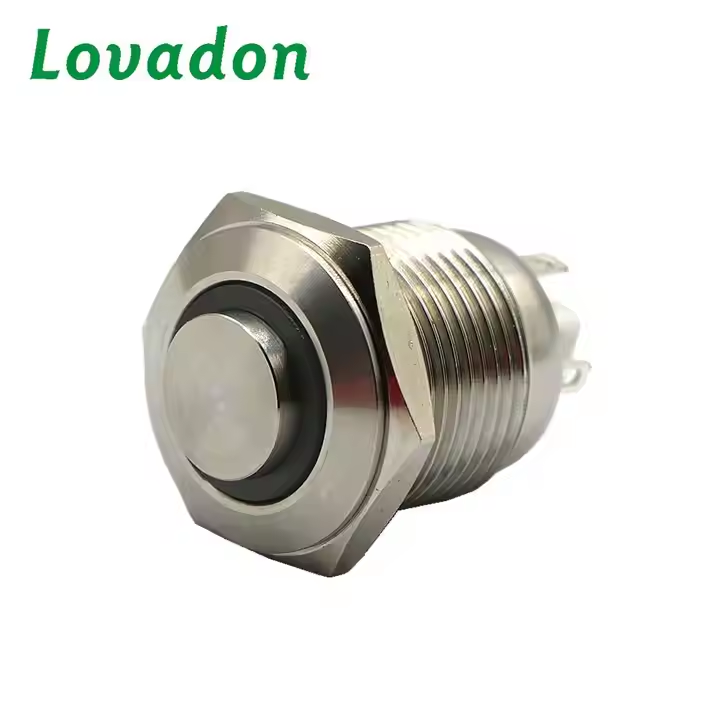

LS16H-10E 16mm on off Button Metal Push Button Switch with Connector LED Push Button Light

The LOVADON LS16H-10E is a momentary push button switch with a maximum current of 500mA and a maximum voltage of 24VAC. Originating from China, this NO NC switch features a 16mm mounting hole and a 1NO contact configuration. It is suitable for various applications requiring reliable and simple button operation.Technical ParametersModel NumberLS16H-10ELEDNOProduct nameNO NC Push Button SwitchMounting hole16mm diameterContact configuratio···
Request A Quick Quote

General

The LOVADON LS16H-10E is a momentary push button switch with a maximum current of 500mA and a maximum voltage of 24VAC. Originating from China, this NO NC switch features a 16mm mounting hole and a 1NO contact configuration. It is suitable for various applications requiring reliable and simple button operation.

Technical Parameters

Model NumberLS16H-10E
LEDNO
Product nameNO NC Push Button Switch
Mounting hole16mm diameter
Contact configuration1NO
Operation typeMomentary
The front shapeflat round
The crust materialstainless steel
Mechanical life1000000 cycles
Operation PressureAbout 4N
Operation DistanceAbout 0.5mm
Protection LevelIP67
