General

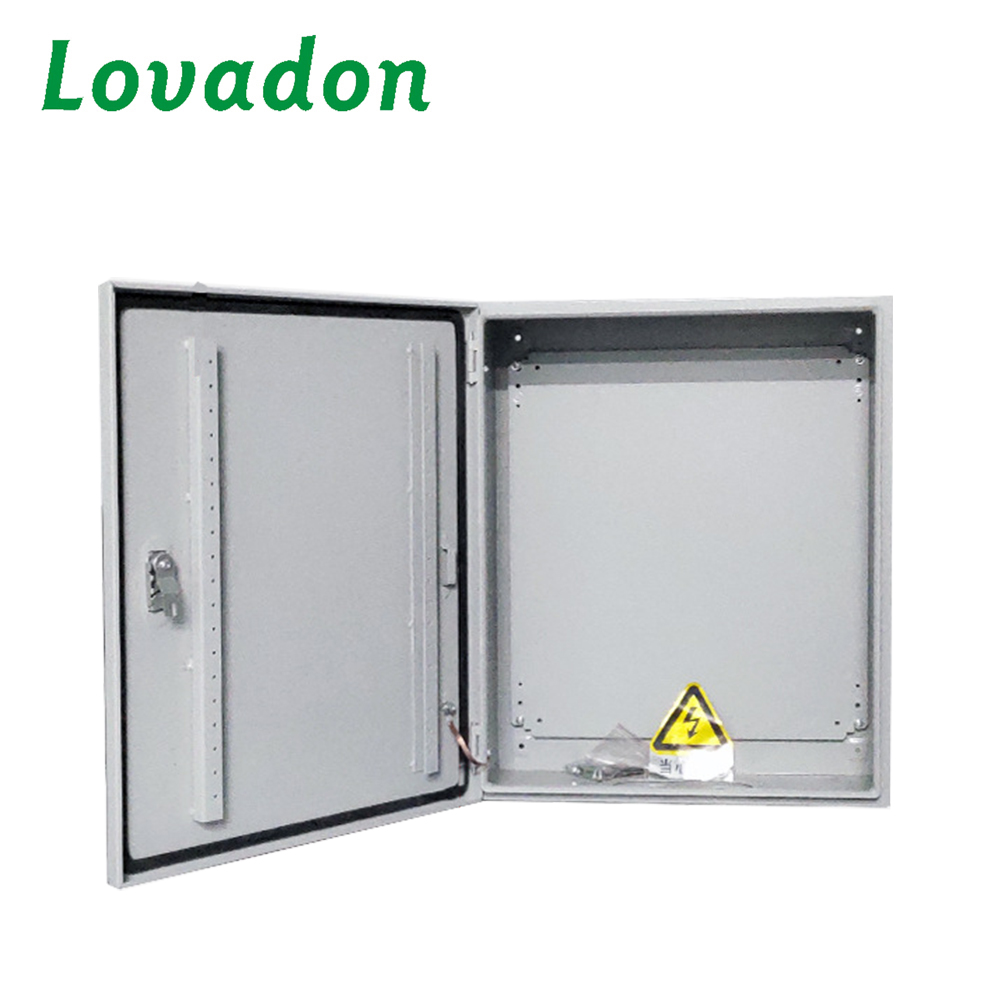

(JXF indoor/JFF outdoor) enclosure box is designed to be assembled into the distributing box with various control functions according to the type of components, specifications and quantity.
The structure is so tight that can be very perfect.lt's made of cold-rolled steel board or stainless alloy. We can provide a wide range of cabinets for your reference.
Construction
•Body and door manufactured in 1.2/1.5 mm sheet steel.
•Mounting plate with folded edge in 2.0 mm sheet steel
•Finished with thermosetting epoxy polyester powder coating. Body and door textured finish.
•Mounting plate in smooth finish. Protection Degree
•IP 55/65 protection degree
Boxes are complete with:
•2 zincpassivated rails to be fixed on the door.
•Mounting plate.
•Gland plate and gasket.
•Package with hardware for earth connection and screws to mount all components.

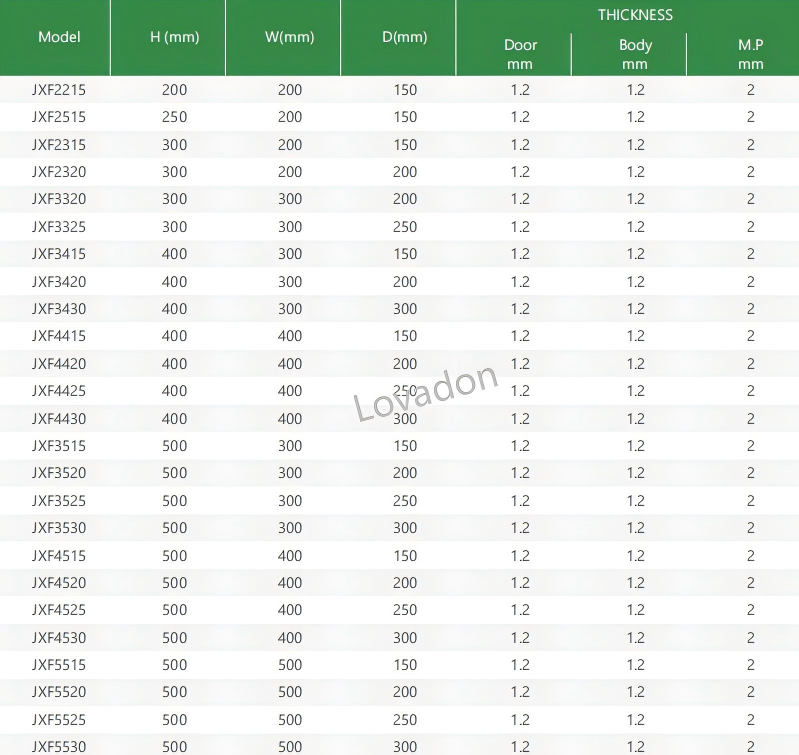

Technical Parameters
| Model | H | W | D | THICKNESS |
| mm | mm | mm | Door/mm | Body/mm | M.P/mm |
| JXF2215 | 200 | 200 | 150 | 1.2 | 1.2 | 2 |
| JXF2515 | 250 | 200 | 150 | 1.2 | 1.2 | 2 |
| JXF2315 | 300 | 200 | 150 | 1.2 | 1.2 | 2 |
| JXF2320 | 300 | 200 | 200 | 1.2 | 1.2 | 2 |
| JXF3320 | 300 | 300 | 200 | 1.2 | 1.2 | 2 |
| JXF3325 | 300 | 300 | 250 | 1.2 | 1.2 | 2 |
| JXF3415 | 400 | 300 | 150 | 1.2 | 1.2 | 2 |
| JXF3420 | 400 | 300 | 200 | 1.2 | 1.2 | 2 |
| JXF3430 | 400 | 300 | 300 | 1.2 | 1.2 | 2 |
| JXF4415 | 400 | 400 | 150 | 1.2 | 1.2 | 2 |
| JXF4420 | 400 | 400 | 200 | 1.2 | 1.2 | 2 |
| JXF4425 | 400 | 400 | 250 | 1.2 | 1.2 | 2 |
| JXF4430 | 400 | 400 | 300 | 1.2 | 1.2 | 2 |
| JXF3515 | 500 | 300 | 150 | 1.2 | 1.2 | 2 |
| JXF3520 | 500 | 300 | 200 | 1.2 | 1.2 | 2 |
| JXF3525 | 500 | 300 | 250 | 1.2 | 1.2 | 2 |
| JXF3530 | 500 | 300 | 300 | 1.2 | 1.2 | 2 |
| JXF4515 | 500 | 400 | 150 | 1.2 | 1.2 | 2 |
| JXF4520 | 500 | 400 | 200 | 1.2 | 1.2 | 2 |
| JXF4525 | 500 | 400 | 250 | 1.2 | 1.2 | 2 |
| JXF4530 | 500 | 400 | 300 | 1.2 | 1.2 | 2 |
| JXF5515 | 500 | 500 | 150 | 1.2 | 1.2 | 2 |
| JXF5520 | 500 | 500 | 200 | 1.2 | 1.2 | 2 |
| JXF5525 | 500 | 500 | 250 | 1.2 | 1.2 | 2 |
| JXF5530 | 500 | 500 | 300 | 1.2 | 1.2 | 2 |
| JXF4615 | 600 | 400 | 150 | 1.2 | 1.2 | 2 |
| JXF4620 | 600 | 400 | 200 | 1.2 | 1.2 | 2 |
| JXF4625 | 600 | 400 | 250 | 1.2 | 1.2 | 2 |
| JXF4630 | 600 | 400 | 300 | 1.2 | 1.2 | 2 |
| JXF5620 | 600 | 500 | 200 | 1.2 | 1.2 | 2 |
| JXF6615 | 600 | 600 | 150 | 1.2 | 1.2 | 2 |
| JXF6620 | 600 | 600 | 200 | 1.2 | 1.2 | 2 |
| JXF5720 | 700 | 500 | 200 | 1.2 | 1.2 | 2 |
| JXF5725 | 700 | 500 | 250 | 1.2 | 1.2 | 2 |
| JXF6720 | 700 | 600 | 200 | 1.2 | 1.2 | 2 |
| JXF6820 | 800 | 600 | 200 | 1.5 | 1.5 | 2 |
| JXF8820 | 800 | 800 | 200 | 1.5 | 1.5 | 2 |
| JXF8830 | 800 | 800 | 300 | 1.5 | 1.5 | 2 |
