General

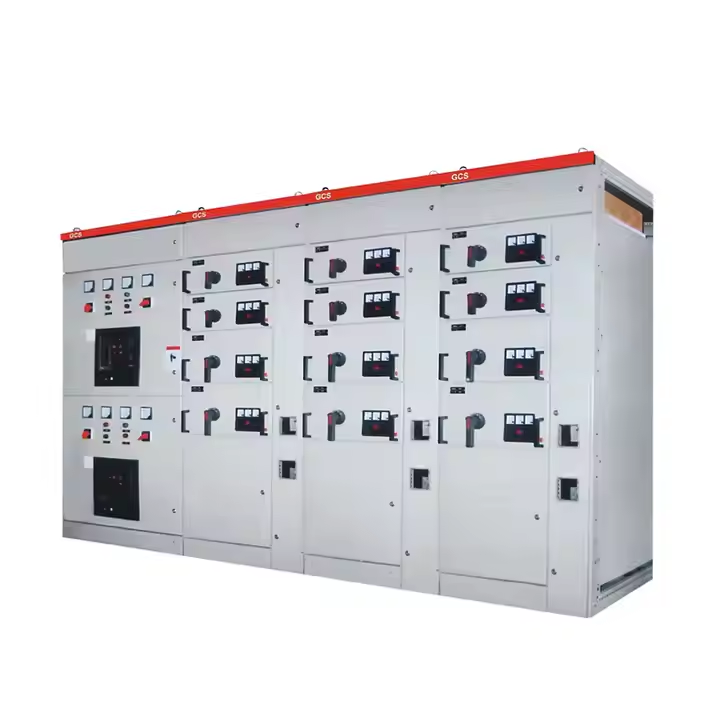

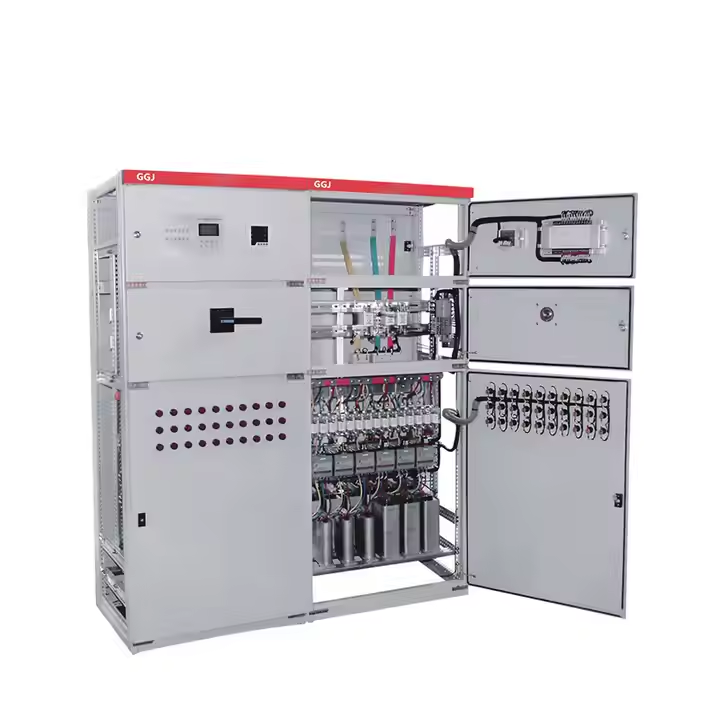

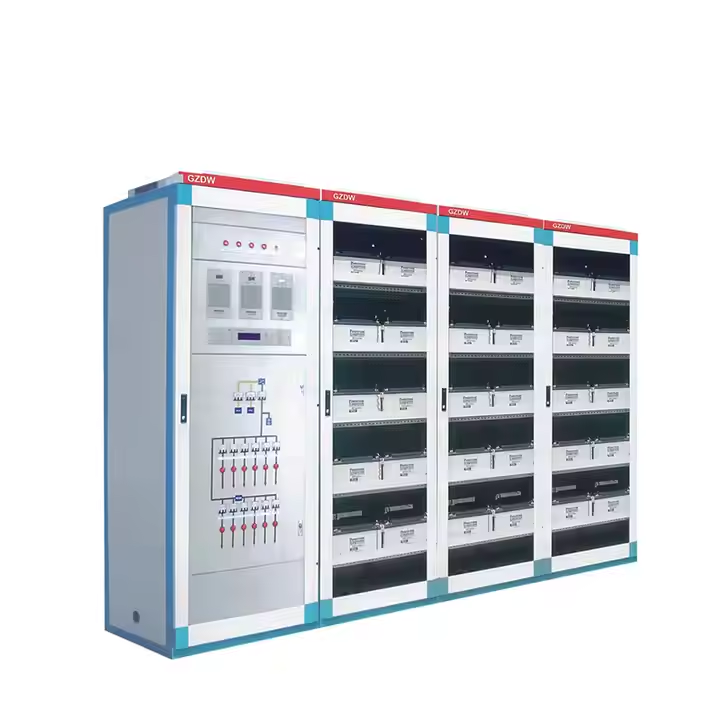

A large industrial electrical switchgear cabinet equipped with numerous circuit breakers and control panels.The cabinet is used in electrical distribution systems for controlling, protecting, and isolating electrical circuits.Its importance in ensuring the safe and efficient operation of electrical equipment.
Technical Parameters
| Place of Origin | Zhejiang, China |
| Brand Name | LOVADON,OEM,OTHER |
| Overvoltage Type | 4.3 |
| Pollution Degree | 3 |
| Rated Working Voltage (Ue) (V) | 400/660 |
| Rated Isolation Voltage (Ui) (V) | 660/1000 |
| Rated Frequency (H2) | 50 (60) |
| Rated Current | ≤5000A |
| Rated Short-time Withstand Current (KA) | 50, 65, 80 (Is effective value) |
| Rated Peak Withstand Current(KA) | 105, 140, 176 (0.1s maximum value) |
| Rated Maximum Working Current | ≤1000A |
| Rated Short-time Withstand Current | 50kA |
Yueqing Lovadon Electric Co., Ltd.
