Metal distribution box

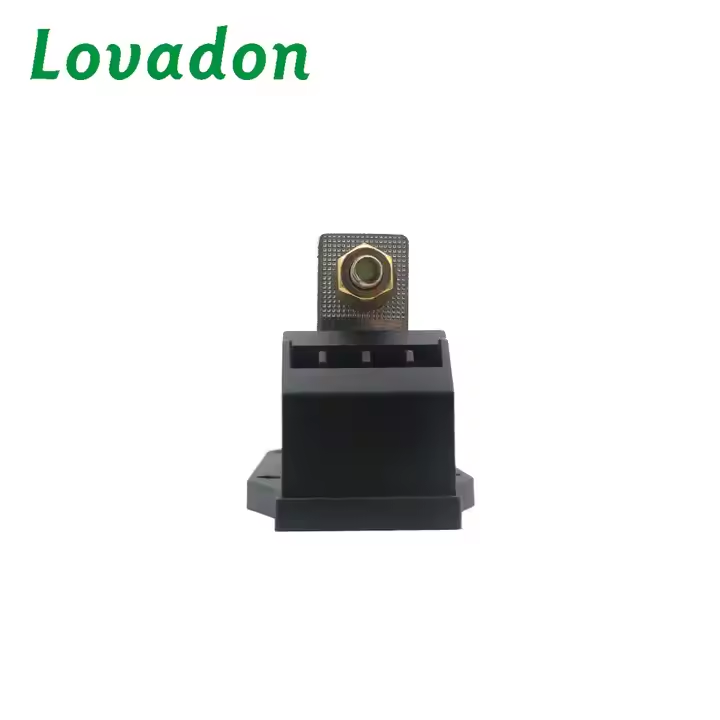

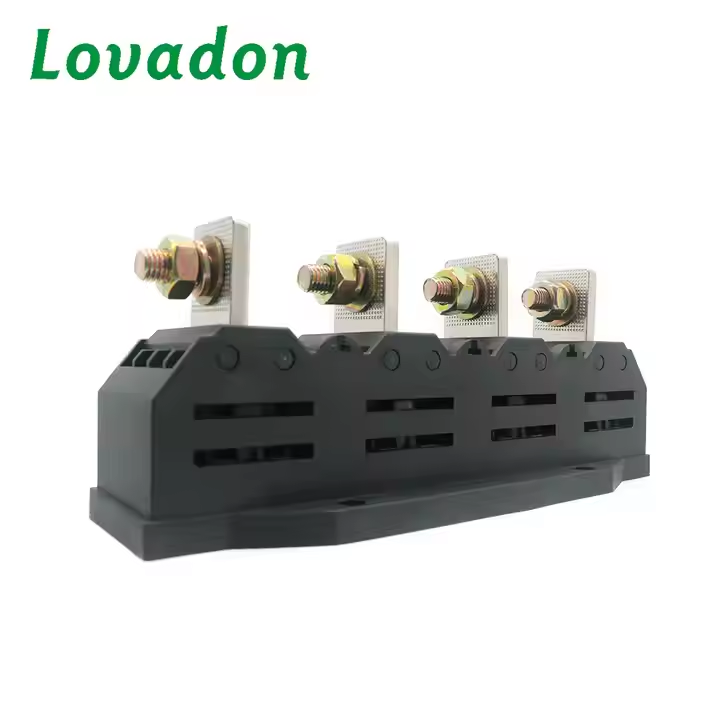

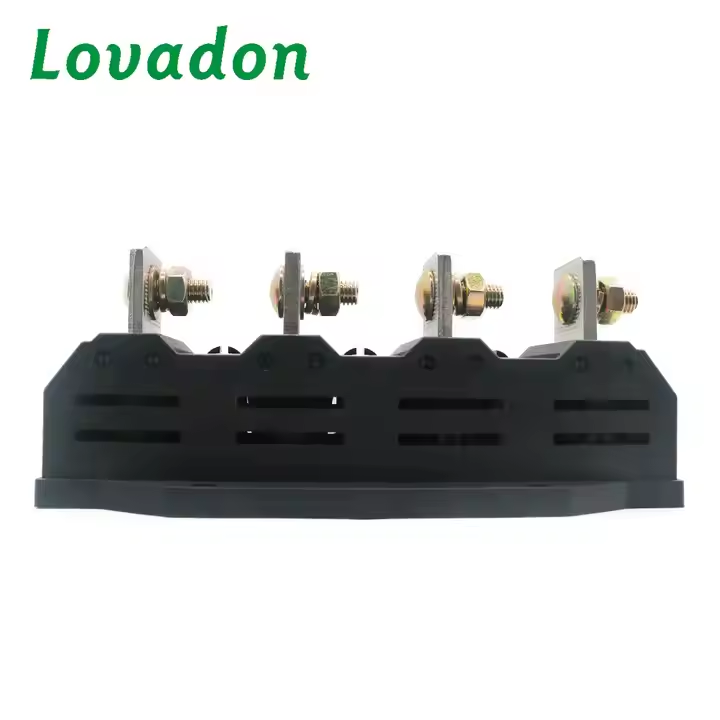

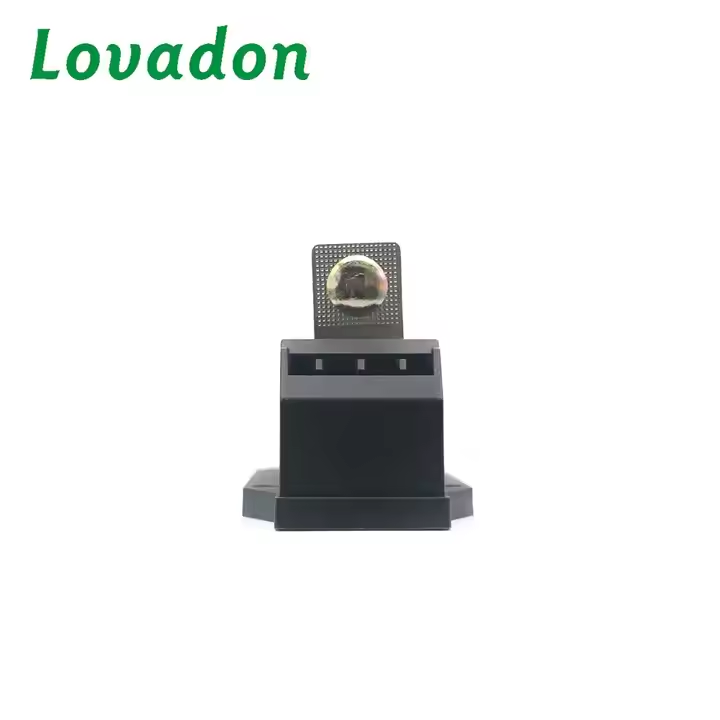

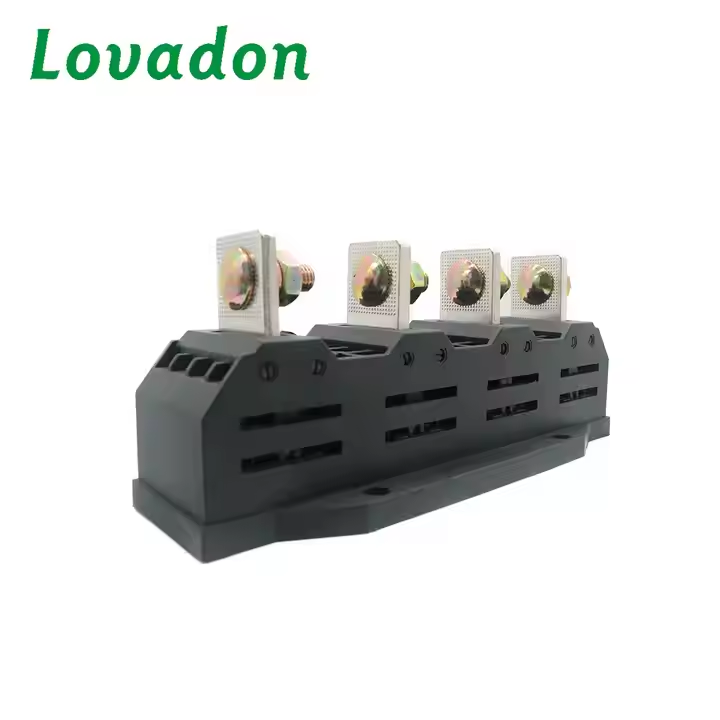

LXZ-4-400A GCS GCK 400A 4Pole Low Voltage Switchgear Drawer Main Circuit Connector for Power Distribution Equipment

GCS GCK 4 Pole Low Voltage Switchgear Drawer Primary Moving Plug-in Connector Power Distribution Equipment, ‌originating from Zhejiang, China‌, features a rated insulation voltage of 1000V, an operating temperature of 125°C, a vertical busbar thickness of 6mm, ‌rated currents including 125A, 250A, 400A, and 630A‌, a power frequency withstand voltage of 3500V, and a vertical bus spacing of 55mm.Technical ParametersModel NumberLXZ-4-···
Request A Quick Quote

General

GCS GCK 4 Pole Low Voltage Switchgear Drawer Primary Moving Plug-in Connector Power Distribution Equipment, ‌originating from Zhejiang, China‌, features a rated insulation voltage of 1000V, an operating temperature of 125°C, a vertical busbar thickness of 6mm, ‌rated currents including 125A, 250A, 400A, and 630A‌, a power frequency withstand voltage of 3500V, and a vertical bus spacing of 55mm.

Technical Parameters

Model NumberLXZ-4-400A
Product nameMain Circuit Connector
Rated insulation voltage1000V
Operating temperature125℃
Vertical busbar thickness6mm
Rated current125A 250A 400A 630A
Power frequency withstand voltage3500V
Vertical bus spacing55mm
