General

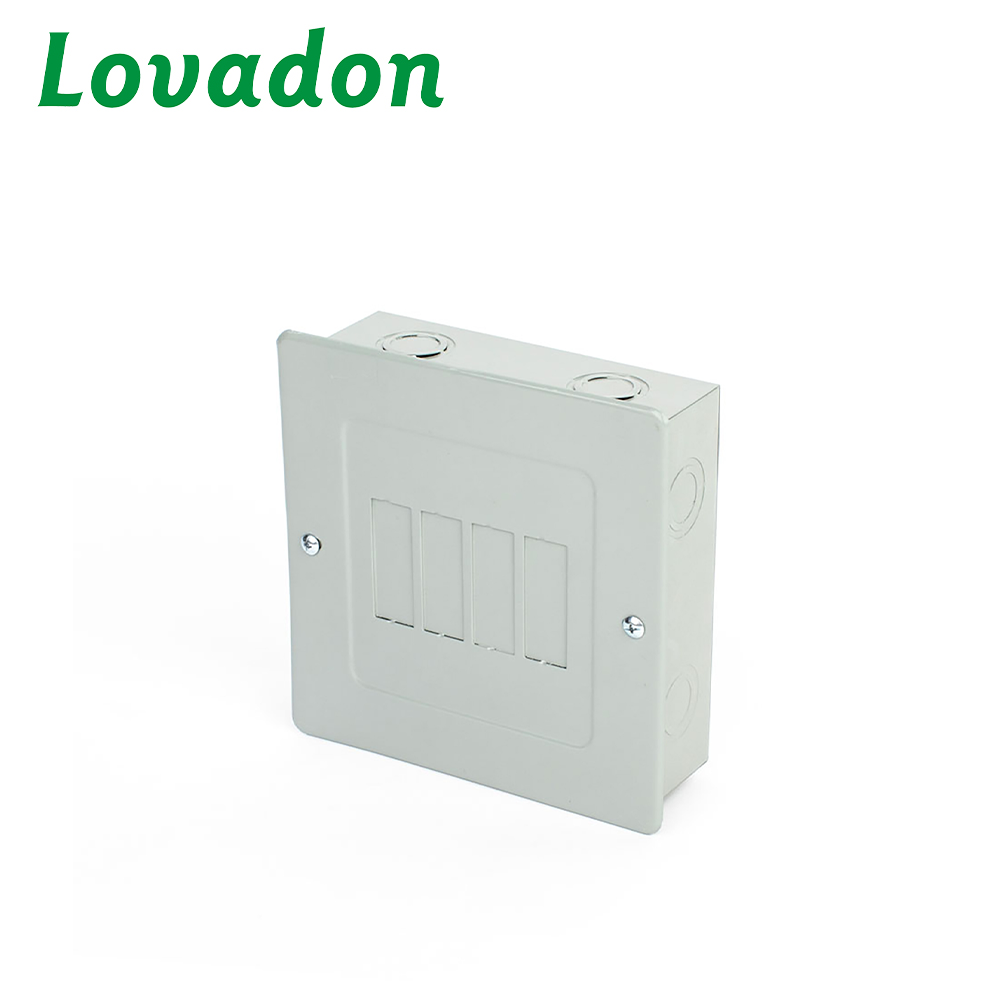

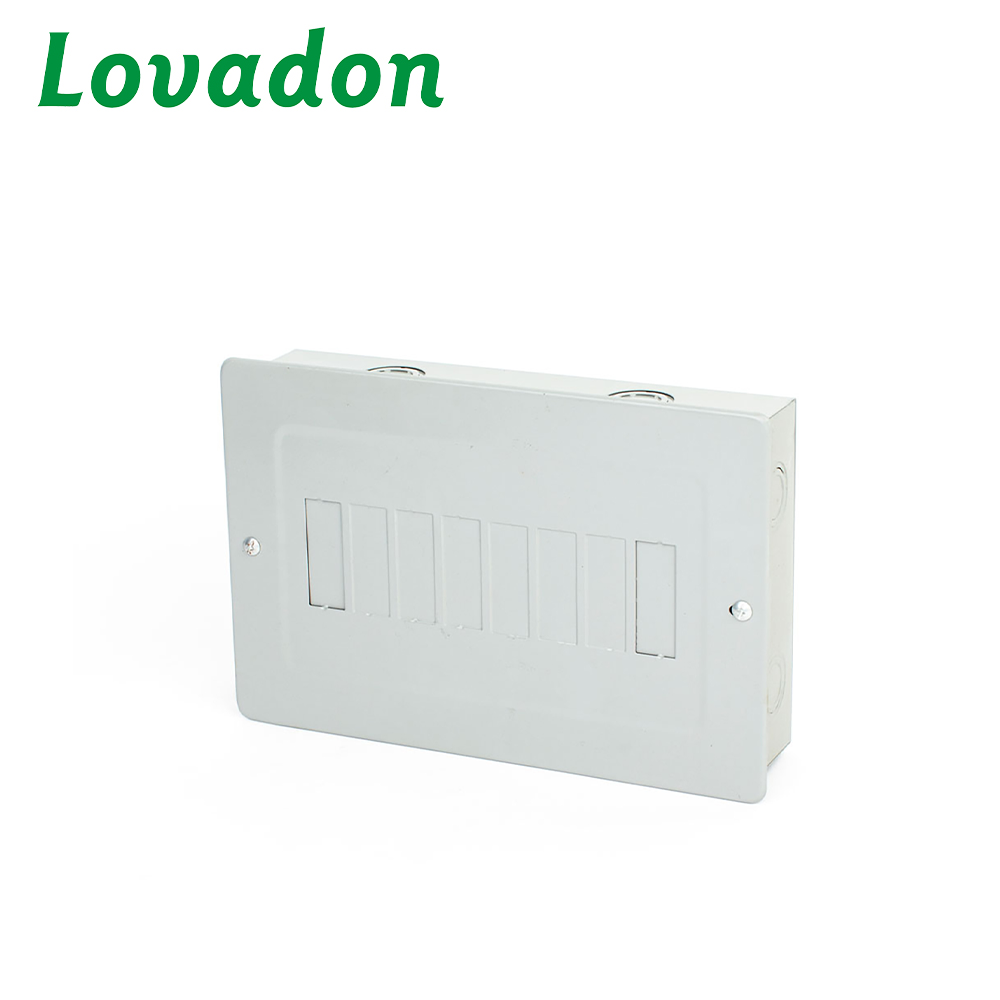

GTLS series are economy load centers which can substitute some of the GTL series Load Centers.They have been designed for safe,reliable distribution and control of electrical power as service entrance equipment in residential,commercial and light industrial premises.
Features
● Made out of high quality steel sheet of up to 0.6-1.2mm thickness.
● Matt-finish polyester powder coated paint.
● Knockouts provided on all sides of the enclosure.
● Accept GE type l"THQL breakers.
● Suitable for single-phase,three-wire,rated current to 100A,sevice voltage to 120/240Vac.
● Wider enclosure offers ease or wiring and move heat dissipation.
● Flush and surface mounted designs.
● Knockouts for cable entry are provided on top,bottom of the enclosure.

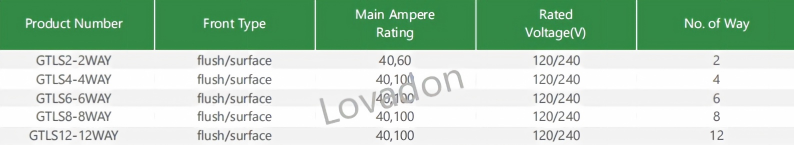

Specifications

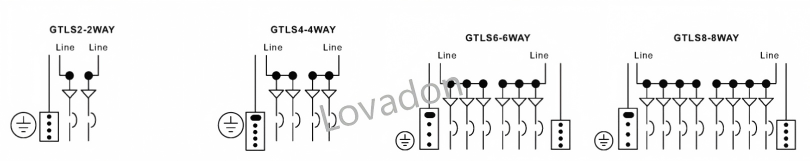

Connection Drawing
