General
24-hour mini-mechanical timer small size,novel appearance.Set at least 15 minutes.Through a simple set,you can set your time every day 24 hours cycle automatically turn on and off the power,to bring your life convenient, energy-saving dual effect!
Minimum set value of 15 minutes,set without a day after the start,will automaticlly follow your set time every day cycle!
It is widely used in programmable control of electric cooker,booster,lamp, water heater, sprayer,bottler,preheater, agriclture facilities, broadcasting equipment and all the circuit fixtures & home appliances which need setting time to turn ON and OFF.
Timers not only save your money,the most important is bring you a Safe,Healthy,Environment and smart life.

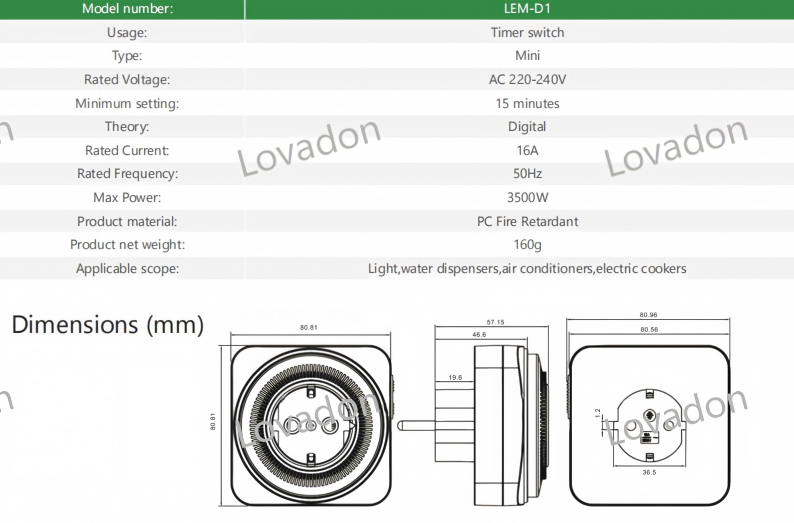

Technical Parameters
| Model number: | LEM-D1 | Theory: | Digital |
| Usage: | Timer switch | Type: | Mini |
| Sample: | Sample available | Rated Current: | 16A |
| Rated Voltage: | AC 220-240V | Rated Frequency: | 50hz |
| Minimum setting: | 15 minutes | Max Power: | 3500W |
| Product material: | PC Fire Retardant | Product net weight: | 160g |
| Product size: | 12*7*2.5cm |
|
|
| Applicable scope: | Light,water dispensers,air conditioners,electric cookers |
|
|
| English standard applies:Germany,France,Korea,Austria,Belgium,Czech,Denmark,Hungary,Holland,Norway,etc. |
|
|
|

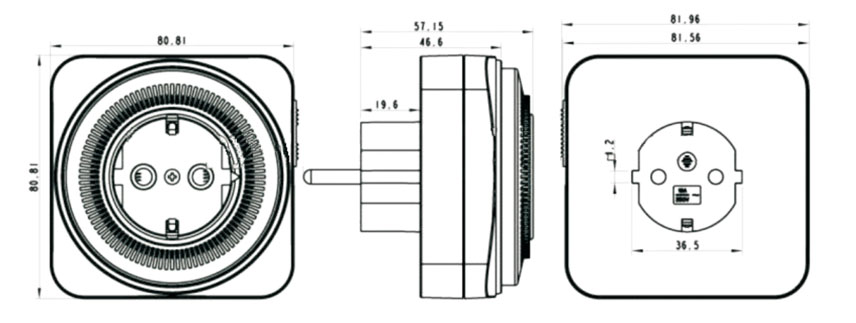

Dimensional drawing
Yueqing Lovadon Electric Co., Ltd.
