General

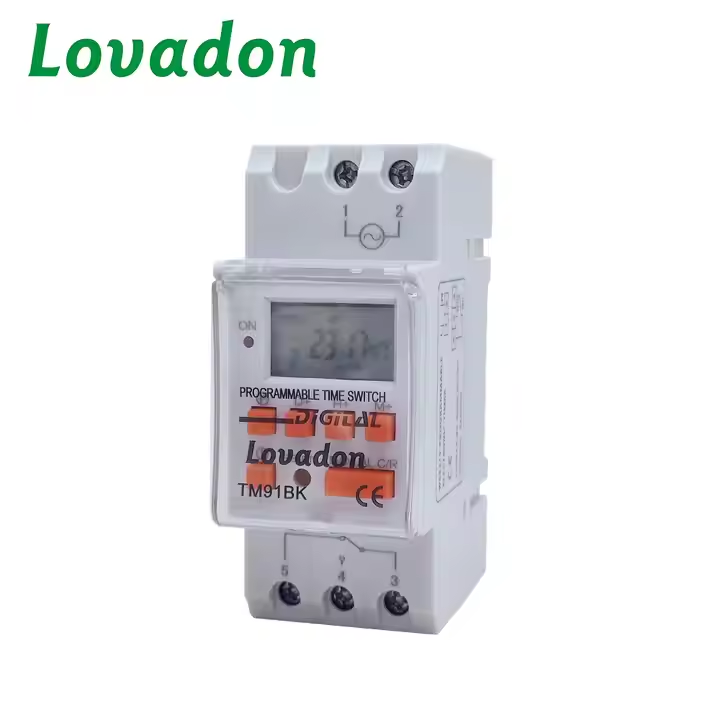

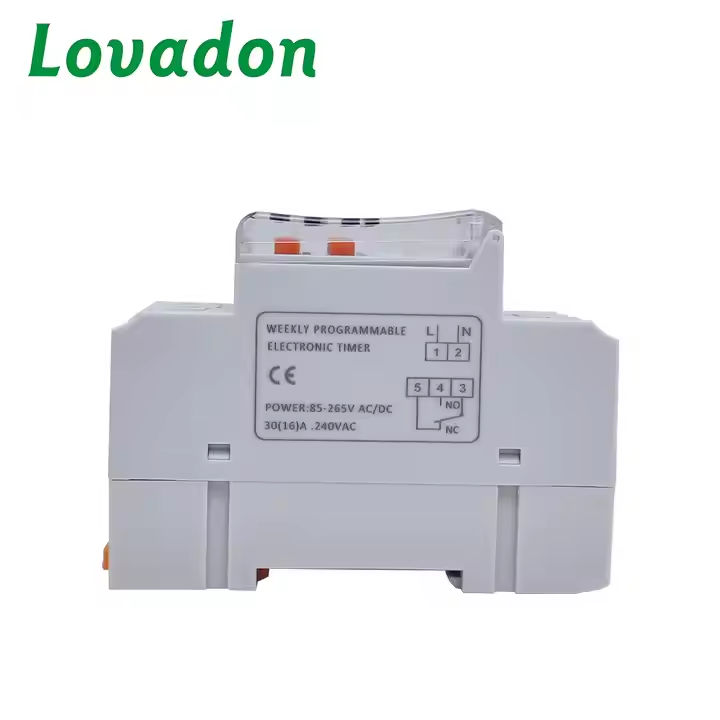

The TM91BK Timer Switch offers 28 ON/OFF programs and operates within a voltage range of 85-265VAC/DC. It boasts a timer range of 1-168 hours and is compatible with a frequency of 50-60Hz.Installation is via DIN rail, and it possesses a switching capacity of 25A at 250VAC with a power factor of 0.9, and 16A at 250VAC with a power factor of 0.6.This switch is versatile and suitable for various applications.
Technical Parameters
| Model Number | TM91BK |
| Product name | Timer switch |
| Number of ON/OFF programs | 28 |
| Operating voltage | 85-265VAC/DC |
| Range of timer | 1-168hour |
| Frequency | 50-60HZ |
| Installation type | Din rail |
| Switching capactiy at 250 VAC,cos=0.9 | 25A |
| Switching capactiy at 250 VAC,cos=0.6 | 16A |
Yueqing Lovadon Electric Co., Ltd.
