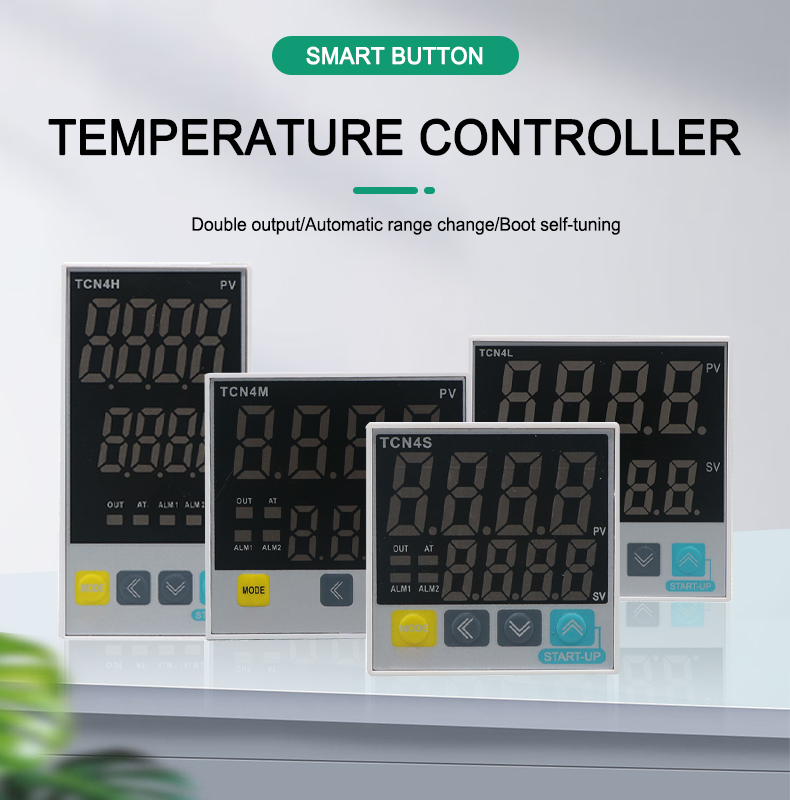

General
The TCN4 series is a versatile device featuring multiple specifications. Panel sizes are available in S (48x48), M (72x72), H (48x96), and L (96x96) configurations, with installation hole dimensions indicated in brackets. It supports a multi-sensor input signal including K, E, J, Pt100, and Cu50, which is editable. The output includes a relay with a contact capacity of 250VAC 10A (resistive), capable of directly loading up to 1000W, and a voltageplus output of DC0-12V suitable for SSR. The alarm function output offers NO/OFF with 250VAC 10A (resistive) and one output with four types. Additionally, it features PID adjustment with contact output break-make and NO/OFF control modes. The working power range is AC/DC 85-264V = 10%, 50Hz-60Hz.
Type Named

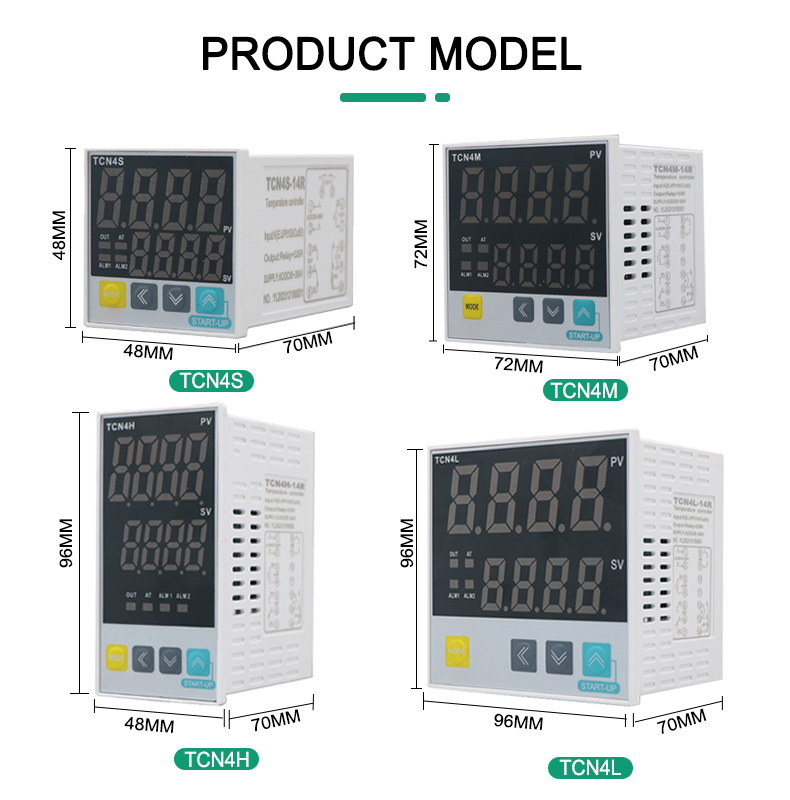

①Panel Size:(WxH)
S:48x48(45×45),M:72x72(68x68),
H:48x96(45x92).L:96×96(92×92)
Note:The dimensions of installation holes are shown in brackets
②Alarmfunction Output:1:One Output With 4 type
③Inputsignal:4:K、E、J、Pt100、Cu50
④Output:R:Relay+SSR,Default factory value relay

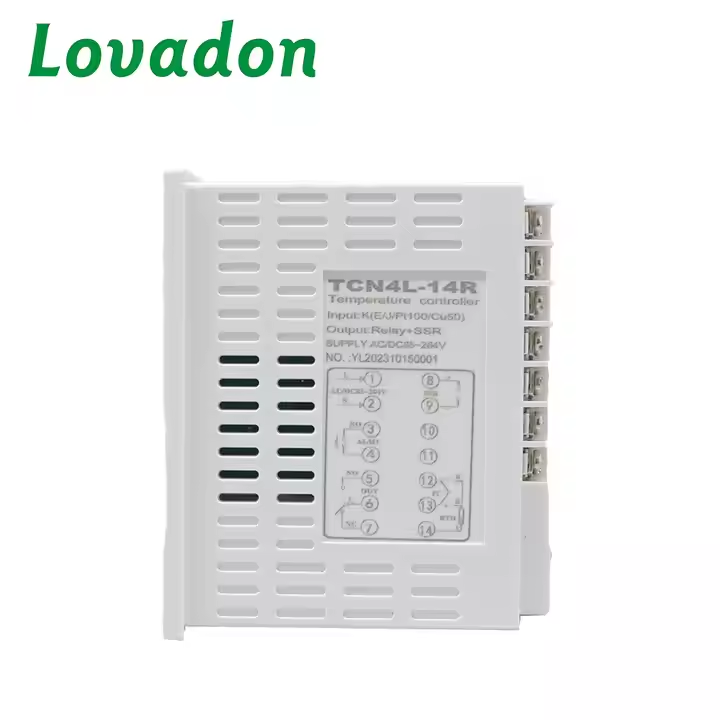

Main technical parameters
1、Input signal:Multi Sensor(K、E、J、Pt100、Cu50) Editable input signal
2、Output: Relay output:Contactcapacity 250VAC10A(resistive), resistive heating candirectly load 1000W.
3、Voltageplus output:DC0-12V(suitable for SSR)
4、Alarm function output:NO/OFF.250VAC 10A(resistive).one output with 4 type
5、Control mode:PID adjustment with contact output break-make、NO/OFF
6、Work power:AC/DC85-264V=10%,50HZ-60HZ

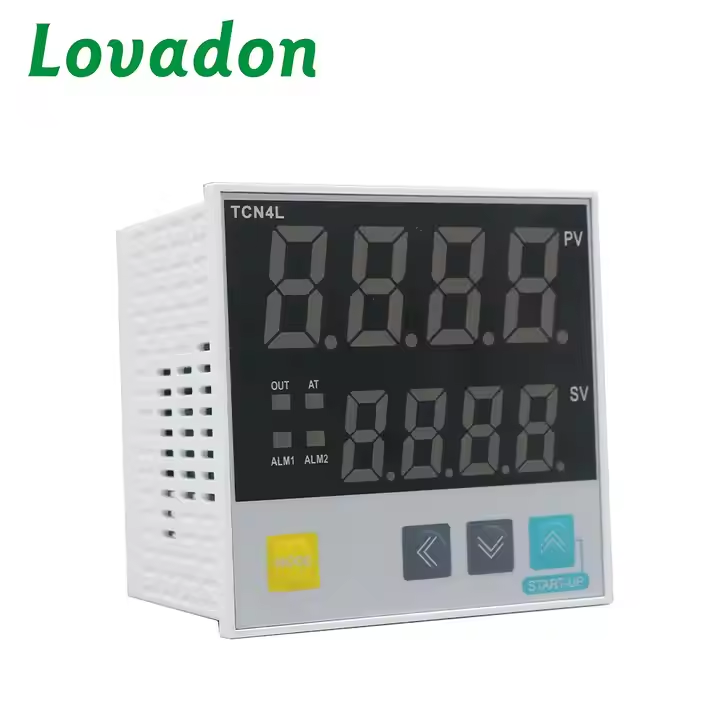

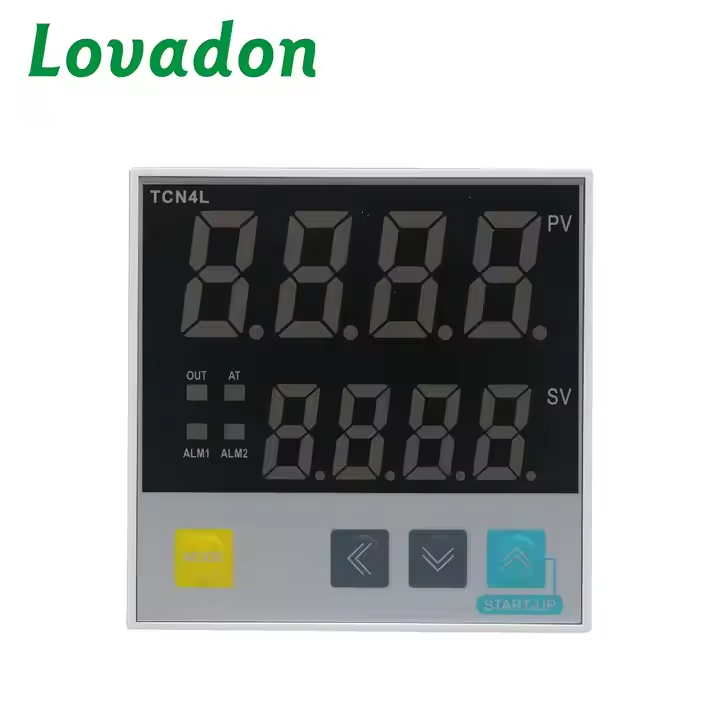

Eeature
1、Dual output:Relay+SSR More flexible use
2、Power on self-tuning for more precise temperature control
3、Simplify the menu settings and make operations more canvenient
1、Dual output:Relay+SSR More flexible use
2、Power on self-tuning for more precise temperature control
3、Simplify the menu settings and make operations more canvenient
1、Dual output:Relay+SSR More flexible use
2、Power on self-tuning for more precise temperature control
3、Simplify the menu settings and make operations more canvenient

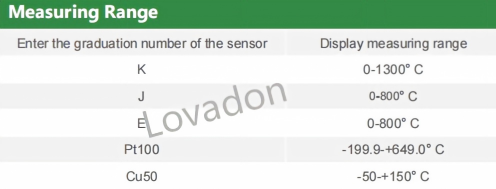

Measuring Range
