General
The XMTG-2001A is a temperature controller featuring editable input signals for thermocouples (TC) of types K, J, and E. It boasts an accuracy class of 1.0 and offers control modes including NO/OFF (two-phase style) and time-proportional action (P). The relay output has a contact capacity of 250VAC 10A (resistive), capable of directly loading up to 1000W for resistive heating. The start-stop temperature range is editable. It operates on AC220V ± 10%, 50Hz-60Hz, with a compact panel size of 48*48 and an installation size of 45*45.

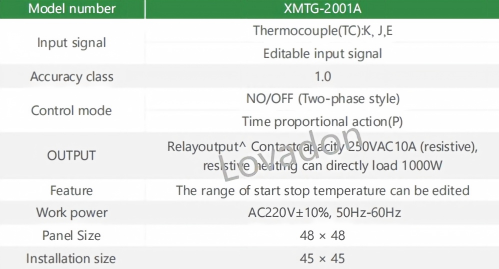

Technical Parameters
Yueqing Lovadon Electric Co., Ltd.
