General

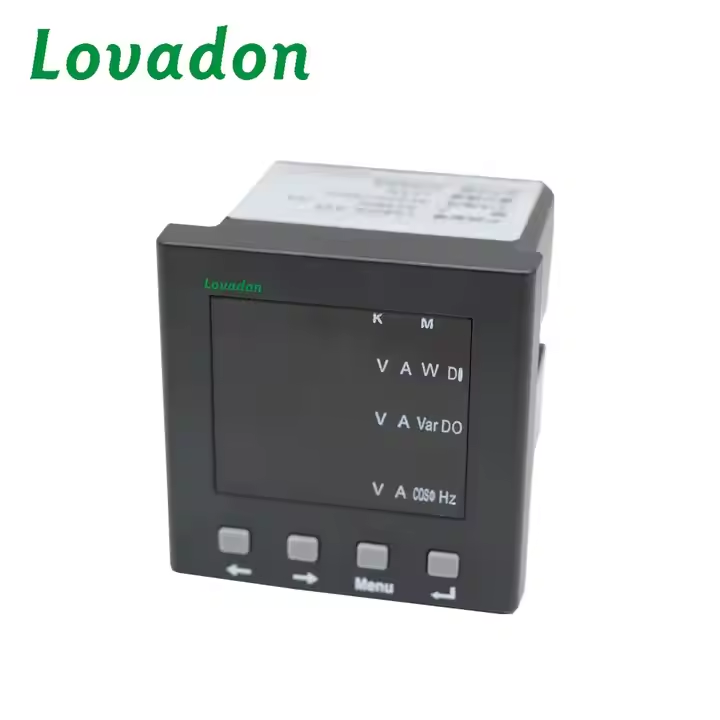

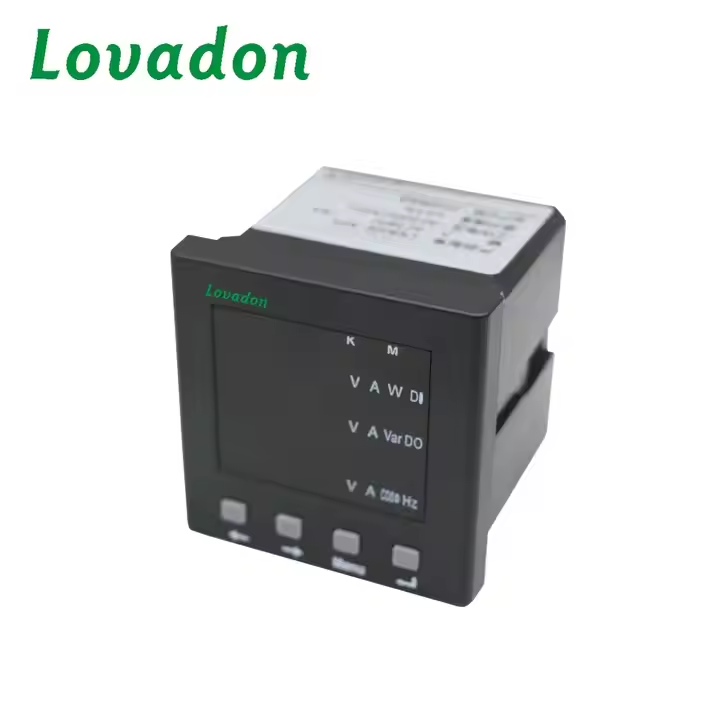

The LK800E-AS4 is a multifunctional electrical meter specifically designed for monitoring and measuring various electrical parameters.It boasts a digital display capable of showing values for voltage (V), current (A), active power (W), reactive power (Var), power factor (Cosφ), and frequency (Hz)Equipped with four buttons for easy navigation through its menu and adjustment of settings.Suitable for use in industrial and commercial environments, providing precise electrical parameter monitoring.Ideal for applications requiring detailed insights into electrical system performance.
Technical Parameters
| Model Number | LK800E-AS4 |
| Display Type | Analog and Digital |
| Accuracy Class | 0.5 |
| Operating Temperature | -10℃~+55℃ |
| Dimensions | 96*96mm |
| Product name | Multifunction meter |
| Input range | 0-5A 500V AC |
| display | LED |
| Color | White and Black |
| Phase | 3 |
| Rated frequency | 45~65 Hz |
| Mechanical Life | 10000 Times |
| Trademark | OEM |
| Standard | CE, IEC, ISO |
| Contact material | ABS engineering plastics |
| Measuring Energy Range | 0-99999 |
| Output Voltage | AC110V/220V/380V |
