General

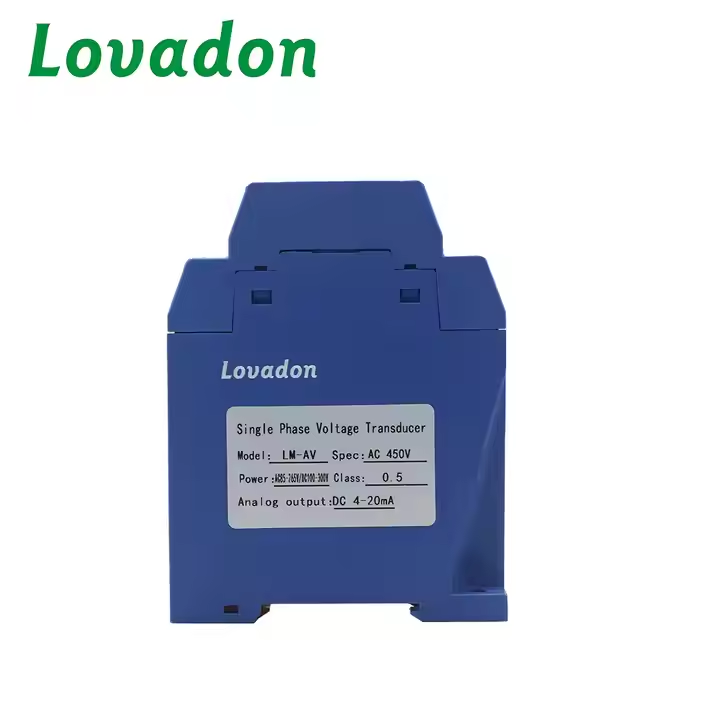

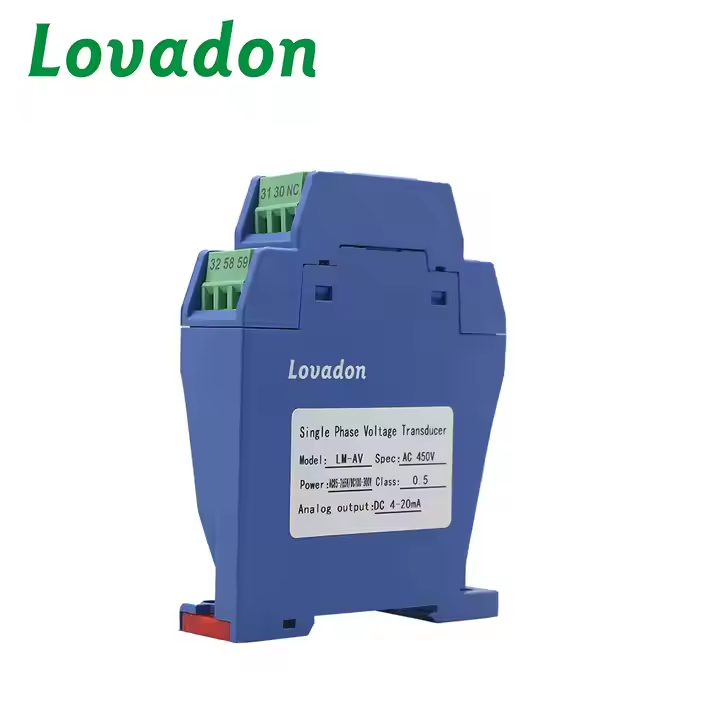

The Lovadon LM-AV AC/DC grid transducer converter is manufactured in Zhejiang, China. It features analog and digital display types and boasts an accuracy class of 0.5 and 0.2.
The device has an operating temperature range of -10°C to +55°C and an insulation resistance of ≥100MΩ. It offers an output voltage of DC 24V, AC 110/220V (+15%), and AC/DC 85-270V.
Overall, this transducer converter is designed for precision and versatility in various electrical applications.
Technical Parameters
| Model Number | LM-AV |
| Output Voltage | DC24V,AC 110/220V+15%,AC DC 85-270V |
| Display Type | Analog and Digital |
| Accuracy Class | 0.5,0.2 |
| Operating Temperature | -10 ℃~+55 ℃ |
| Product name | AC/DC grid transducer converts |
| Accuracy Measurement class | 0.5,0.2 |
| Insulation resistance | ≥100MΩ |
| Withstand intensity | 2.0 kV/1 min,50 Hz |
| Temperature coeffi cient | ≤100ppm/℃ |
| Wave content | <0.5% peak |
| Power | <4VA |
| Frequency | 50+5Hz,60+5Hz |
