General

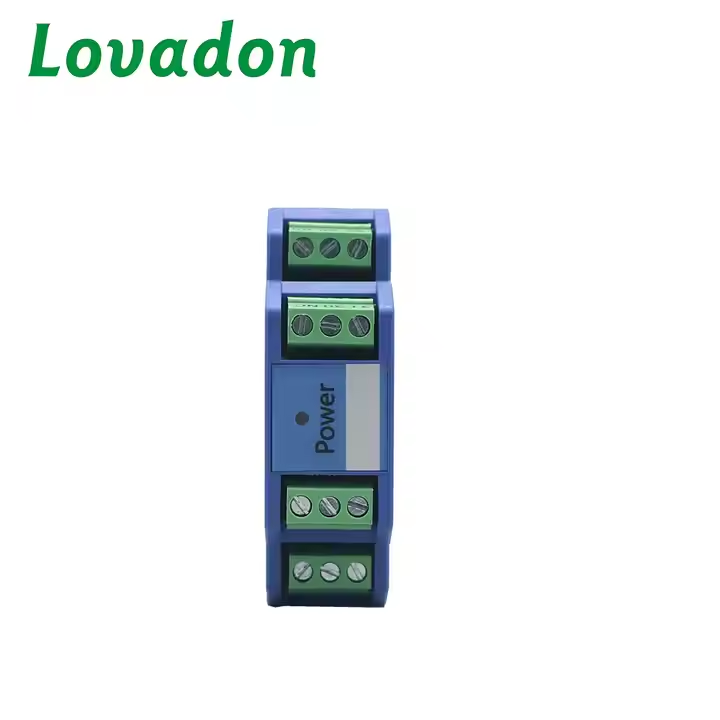

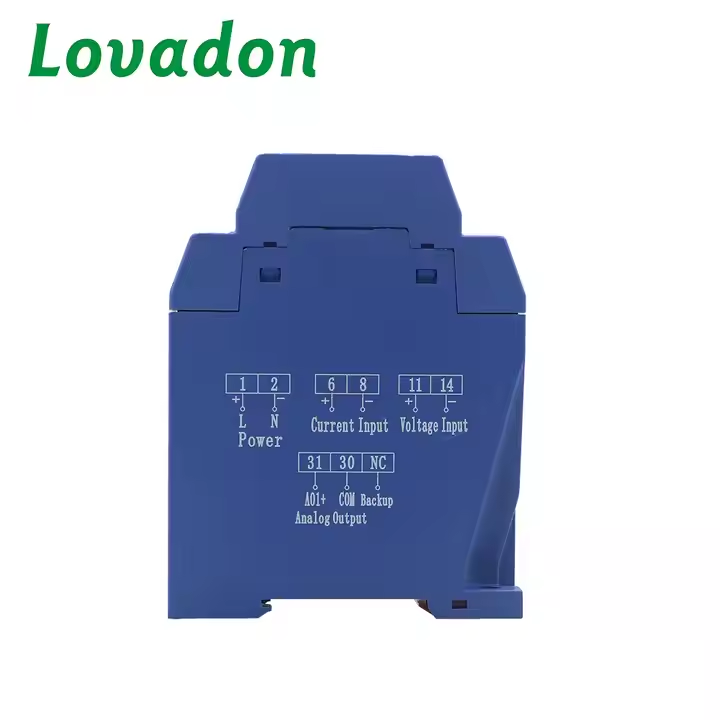

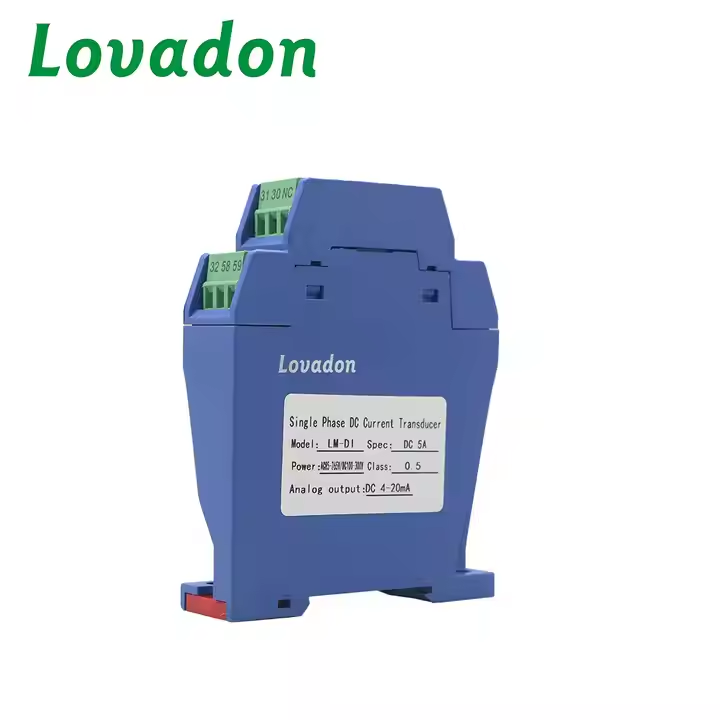

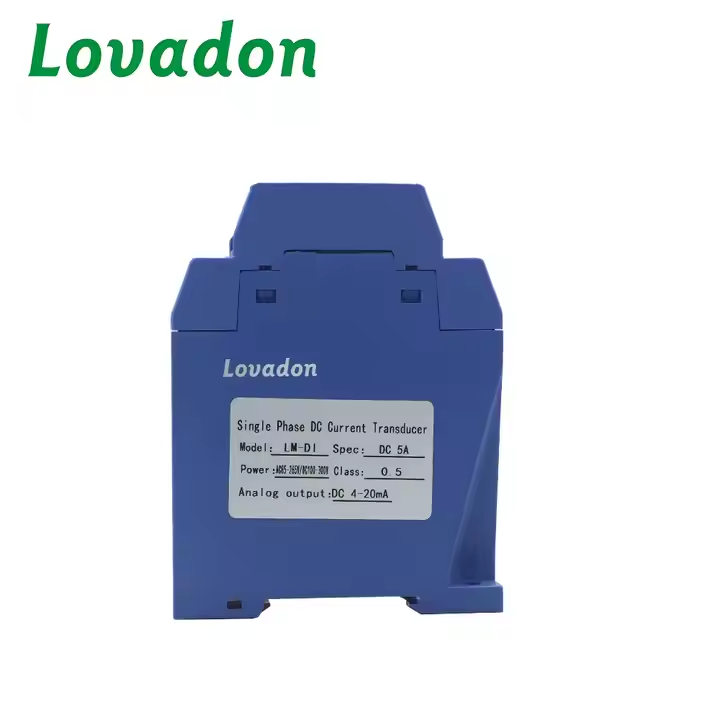

The LM-D1 transducer is designed to convert AC/DC grid signals. Key specifications include an accuracy class of 0.5,0.2, operating within a temperature range of -10°C to +55°C. It features an insulation resistance of at least 100MΩ and can withstand an intensity of 2.0 kV/1 min at 50 Hz. Additional characteristics encompass a temperature coefficient of ≤100ppm/°C, wave content less than 0.5% peak, power consumption of less than 4VA, and a frequency range spanning from 50+5Hz to 60+5Hz.
Technical Parameters
| Model Number | LM-D1 |
| Output Voltage | DC24V,AC 110/220V+15%,AC DC 85-270V |
| Accuracy Class | 0.5,0.2 |
| Operating Temperature | -10 ℃~+55 ℃ |
| Product name | AC/DC grid transducer converts |
| Accuracy Measurement class | 0.5,0.2 |
| Insulation resistance | ≥100MΩ |
| Withstand intensity | 2.0 kV/1 min,50 Hz |
| Temperature coeffi cient | ≤100ppm/℃ |
| Wave content | <0.5% peak |
| Power | <4VA |
| Frequency | 50+5Hz,60+5Hz |
