ND194I-9KI Gold Supplier Single Phase LCD LED Digital Display Panel Energy Meter Electric Current Ampere Meters

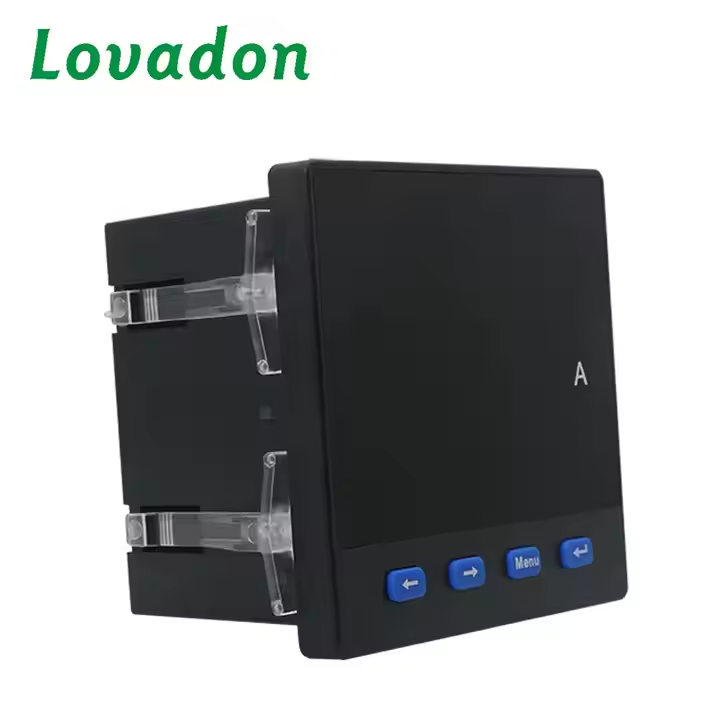

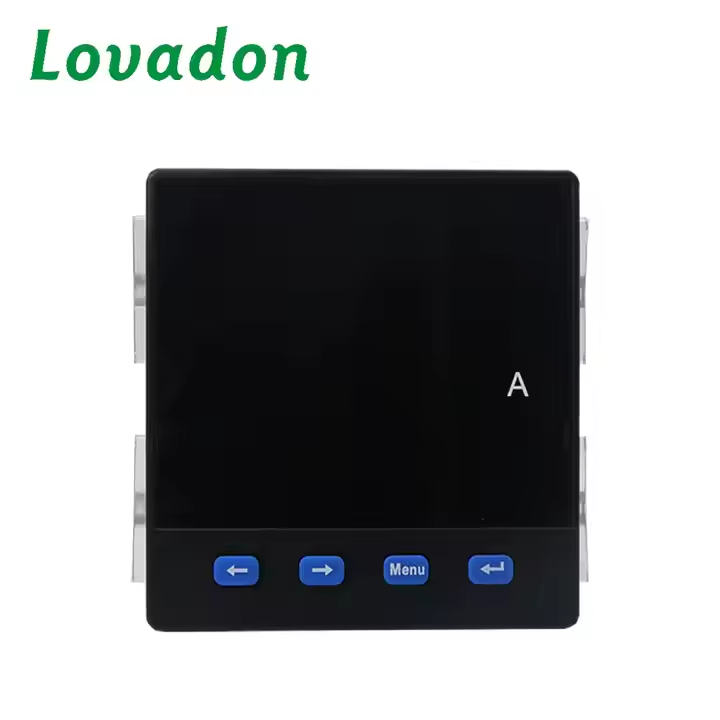

Black rectangular device‌ featuring a ‌blank screen‌ with a letter "A" displayed. The device has a sleek design, incorporating ‌several blue buttons‌ at the bottom, including ‌navigation arrows (↑ ↓) and a "Menu" button‌. Its side view reveals internal components, suggesting it's an ‌electronic control panel‌ or interface. The overall appearance indicates it's likely used for operational control in···

Request A Quick Quote

Product Details

General

Technical Parameters

measuring accuracy	current	0.5level
	Auxiliary power supply	AC/DC 80-270V,AC220V,AC380V,AC100V,DC48V,DC24V
	Connection Mode	signal phase two wires
	Rated Current	AC1A,AC5A,DC20mA,DC1A,DC5A,DC75mA
	Overload	1.2times(continued),10times/5 second(instantaneous)
	Power Consumption	<0.4VA per phase
	Impedance	<20mΩ
	Frequency	45-60Hz
Power supply	Working Range	AC/DC 80-270V,AC220V,AC380V,AC100V,DC48V,DC24V
Power supply	Power Consumption	<4VA
Function module	communication interface	1 way RS~485communication,Modbus-RTU protocol
	Baud Rate	2400~9600bps
	Switch input	4ways
	Switch onput	3ways(capacity:AC250V/1A,DC30V/5A)
	Transmission Onput	3ways(analog onput:0/4-20mA or 0-5/10V)
Safety	Insulation Resistance	>100M
Safety	Ac Electric	AC 2KV
EMC Performance	ESD Electrostatic Discharge	class 4
	Electrical Fast Transient Burst	class 4
	Surge（impact）	class 4

Molel NO. Function	Measurement		Extended Function						Frame size (mm)	Hole Size (mm)
Molel NO. Function	AC Current	DC Current	Switching Intput	Switching Output	Analog Output	Communi cation interface	LED	LCD	Frame size (mm)	Hole Size (mm)
LST12-A	√	―	2	2	1	1	√	―	120*120	111*111
LST12-DA	―	√	2	2	1	1	√	―	120*120	111*111
LST96-A	√	―	2	2	1	1	√	―	96*96	92*92
LST96-DA	―	√	2	2	1	1	√	―	96*96	92*92
LST96H-A	√	―	2	2	1	1	√	―	96*48	92*45
LST96H-DA	―	√	2	2	1	1	√	―	96*48	92*45
LST80-A	√	―	2	2	1	1	√	―	80*80	76*76
LST80-DA	―	√	2	2	1	1	√	―	80*80	76*76
LST72-A	√	―	2	2	1	1	√	―	72*72	68*68
LST72-DA	―	√	2	2	1	1	√	―	72*72	68*68
LST48-A	√	―	2	2	1	1	√	―	48*48	45*45
LST48-DA	―	√	2	2	1	1	√	―	48*48	45*45
