General
Advanced Circuit Breaker: Robust overload & short-circuit protection with isolation function. Features high short-circuit capacity, versatile pin/fork terminals, and flexible 18mm DIN rail or screw mounting. Supports full-range accessories. Ideal for secure, compact installations. ⚡🔧

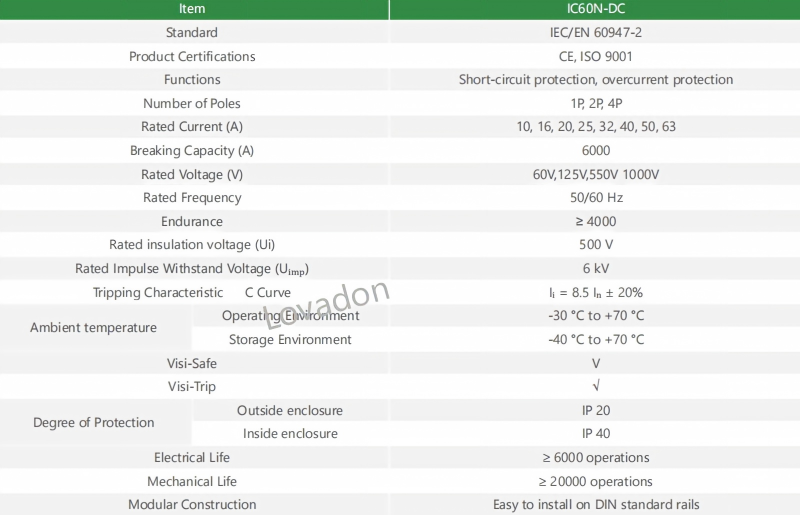

Technical Parameters
| Item Name | IC60N-DC |
| Standard | IEC/EN 60947-2 |
| Product Certifications | CE,ISO9001 |
| Product Function | Short circuit protection,Over current protection |
| Number of Poles | 1P,2P,4P |
| Rated Current(A) | 10,16,20,25,32,40,50,63 |
| Breaking Capacity(A) | 6000 |
| Rated Voltage(V) | 60V,125V,550V,1000V |
| Rated Frequency | 50/60HZ |
| Endurance | ≥4000 |
| Rated insulation voltage (Ui) | 500V |
| Rated impulse withstand voltage (Uimp) | 6kV |
| Tripping characteristic C Features | li=8.5In±20% |
| Ambient temperature Operating environment | -30°℃~+70℃ |
| Ambient temperature Storage environment | -40°℃~+70℃ |
| Visi-Safe | V |
| Visi-Trip | √ |
| Level of protection Out of the cabinet | IP20 |
| Level of protection in the cabinet | IP40 |
| Electrical Life | No less than 6000 operations |
| Mechanical Life | No less than 20000 operations |
| Mechanical Life | Easy to install on DIN standard rails |
