DC MCB

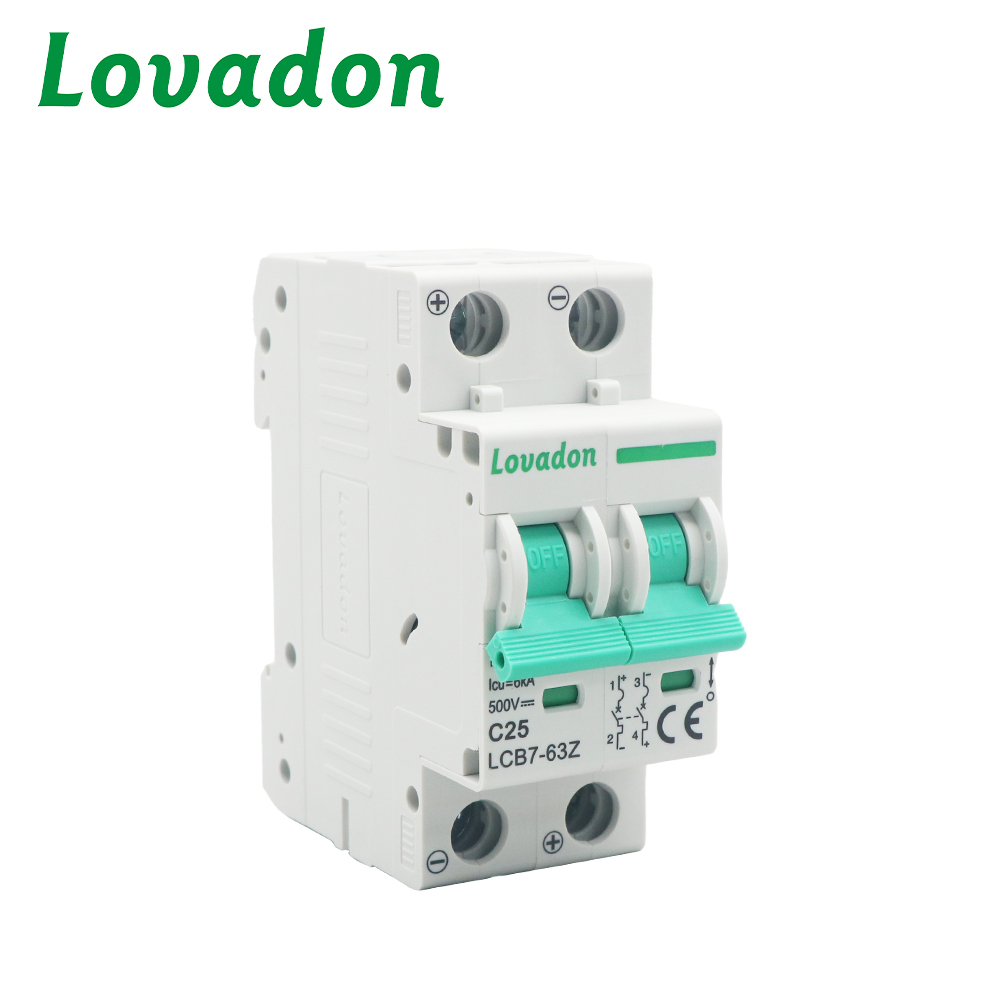

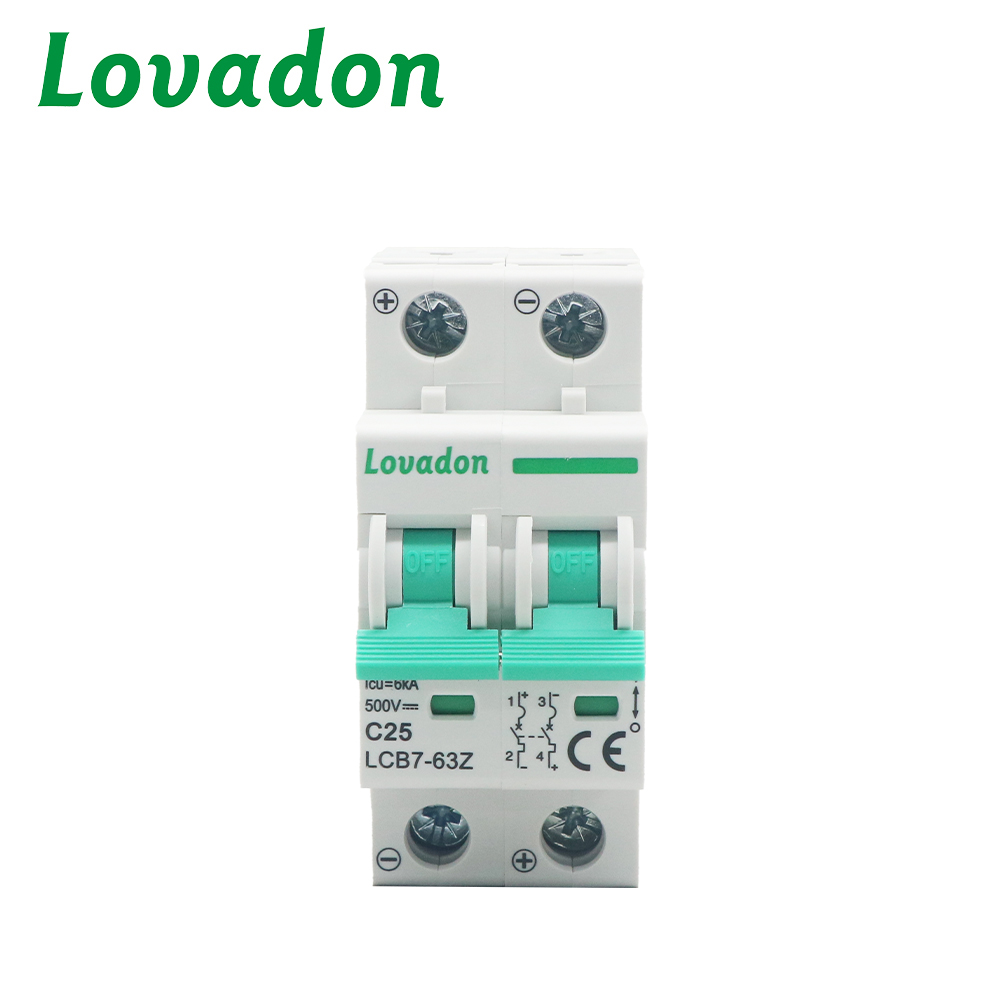

LCB7-63Z 2P DC MCB 2 Pole 500VDC 63A 6KA Breaking Capacity Thermo Magnetic Trip for Industrial and Photovoltaic Use

The LCB7 series DC circuit breaker complies with IEC/EN60947 - 2 standard. It offers overcurrent and short - circuit protection via a thermo - magnetic trip. Available in 1P, 2P, 4P poles, with rated currents from 1A to 63A and rated voltages up to 1000VDC (4P). It has a 6000A breaking capacity, IP20 protection, and can operate in - 5℃ to +40℃ with max 95% humidity. Suitable for cable/pin - type/fork - type busbar connections, it moun···
Request A Quick Quote

General

The LCB7 series DC circuit breaker complies with IEC/EN60947 - 2 standard. It offers overcurrent and short - circuit protection via a thermo - magnetic trip. Available in 1P, 2P, 4P poles, with rated currents from 1A to 63A and rated voltages up to 1000VDC (4P). It has a 6000A breaking capacity, IP20 protection, and can operate in - 5℃ to +40℃ with max 95% humidity. Suitable for cable/pin - type/fork - type busbar connections, it mounts on a 35mm DIN rail.

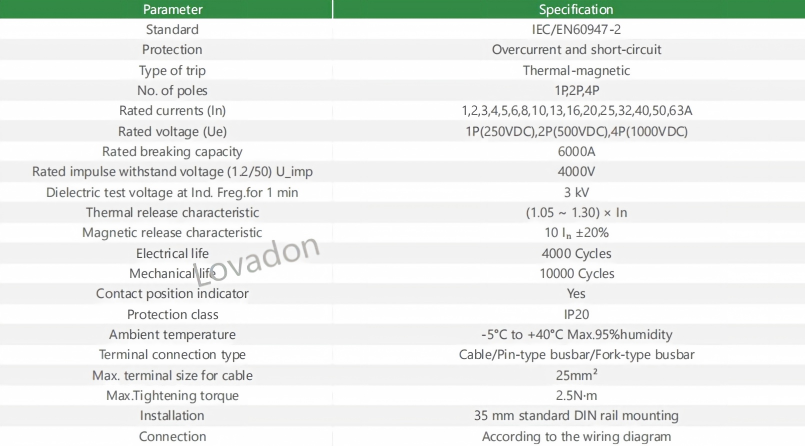

Technical Parameters

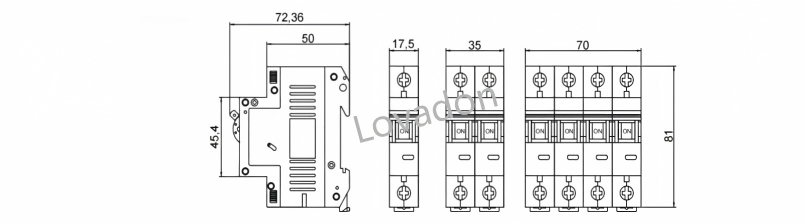

Dimensions (mm)
