General

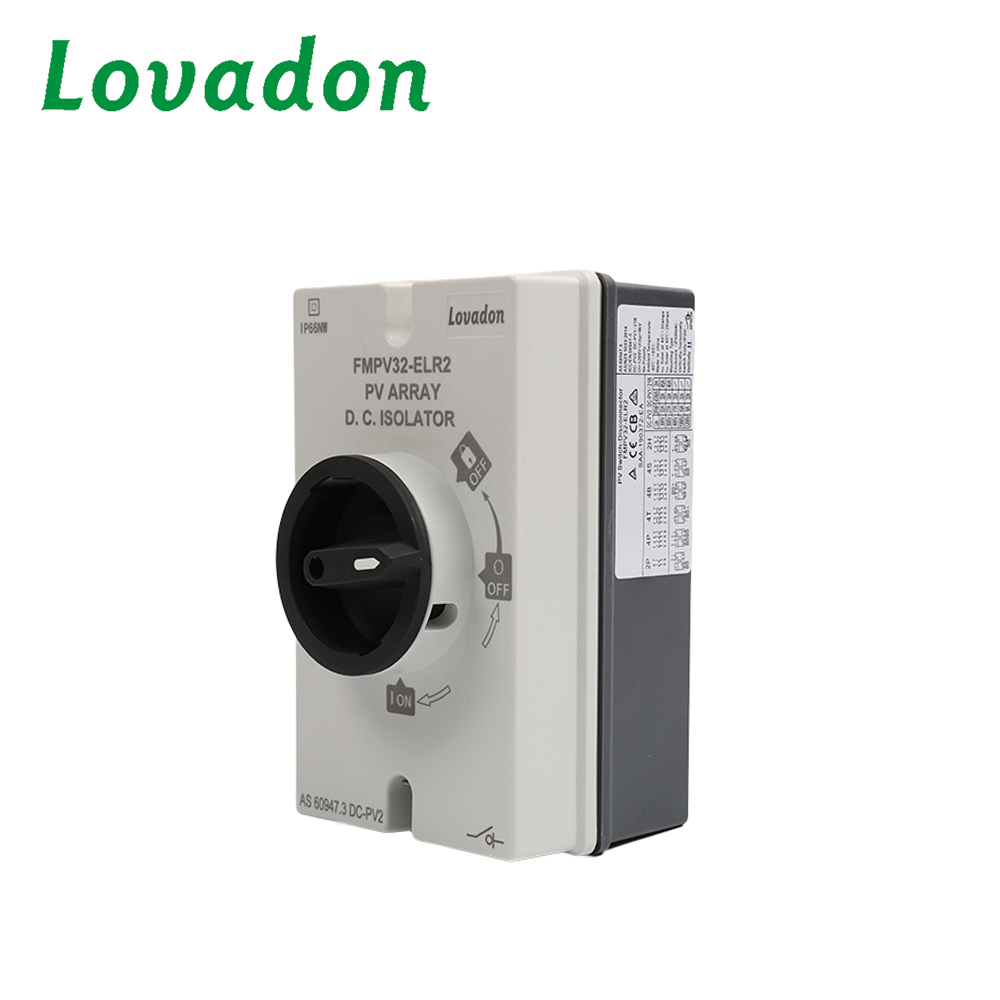

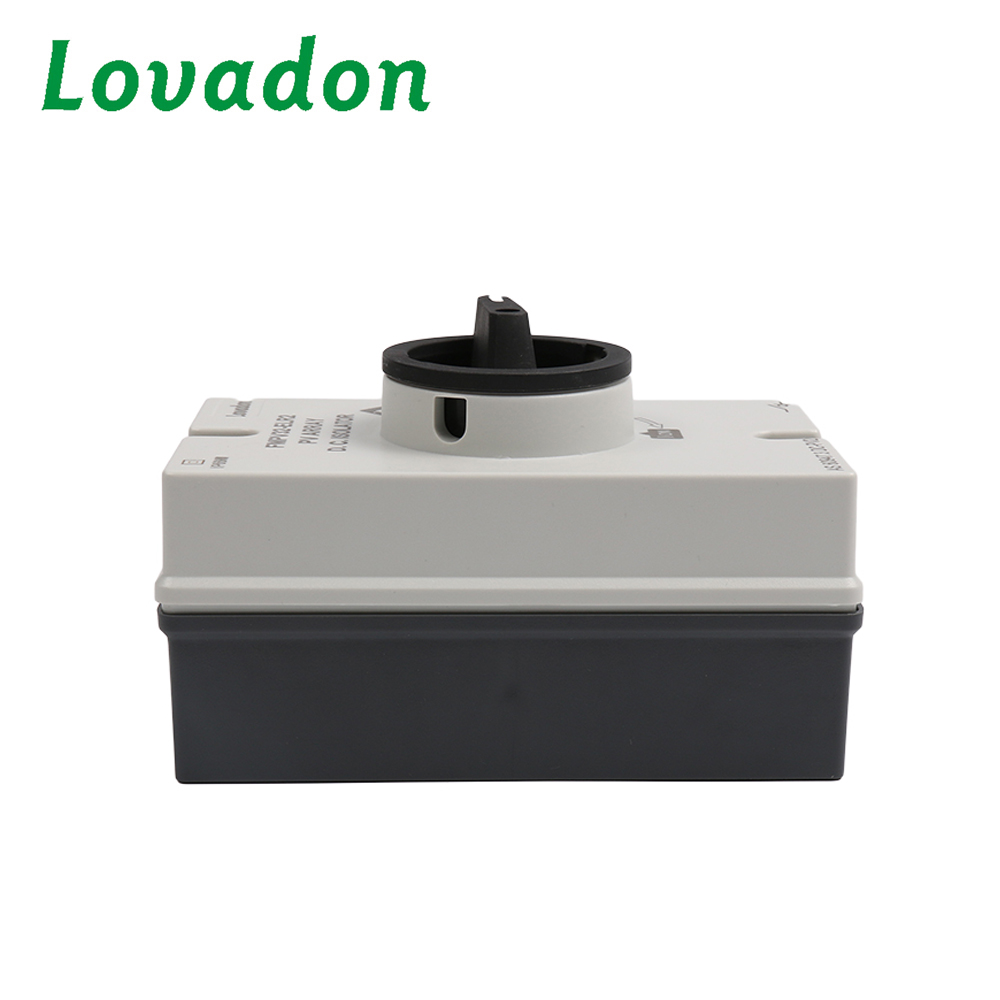

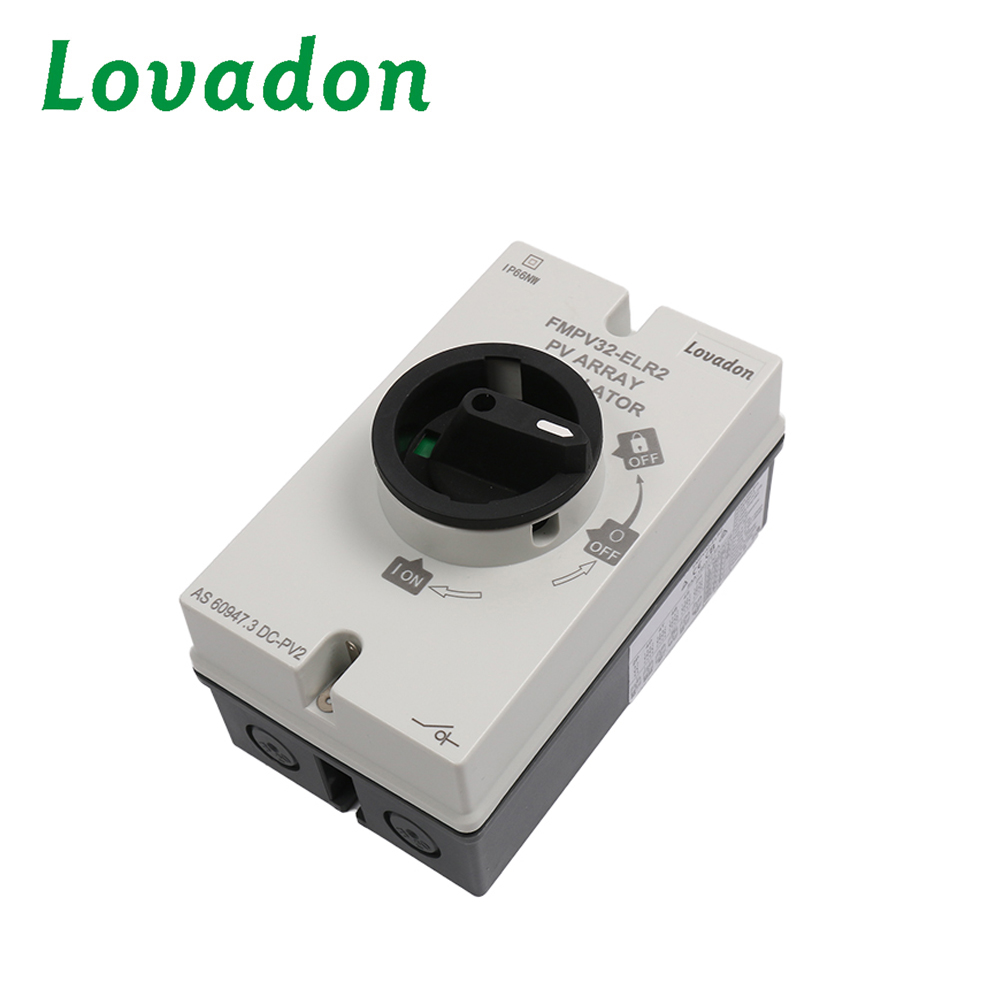

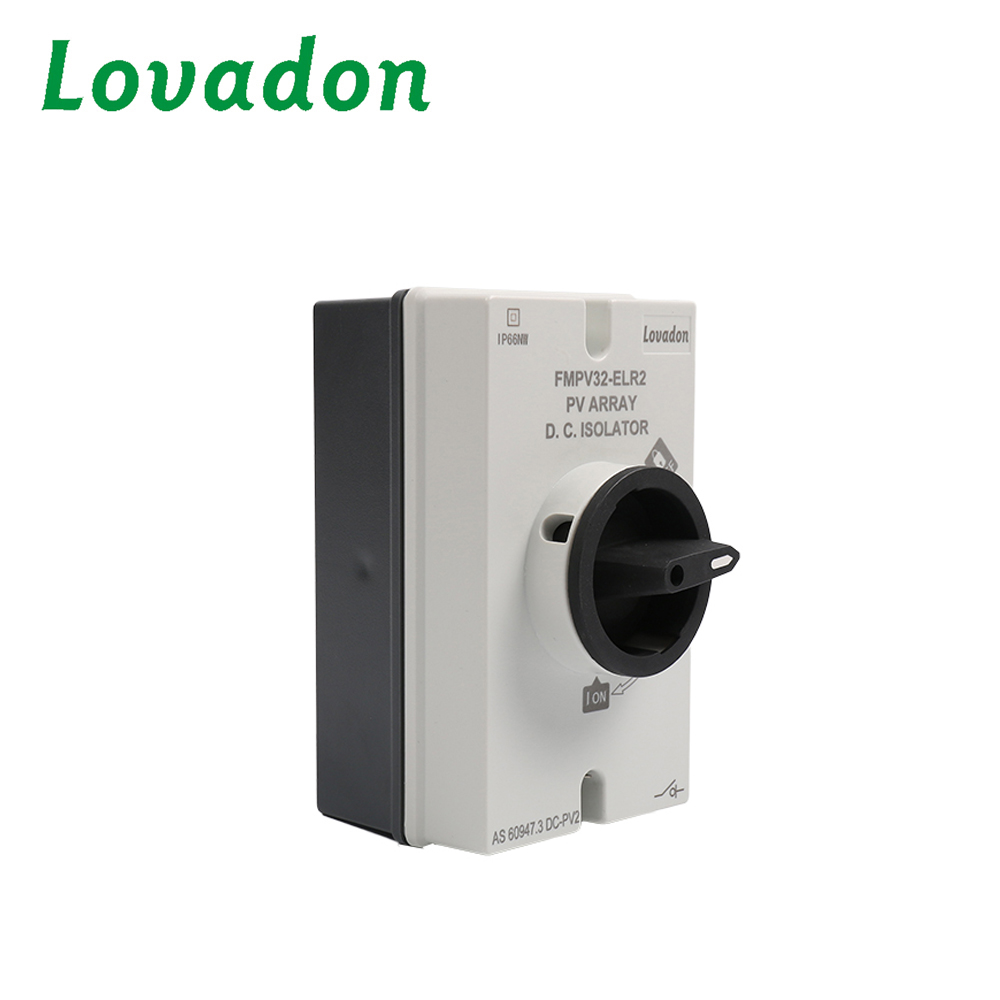

FMPV Series DC Isolator Switch in plastic enclosure is applied to 1 ~20 KW residential or commercial photovoltaic system, placed between photovoltage modules and inverters. Arcing time is less than 8ms, that keeps solar system more safe. To ensure its stability and long service life, our products are made by components with optimum quality. Max voltage is up to 1200VDC. It holds a safe lead among similar products.
• IP66 rated enclosure, UV Resistant
• 4 x M20 knock holes
• The handle can be padlocked in the "OFF" position
• MC4 plugs can be selected for Convenient connection and space saving
• 2 Pole, 4 Poles are viable (Single I Double String)
• Standard: IEC60947-3, AS60947.3
• DC-PV2, DC-PV1, DC-21 B
• 16A, 25A, 32A, 1200V DC
Technical Parameters
| Standard | IEC60947-3, AS60947. 3 |
| Type | FMPV16-ELR2, FMPV25-ELR2, FMPV32-ELR2 |
| Function | Isolator, Control |
| Utilization category | DC-PV2/DC-PV1 /DC-21 B |
| Pole | 4P |
| Rated frequency | DC |
| Rated operational voltage (L/e) | 300V, 600V, 800V, 1000V, 1200V |
| Rated operational voltage (/e) | See the next page |
| Rated insulation voltage (L//) | 1200V |
| Conventional free airthemal currents th) | // |
| Conventional enclosed thermal current( Ithe) | Same as le |
| Rated short-time withstand currentf lew) | 1kA, 1s |
| Rated impulsed withstand voltage( Uimp) | 8. OkV |
| Overvoltage category | II |
| Suitability for isolation | Yes |
| Polarity | No polarity, "+〃and"—"polarities could be interchanged. |
| Mechanical life | 18000 |
| Electrical life | 2000 |
| ingress protection Enclosure | IP66 |
| Storge temperature | -40°C 〜+85 °C |
| Mounting Type | Vertically or horizontally |
| Pollution degree | 3 |
| Type number | Type | 300V | 600V | 800V | 1000V | 1200V | Poles in series | Number of strings |
| 2P | FMPV16 | 16A | 16A | 12A | 8A | 6A | 2 | 1 |
| FMPV25 | 25A | 25A | 15A | 9A | 7A | 2 | 1 |
| FMPV32 | 32A | 27A | 17A | 10A | 8A | 2 | 1 |
| 4P | FMPV16 | 16A | 16A | 12A | 8A | 6A | 2 | 2 |
| FMPV25 | 25A | 25A | 15A | 9A | 7A | 2 | 2 |
| FMPV32 | 32A | 27A | 17A | 10A | 8A | 2 | 2 |
| 4T | FMPV16 | 16A | 16A | 16A | 16A | 16A | 2 | 1 |
| FMPV25 | 25A | 25A | 25A | 25A | 25A | 2 | 1 |
| FMPV32 | 32A | 32A | 32A | 32A | 32A | 2 | 1 |
| 4B | FMPV16 | 16A | 16A | 16A | 16A | 16A | 2 | 1 |
| FMPV25 | 25A | 25A | 25A | 25A | 25A | 2 | 1 |
| FMPV32 | 32A | 32A | 32A | 32A | 32A | 2 | 1 |
| 4S | FMPV16 | 16A | 16A | 16A | 16A | 16A | 4 | 1 |
| FMPV25 | 25A | 25A | 25A | 25A | 25A | 4 | 1 |
| FMPV32 | 32A | 32A | 32A | 32A | 32A | 4 | 1 |
| 2H | FMPV16 | 35A | 35A | / | / | / | 2 | 1 |
| FMPV25 | 40A | 40A | / | / | / | 2 | 1 |
| FMPV32 | 45A | 40A | / | / | / | 2 | 1 |

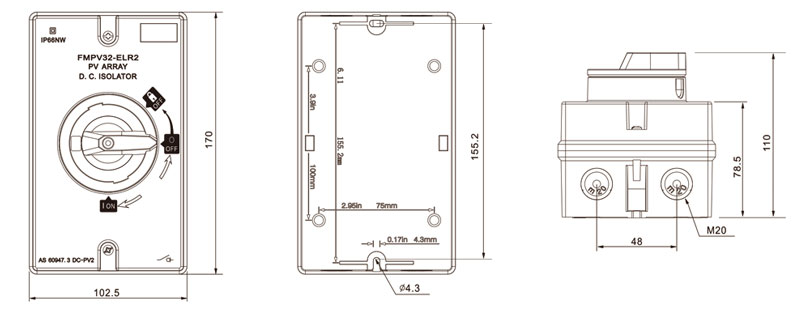

Dimensional drawing

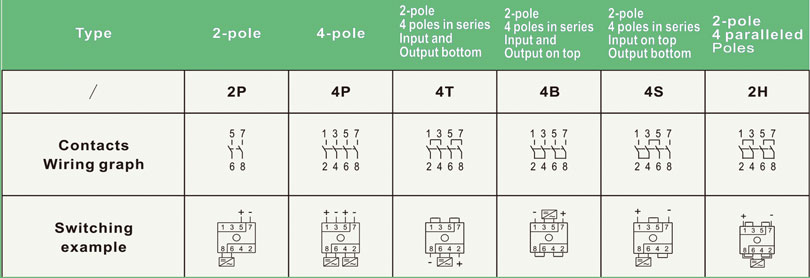

Wiring Diagram
