  • DC MCCB LPM1Z
  • DC MCCB LPM1Z
DC MCCB

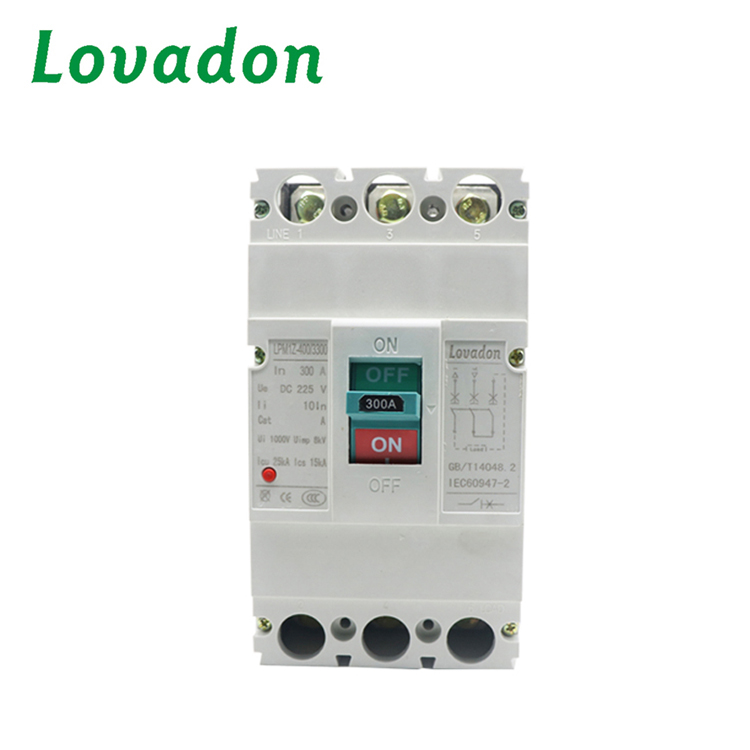

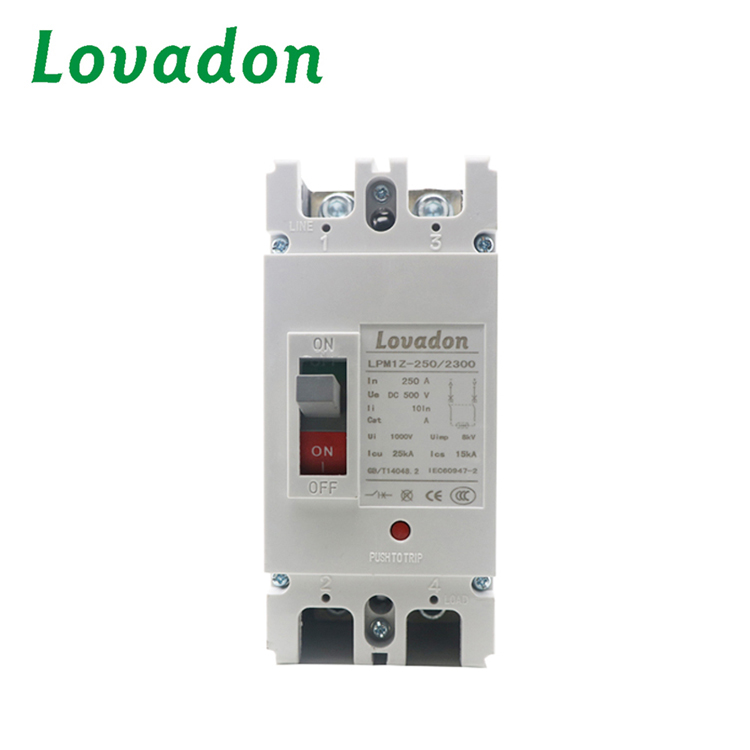

DC MCCB LPM1Z

Technical Parameters

ModelLPM1Z-125LPM1Z-250LPM1Z-400LPM1Z-630LPM1Z-800LPM1Z-1250
Rated Continuous current1252504006308001250
Rated Current In (A)16,20,25,32
40,50,63,
80,100,125
100,125,140,
160,
180, 200, 225,250
250, 315,
350,400
400,500,630630,700,800800,1000,1250
Rated Operating Voltage Ue(V)DC500, 550, 750, 1000
Rated Insulation Voltage UI(V)10001500
Uimp(KV)8
Test Voltage One Miute(V)3500
Breaking Capacity (KA)
 Icu(1cs=75%Icu)

LMHLMHLMHLMHLMHLMH
250V253550355065355065355065506580506580
500V252550353565353565353565505080505080
750V251550352565352565352565503580503580
1000V251050351565351565351565502080502080
Mechaanical lifeTimes700070004000400025002000
Electric LifeTimes2000200010001000800600
Breaking Times(ms)202020202020
Installation LocationAny place
Isolator capacityyes
StandardIEC 60947-2,IEC60947-1,GB 14048,GB 14048-2
Temperature(°C)‘-25°C-50°C
Protection DegressIp20
AccessoryOF/SD/MX
Arcing Distance(mm)≥50
