  • PV-32 fuse
  • PV-32 fuse
Fuse

PV-32 fuse

PV-32 32A 1000V DC (10*38)PV-50 50A 1500V DC (14*51)PV-32L 50A 1500V DC (10*85)(14*85)PV-63 63A (22*58)Rated Voltage:1000V.dc 1500V.dcClass of Operation:gPVStandard:GB/T13539.6 IEC60269-6Technical ParametersNOproduct modelapplicable fuse line sizerated voltage(V)rated current(A)overall dimension(mm)A1A2BH1H218068RT18-20(X)8.5*31.550020808218607818069RT18-32(X)10*3850032798118618018070RT18-63(X)14*51500631031052780110
Request A Quick Quote

General

PV-32 32A 1000V DC (10*38)

PV-50 50A 1500V DC (14*51)

PV-32L 50A 1500V DC (10*85)(14*85)

PV-63 63A (22*58)

Rated Voltage:1000V.dc 1500V.dc

Class of Operation:gPV

Standard:GB/T13539.6 IEC60269-6

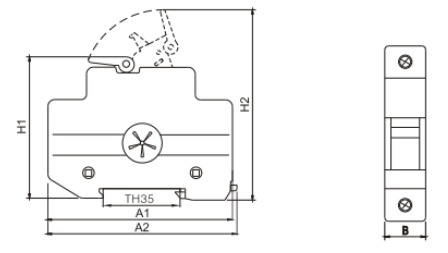

Technical Parameters

NOproduct model applicable fuse line sizerated voltage(V)rated current(A)overall dimension(mm)
A1A2BH1H2
18068RT18-20(X)8.5*31.5500208082186078
18069RT18-32(X)10*38500327981186180
18070RT18-63(X)14*51500631031052780110
