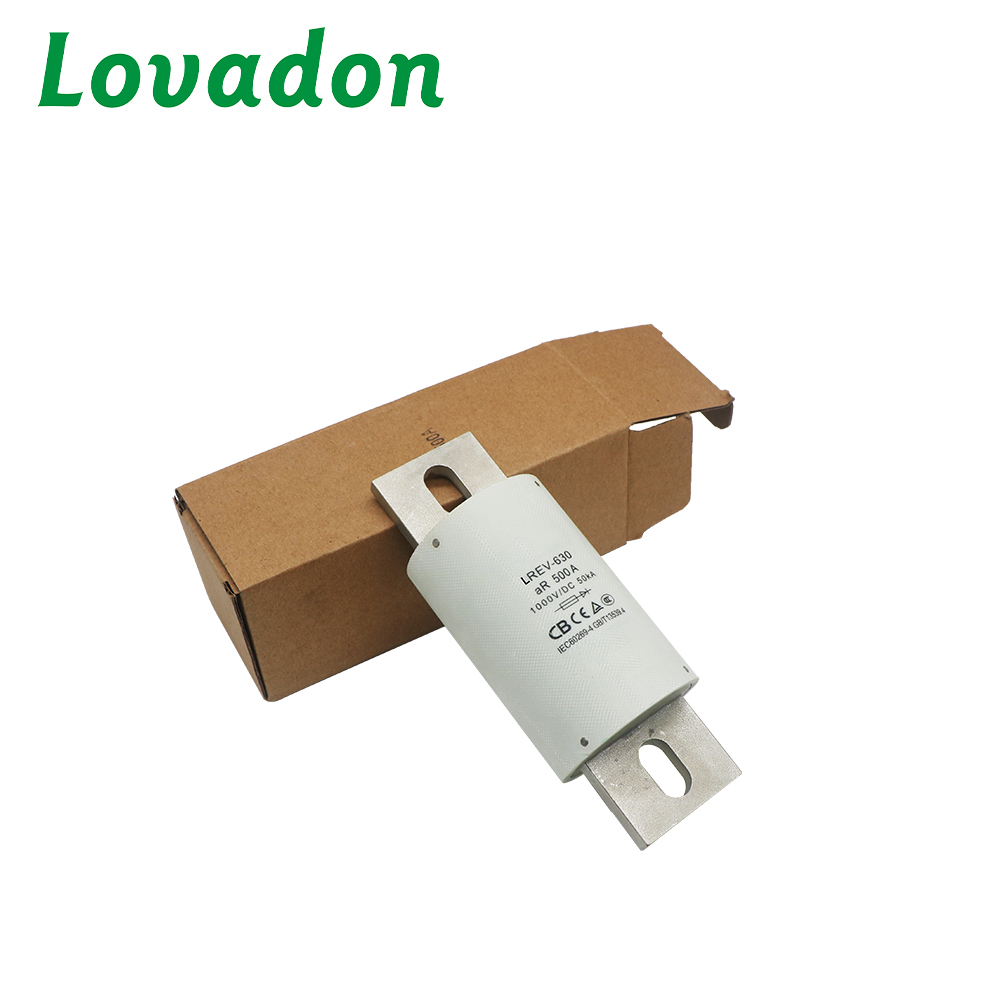

  • 2.jpg

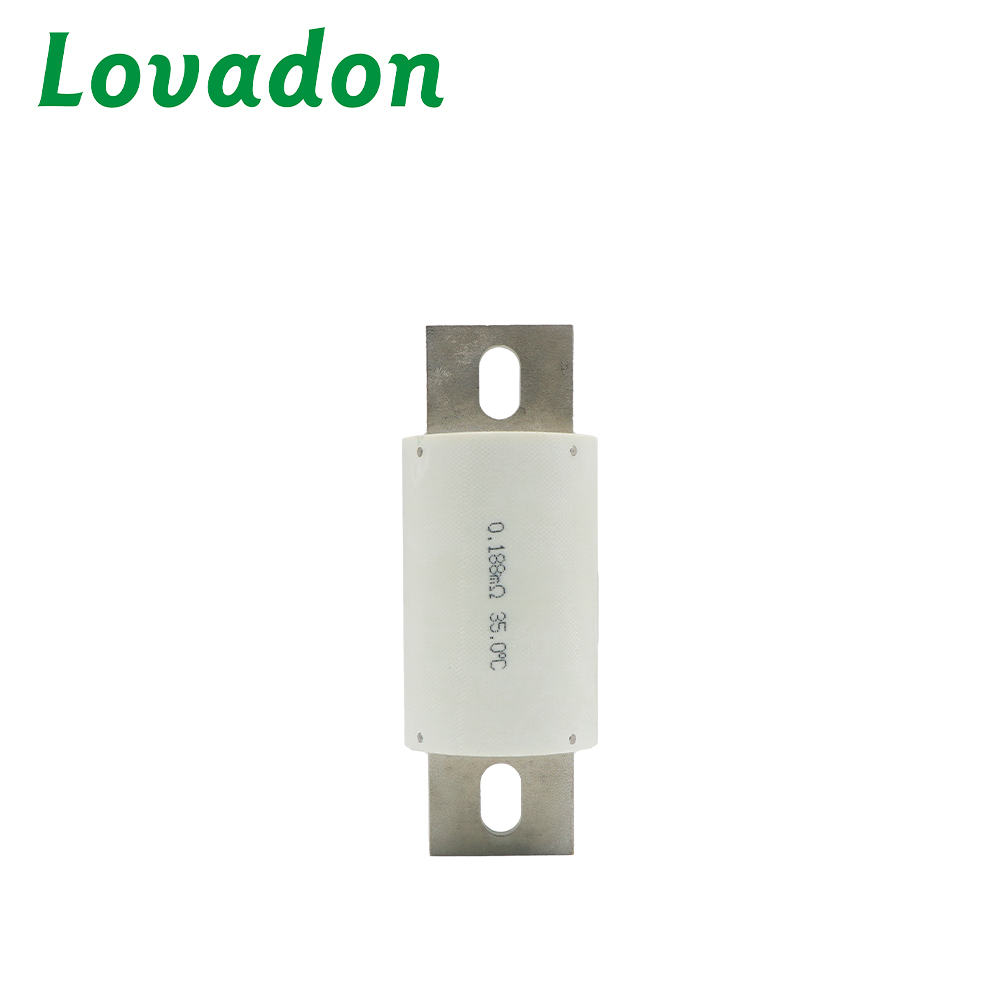

  • 4.jpg

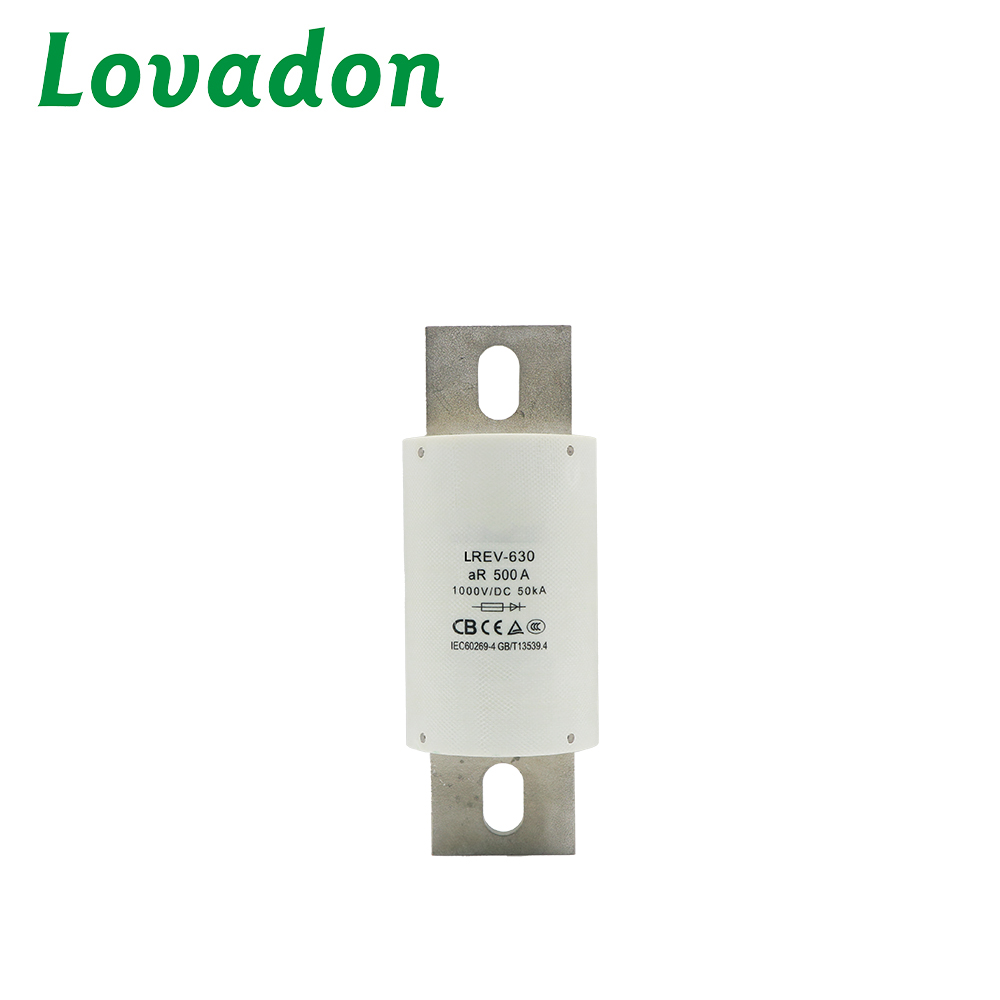

  • 3.jpg
  • LREV-630 DC1000V 500A Fast Blow Fuse 50KA Breaking Capacity AR Protection for EV Charging Station IEC Standard
  • 2.jpg
  • 4.jpg
  • 3.jpg
Fuse

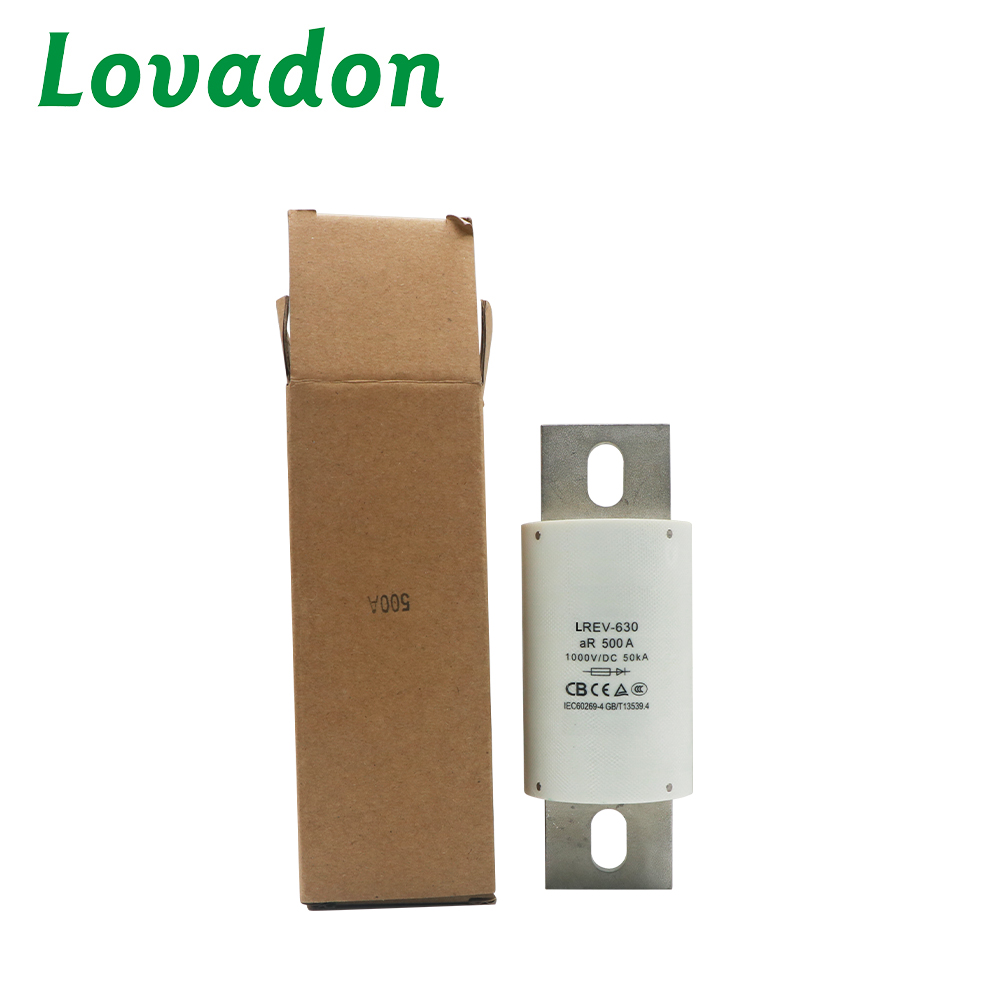

LREV-630 DC1000V 500A Fast Blow Fuse 50KA Breaking Capacity AR Protection for EV Charging Station IEC Standard

This series of products can withstand thermal shock, current shock, and chemical load, and can be used for short-circuit, overload, and backup protection of vehicle components and equipment such as power batteries and their management systems, motor drivers, converters, vehicle wiring, and charging equipment.Implementation standards: ISO8820, GB/T13539.4, IEC60269-4.Applications● Rated voltage: DC500V–DC1000V ● Rated current: 200–63···
Request A Quick Quote

General

This series of products can withstand thermal shock, current shock, and chemical load, and can be used for short-circuit, overload, and backup protection of vehicle components and equipment such as power batteries and their management systems, motor drivers, converters, vehicle wiring, and charging equipment.

Implementation standards: ISO8820, GB/T13539.4, IEC60269-4.

Applications

● Rated voltage: DC500V–DC1000V ● Rated current: 200–630A

● Breaking capacity: 10–100kA ● Protection feature: aR

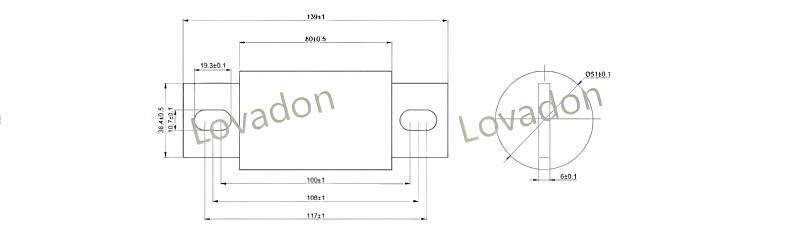

Overall dimension （mm）
