Fuse

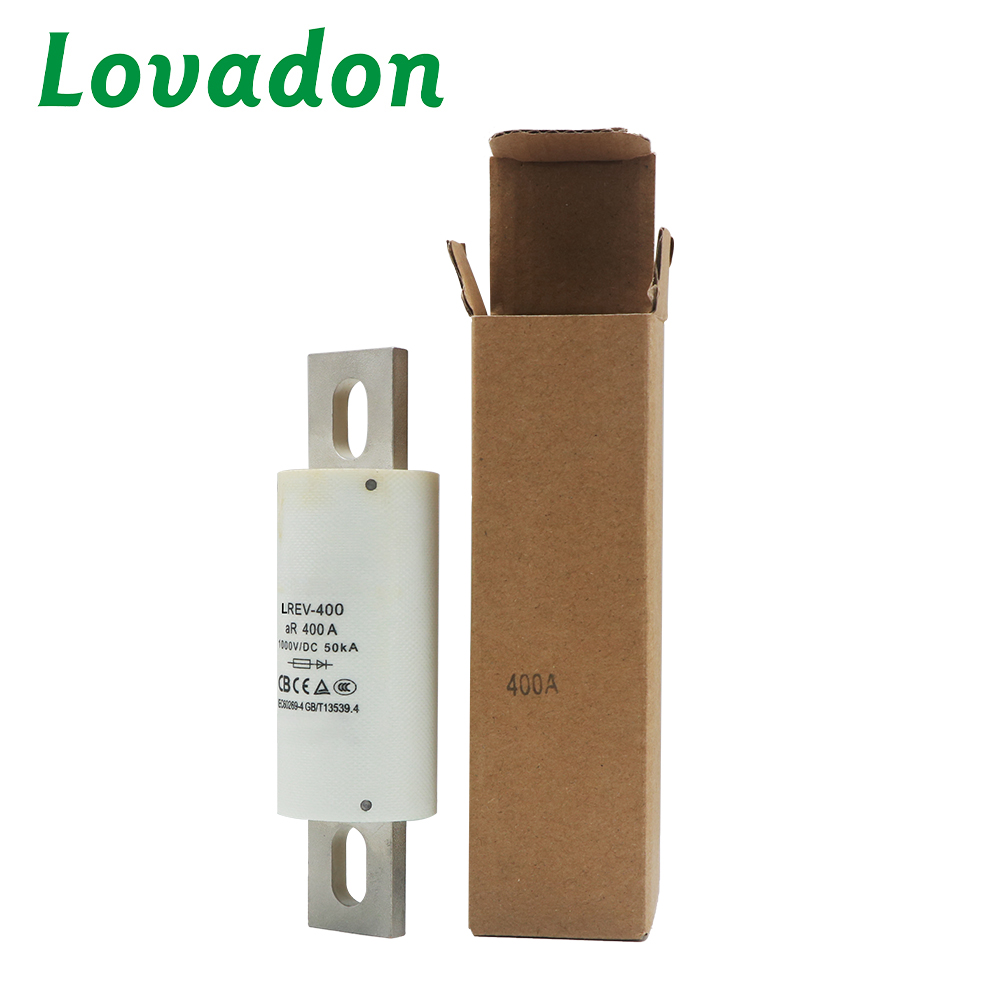

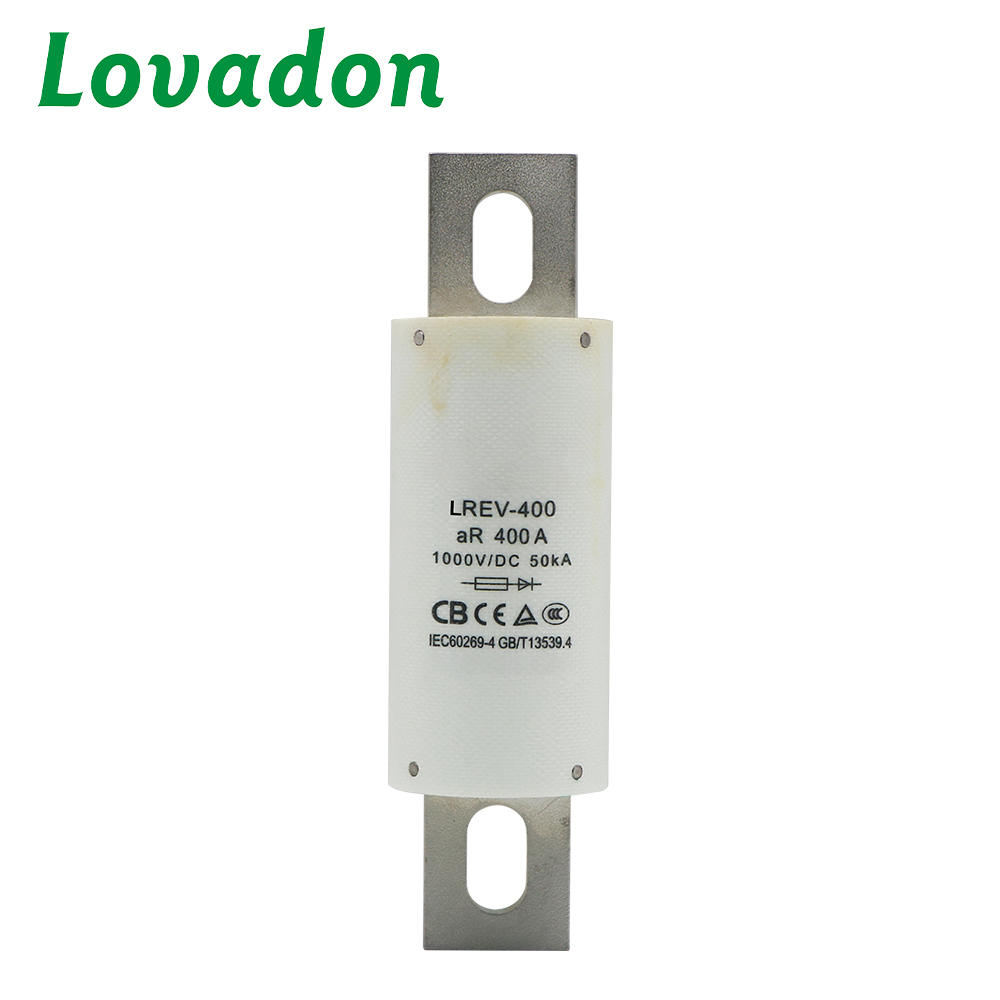

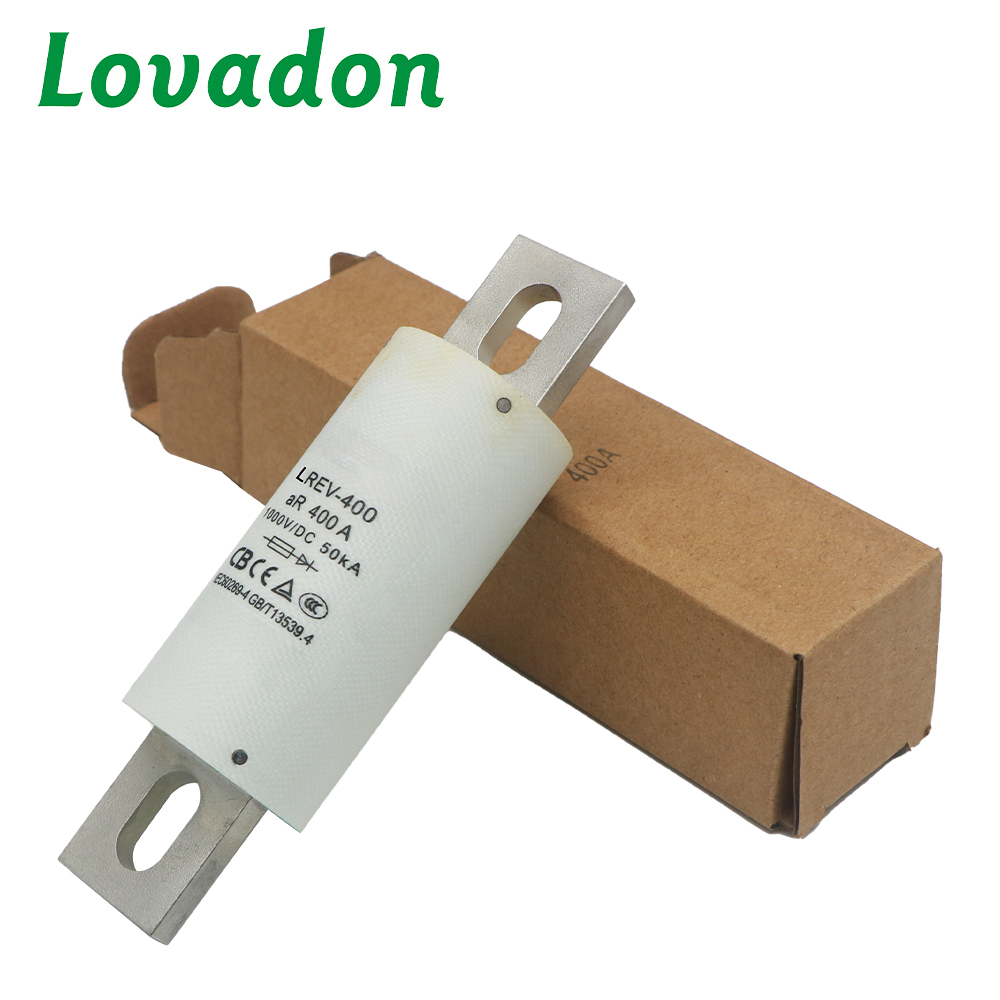

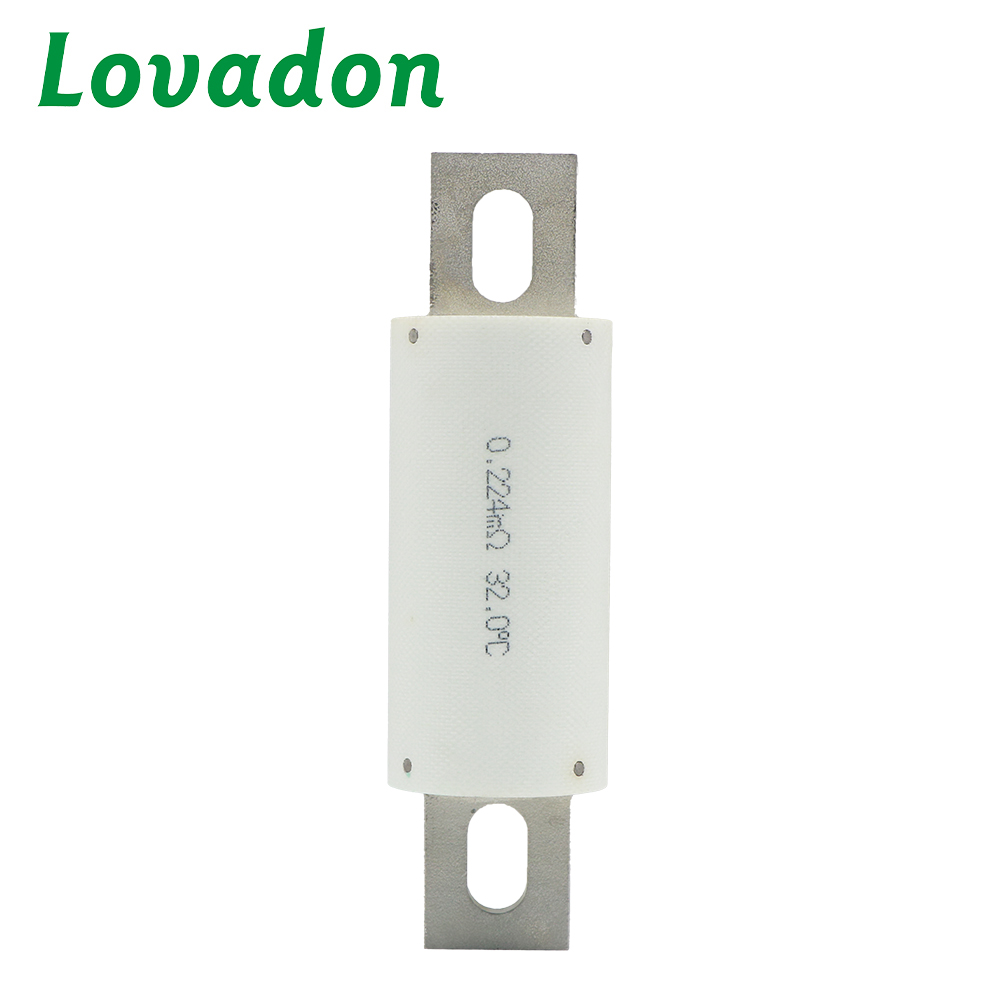

LREV-400 50KA Breaking Capacity DC1000V 400A Fast Blow Copper Fuse AR Protection for EV Charging Pile IEC Standard

This series of products can withstand thermal shock, current shock, and chemical load, and can be used for short-circuit, overload, and backup protection of vehicle components and equipment such as power batteries and their management systems, motor drivers, converters, vehicle wiring, and charging equipment.Implementation standards: ISO8820, GB/T13539.4, IEC60269-4.Applications● Rated voltage: DC500V–DC1000V ● Rated current: 50–400···
Request A Quick Quote

General

This series of products can withstand thermal shock, current shock, and chemical load, and can be used for short-circuit, overload, and backup protection of vehicle components and equipment such as power batteries and their management systems, motor drivers, converters, vehicle wiring, and charging equipment.

Implementation standards: ISO8820, GB/T13539.4, IEC60269-4.

Applications

● Rated voltage: DC500V–DC1000V ● Rated current: 50–400A

● Breaking capacity: 10–50kA ● Protection feature: aR

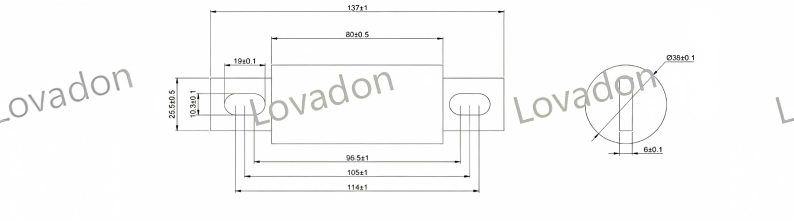

Overall dimension （mm）
