General

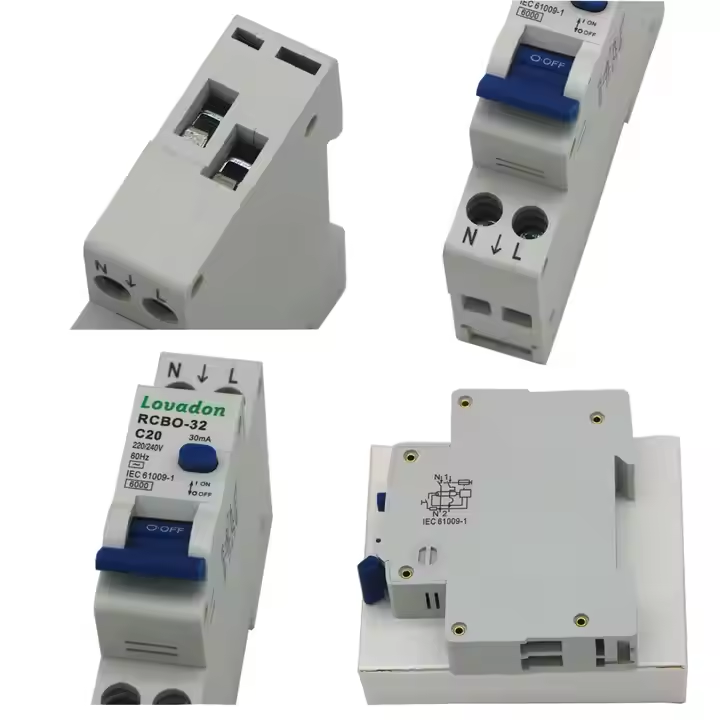

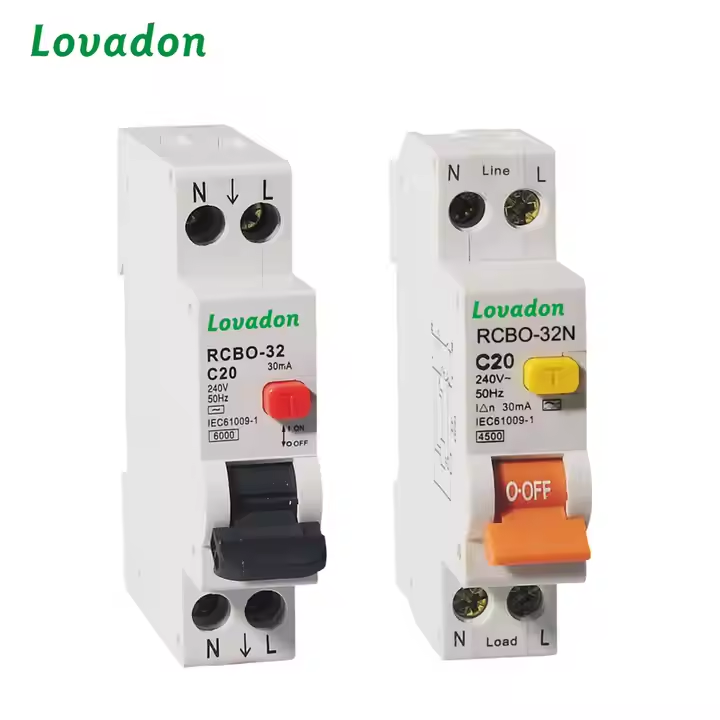

The RCBO-32/RCBO-32N complies with GB16917.1 and IEC61009 standards. It features a 1P+N pole configuration with rated currents ranging from 6A to 32A. The rated operating currents are 30mA, 100mA, and 300mA. It operates at AC240V with a residual operating current scope of 0.5lΔn-In and a residual current off-time of ≤0.3s. It's of Type A, AC with an ultimate short-circuit breaking capacity of 6000A.The endurance is ≥6000 times, ensuring long-term reliability. The terminal protection is rated IP20 for safety.

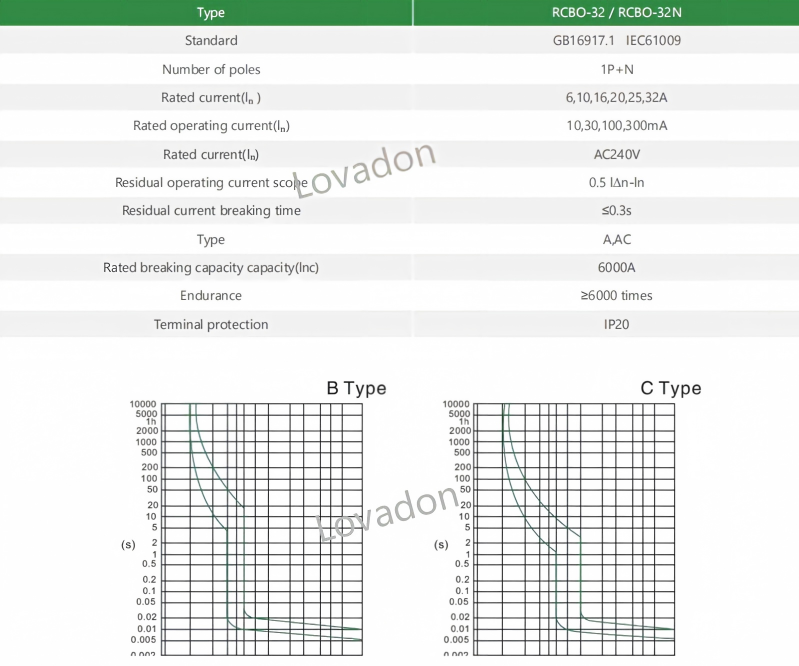

Technical Parameters
