General

Microcomputer control device uses a dedicated timing chip, LCD liquid crystal display, with timing accuracy, time control wide range of advantages. Widely used in street lamps, neon signs, advertising signs lights, production equipment, radio and television equipment and other needs of the regular opening and closing of electrical equipment and appliances places.

Describe the specifications

1.35mm standard rail installation, off plot small, beautiful appearance, is KG316T replacement products.

2.Real-time control, 7 days or 24 hours preset cycle timing control.

3.All the way to output, 20 segments on and off timing settings (24 hours), (140 groups on / off program a week).

4.The longest set 23:99 hours, the shortest time 1 minute.

5.LCD display, high capacity rechargeable battery backup, power outage as usual.

6.12/24 hours switch, the default is 24 hours.

7.This product non-RC power mode.

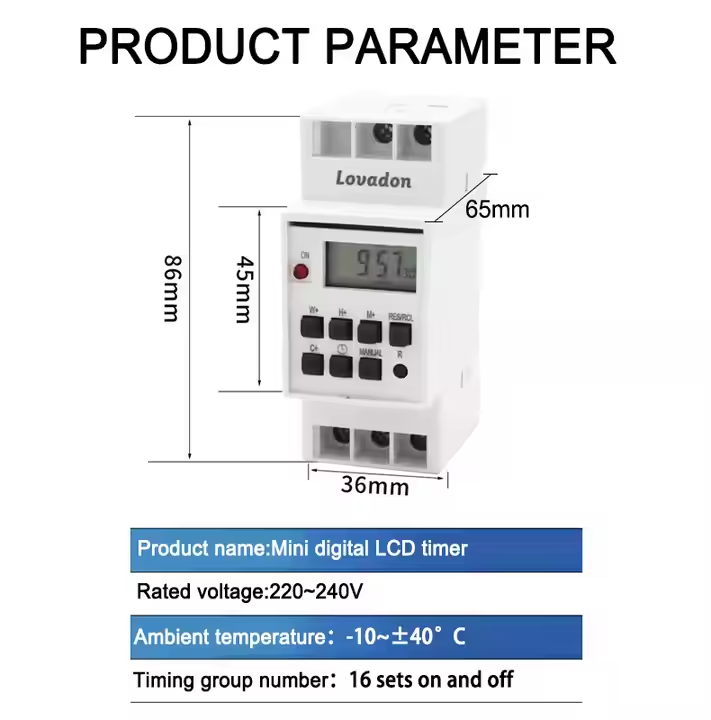

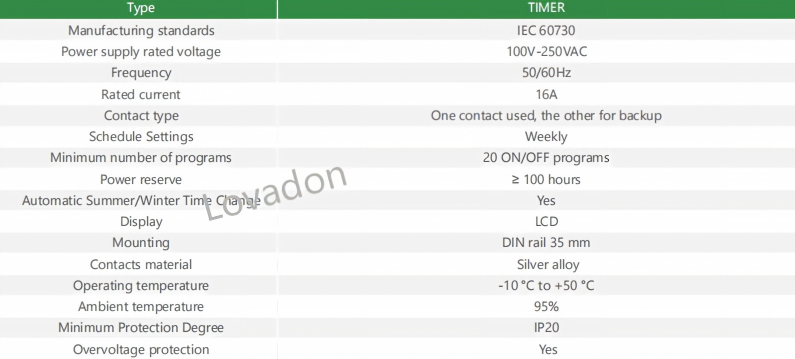

Technical Parameters
